Murray 107.280341 (7800669A) - Craftsman 28" Rear Engine Rider, 12.5HP (2011) (Sears) Front End Assembly Group Ricambi

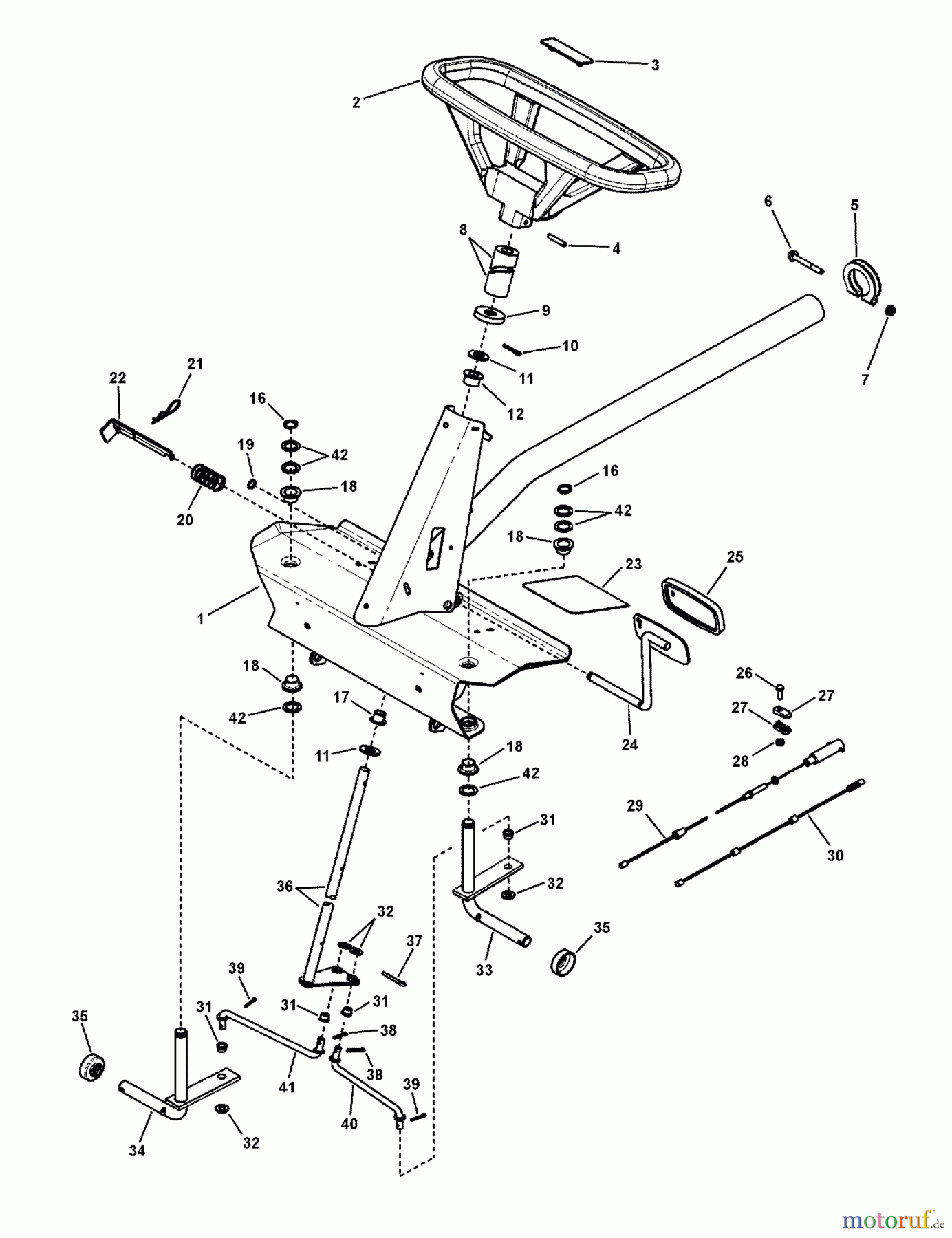

Front End Assembly Group 107.280341 (7800669A) - Craftsman 28" Rear Engine Rider, 12.5HP (2011) (Sears)

Murray Reitermäher 107.280341 (7800669A) - Craftsman 28
PosizioneArticolo numeroDescrizione
1 BS7054378YPRAHMEN VORN SCHMAL
2 BS7501813YPLENKRAD KOMPL.
3 BS7103982YPPLATTE, LENKRAD
4 BS7013862YPROLL PIN, 1/4X1-1/2
5 BS7031100YPSCHLAUCHKLEMME
6 BS7090358YPHHCS, 5/16F X2-1/2
7 BS7010969YPMUTTER, 5/16F ZP
8 BS7023667YPFORMVERKL. LENKUNG
9 BS7023671YPCOVER, STEERING SHAFT
10 BS7090296YPCOTTER PIN, 3/16X1 YZ
11 BS7090183YPFW, .656X1.312X.094
12 BS7046158YPBUSHING, STEERING, UP
16 BS7010746YPHALTERING
17 Murray NYLONBUCHSEBS7010694YPNYLONBUCHSE
18 BS7010986YPLAGER, NYLON
19 BS7010776YPRING, 1/2 DREHUNG
20 BS7015444YPFEDER, PARKHEBEL
21 BS7011714YPFEDERSPLINT, 2-1/4
22 BS7038243DYPSPERRKLINGE, PARKBREMSE
23 BS7014049YPFU?AUFLAGE KURZ
24 BS7047888BMYPKUPPLUNGSPEDAL
25 BS7011815YPPEDALGUMMI
26 BS7091495SMSECHSK.SCHR.1/4CX3/4GR5
27 BS7034174YPCONNECTOR, CABLE
28 BS7090372SMSECHSHANTM.SELBSTSICH.
29 BS7101192YPCABLE, BRAKE, SNAP-IN
30 BS7022449YPCABLE, CLUTCH (54.32)
31 BS7013321YPBUCHSE, VERB.STANGE
32 BS7090122YPWASHER, 3/8" FLAT SAE
33 BS7041687YPKING PIN, LH
34 BS7041688YPKING PIN, RH
35 BS7031038YPCAP, DUST, YELLOW
36 BS7046232YPSTEERING SHAFT
37 BS7090753YP
38 BS7090364YP
39 BS7090365YPPIN, 1/8X3/4 SPLINT
40 BS7013023YPVERBINDUNGSSTANGE LI.
41 BS7012933YPVERBINDUNGSSTANGE RE.
42 Murray FW, .77X1.13X.06BS7010935SMFW, .77X1.13X.06
