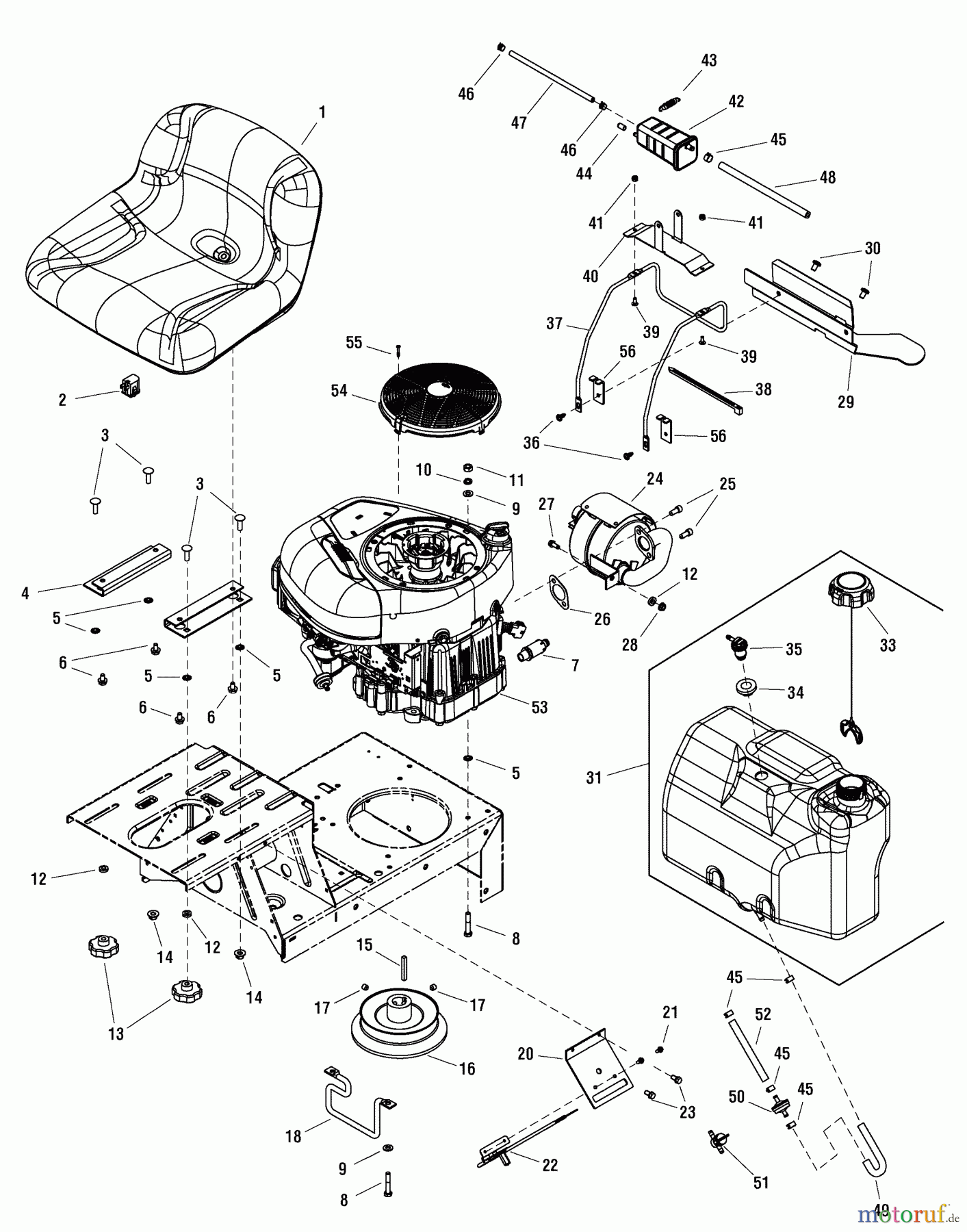

Engine & Seat Group 107.280341 (7800669A) - Craftsman 28" Rear Engine Rider, 12.5HP (2011) (Sears)

Murray Reitermäher 107.280341 (7800669A) - Craftsman 28
PosizioneArticolo numeroDescrizione
1 BS885172YPSEAT, V-2405 SERIES
2 BS7023354YPSWITCH, SEAT
3 BS7091303YPRHSSNB, 5/16CX1 GR5
4 BS7075018BMYPSITZHALTER
5 BS7011791SMHALTEBOLZEN, 5/16
6 BS7091038YPBOLTZEN, 5/16-18X1/2
7 BS7027972SMOIL VALVE ASSY.
8 BS7091513YPSCHRAUBE, 5/16-24X1-3/4
9 BS7090188SMFW, .34X.69X.08 YZ
10 BS7091315SMSLW, .32X.58X.08 YZ
11 BS7091297SMMUTTER, 5/16F GR5 YZ
12 BS7013849YPDISTANZRING 623 OD
13 BS7023735YPKNOB FLUTED,5/16-18
14 BS7090951SMHCLN, LARGE, 5/16C BZ
15 BS7010210SMKEY, SQUARE, 1/4X2
16 BS7072658YPDRIVE DISC, STEEL
17 BS7090132YPHRSS, 3/8C X3/8 GR5
18 BS7017653YPSCHUTZ ANTRIEBSRIEMEN
20 BS7033470YPPLATTE, GESCHW. KONTROLLE
21 BS7090913SMSCHRAUBE SELBSTSCHN.TORX, #10C
22 BS7022751YPTHROTTLE CONTROL
23 BS7090539YPSCHRAUBE, 1/4-20X1/2
24 BS7074453YPMUFFLER / HEAT SHIELD
25 BS7091738SMSHCS, 5/16C X3/4 GR8
26 BS7015352SMGASKET, EXHAUST
27 BS7090362YPSCHRAUBE, 1/4-20X5/8
28 BS7091065SM
29 BS7301145BMYPBRKT, MOUNT TANK, RER
30 BS7091542SMPHST, TORX 5/16C
31 BS7105041YPASSY, FUEL TANK, RER
33 BS7102956YPCAP ASSY, RATCHET
34 BS799624KABELTULLE
35 BS7104638YPREMOTE VENT ASSEMBLY
36 BS7900067YPSCHRAUBE, 1/4-20X11/16
37 BS7104513YPHOLDER, FUEL TANK
38 BS7012080SMCABLE TIE, 7.0
39 BS7091085YPFHSNB, #10C X1/2 YZ
40 BS7301174BMYPBRKT, CARBON CANISTER
41 BS7091290SMHLN, NYLON, #10C YZ
42 BS7104634YPCANISTER, CARBON
43 BS7104930YPSPRING, REACT DRIVE
44 BS7023606YPCAP, VINYL
45 BS7029900SMKLEMME 490 X .31
46 BS7105075YPCLAMP, HOSE
47 BS7200138YPHOSE, VAPOR
48 BS7200111YPKRAFTSTOFFSCHL. 25X.50X9
49 BS796491BENZINSCHLAUCH
50 BS7014359YPFUEL FILTER, INLINE
51 BS7024507YP
52 BS7073240SM(C) HOSE, FUEL 5
53 BS219977-3130-G5
54 BS799358ABDECKUNG SCHUTZSIEB
55 BS799359SCHRAUBE
56 BS7301224BZYPBRACKET, TANK BRACE
