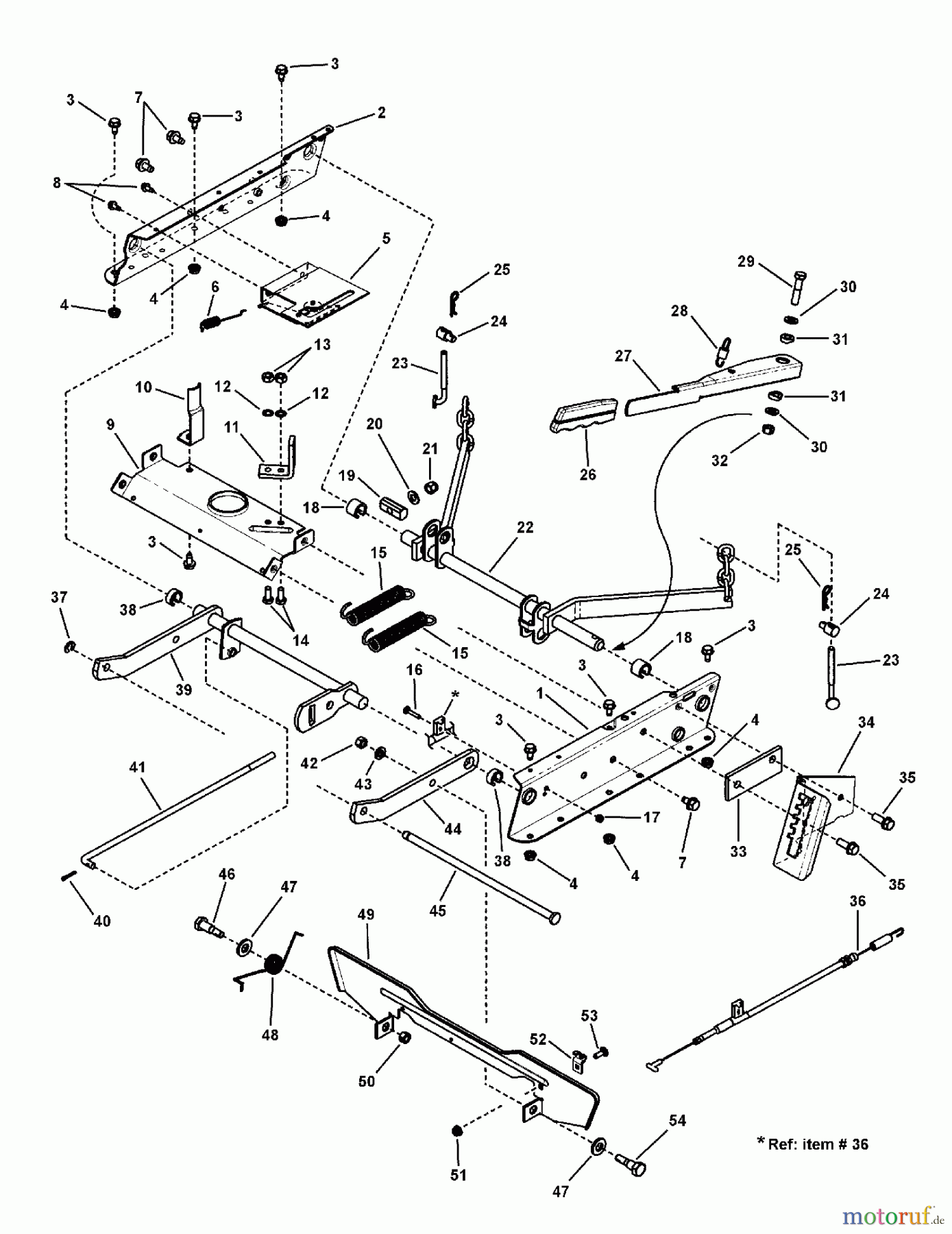

Murray 107.280341 (7800669A) - Craftsman 28" Rear Engine Rider, 12.5HP (2011) (Sears) Deck Rails & Lift Group Ricambi

Deck Rails & Lift Group 107.280341 (7800669A) - Craftsman 28" Rear Engine Rider, 12.5HP (2011) (Sears)

Murray Reitermäher 107.280341 (7800669A) - Craftsman 28
PosizioneArticolo numeroDescrizione
1 BS7073269YPHOLM, DECK LIFT, LINKS
2 BS7043848YP
3 BS7090361YPHWST, 5/16C X5/8 BP
4 BS7090585MANUT .31-18 FLANGELOCK
5 BS7600140YPKIT, CLUTCH PLATE
6 BS7074649YPFEDERARRETIERUNG
7 BS7091198SMHWST, 3/8CX5/8BP
8 BS7091867YPSCREW, 5/16-18 X 1/2
9 BS7031838YPBRACE, TOP
10 BS7031855YPTREIBRIEMENSCHUTZ
11 BS7032243YPSICHERUNGSBOLZEN
12 BS7090391SMITLW, 5/16
13 BS7091297SMMUTTER, 5/16F GR5 YZ
14 BS7090233YPHHCS, 5/16F X3/4 GR5
15 BS7046163YPHILFSFEDER
16 BS7092051YPBOLZEN, 10-24X1
17 BS7091290SMHLN, NYLON, #10C YZ
18 BS7012068YPRING, HEBEARM HINTEN
19 BS7034213YPACHS, VERSTELLUNG
20 BS7090122YPWASHER, 3/8" FLAT SAE
21 BS7090854YPSECHSKANTMUTTER 3/8-24 SELBSTS
22 BS7059324YPLIFTARM HINTEN
23 BS7028728SMKETTENSPANNER
24 BS7028200SMSICHERUNGSSTIFT
25 BS7091503SMHAIR PIN, 3/32X1-1/2
26 BS7026420YPGRIP, FLAT BAR, BLACK
27 BS7046155YPSICHERUNGSBOLZEN
28 BS7046159YPREGLERHEBEL
29 BS7090483YPHHCS, 3/8F X1-3/4 GR5
30 BS7032030SMFW, .406X1.25X.132 ZP
31 BS7071920YPSPACER, DECK HANDLE
32 BS7090289SMHCLN, 3/8F GR5 YZ
33 BS7046217YPSPACER, DETENT
34 BS7046157YPARRETIERUNG, HOHENVERST.
35 BS7090324SMHWST, 3/8C X1 BZ
36 BS7073216YPCAB NRIM, REAR RIDER
37 BS7017847YPFIXIERRING 438 AUSSEN
38 BS7012067YPRING, HEBEARM VORN
39 BS7058041YPHEBEARM VORN
40 BS7090365YPPIN, 1/8X3/4 SPLINT
41 BS7016122YPSTREBE
42 BS7090155YP
43 BS7032030SMFW, .406X1.25X.132 ZP
44 BS7032997YPAUSLEGER, FRONTLIFT
45 BS7022717YPROD, DECK SUPPORT
46 BS7015446YPBUNDSCHRAUBE
47 BS7090250YP
48 BS7015448YPFEDER, PEDAL
49 BS7073267YPFU?PEDAL, ABS
50 BS7090289SMHCLN, 3/8F GR5 YZ
51 BS7091584SMHFLN, 1/4C YZ
52 BS7073217YPKABELCLIP
53 BS7091776YPBOLT, 1/4-20X3/4
54 BS7015495YPBOLZEN
