Murray LT135420C (7800361) - 42" Lawn Tractor, 13.5HP (2008) Main Case Assembly - Gear Drive Ricambi

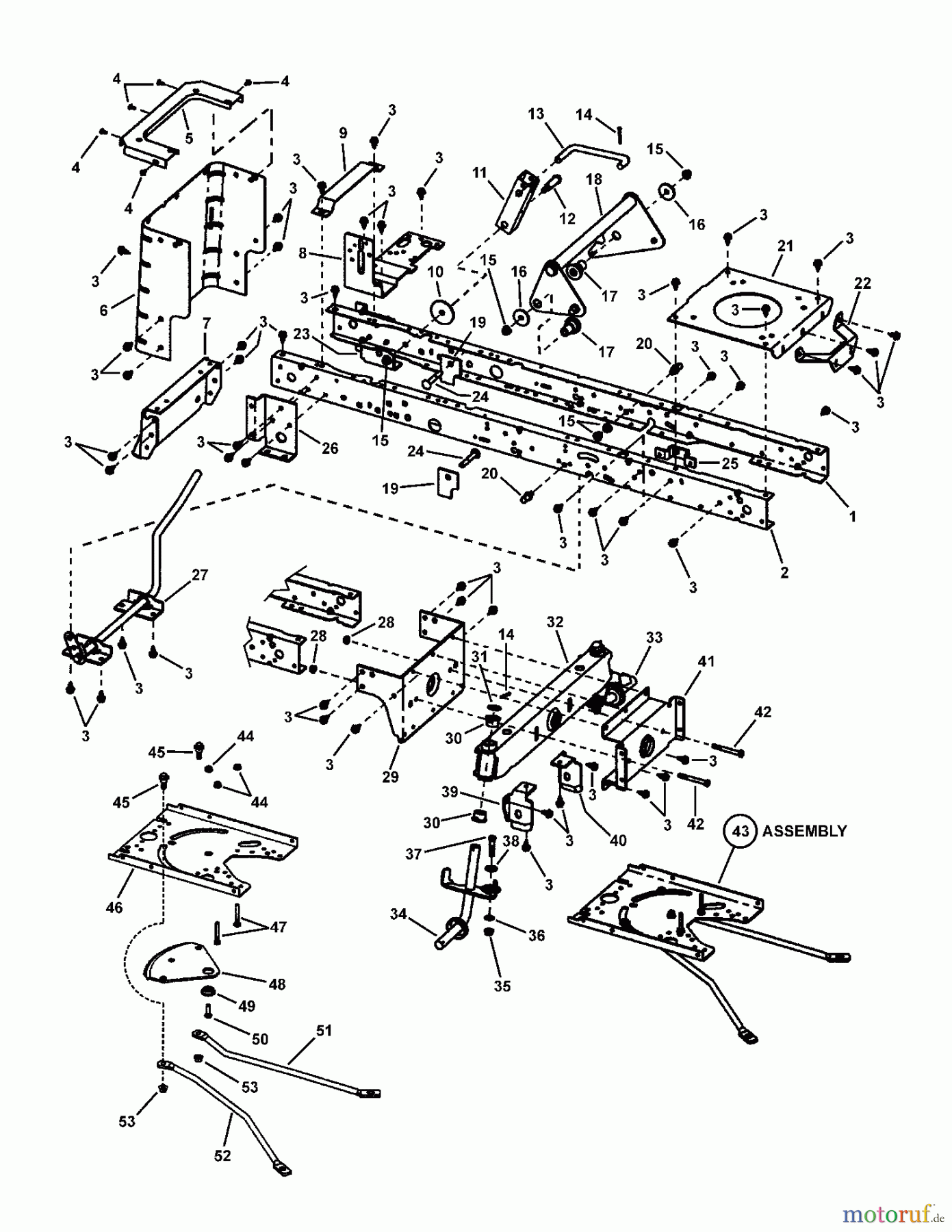

Main Case Assembly - Gear Drive LT135420C (7800361) - Murray 42" Lawn Tractor, 13.5HP (2008)

Murray Rasen- und Gartentraktoren LT135420C (7800361) - Murray 42
PosizioneArticolo numeroDescrizione
1 BS1001927E717MARAIL - FRAME LH
2 BS1001928E717MALANGSTRAGER RECHTS
3 BS26X249MASCREW-.312-18X.75
4 BS7091286YPHWST, 10-24X.50 SEMS
5 BS094186E701MAHECKBLECH OBEN
6 BS1001906E701MAPLATTE- LIFT HINTEN ELEK.
7 BS1001002E701MAPLATE-HITCH
8 BS690166E700MABRKT. SHIFT R.H.
9 BS690482E701MABRKT BATTERY SUPPORT
10 BS17X191MAUNTERLEGSCHEIBE - VORNUT
11 BS094015E701MABRACKET-PIVOT
12 BS009X53MABOLT,SHD .38-16X.565
13 BS690122E701MALIFT HANDLE LINK
14 BS7091809YPPIN, COTTER 1/8 X 1.2
15 BS7091619SMHFLN, 3/8C YZ
16 BS7013866YPFW, .39X1.5X.11 ZP
17 BS690151MASPACER - LIFTER
18 BS1001111E701MAVERSTELLHEBEL KLOMPL.
19 BS1001098E701MAPLATTE VERSTEIFUNG
20 BS094067MAANSATZGEWINDESTIFT
21 BS094006E701MAPLATE, ENGINE
22 BS690537E701MABRKT - MUFF MTG HP
23 BS094185E701MABRACKET T/A L.H.
24 BS7091008YPRHSSNB, 3/8C X2-1/2 G
25 BS094005E701MAKULISSENBREMSE
26 BS094184E701MAHALTERUNG - T/A RECHTS
27 BS7400237YP
28 BS7092081YPHFLN, 5/16-24 BZ
29 BS1001270E701MABRKT - REAR HANGER
30 BS690150MABEARING - SPINDLE (LT
31 Murray FW, .77X1.13X.06BS7010935SMFW, .77X1.13X.06
32 BS1001460E701MAFRONT AXLE W/FITTINGS
33 BS094576E701MASPINDLE ASSY LH
34 BS094575E701MASPINDLE ASSY, RH
35 BS015X84MAMUTTER, CENTERLOCK .38-
36 BS017X53MAWASHER.41.82 16G FLT
37 BS01X111MABOLT-HEX.37-16X1.50 Z
38 BS710083MAUNTERLEGSCHEIBE FLACH
39 BS094026E701MAHANGER - DECK RH
40 BS094027E701MAHANGER - DECK LH
41 BS094007E701MAAXLE, HANGER
42 BS01X146MABOLT-HEX.31-24X2.75 P
43 BSEingangswelle UE 600
44 BS7090585MANUT .31-18 FLANGELOCK
45 BS009X57MABOLT-SHD.38-16X1.10
46 BS1001121E701MAPLATE STEERING MOUNTI
47 BS094384MAGUIDE SCREW - YELLOW
48 BS094121MAGEAR - SECTOR
49 BS094123MALAGER-SEKTORGETRIEBE
50 BS7027168SMCAPSCREW
51 BS095329E701MAANSCHLUSSVERBINDUNG LINKS
52 BS095328E701MAANSCHLUSSVERBINDUNG RECHTS
53 BS7091619SMHFLN, 3/8C YZ
