Murray FLT185420 (7800370) - Federated 42" Lawn Tractor, 18.5HP (2008) Electrical Group - Hydro Drive Ricambi

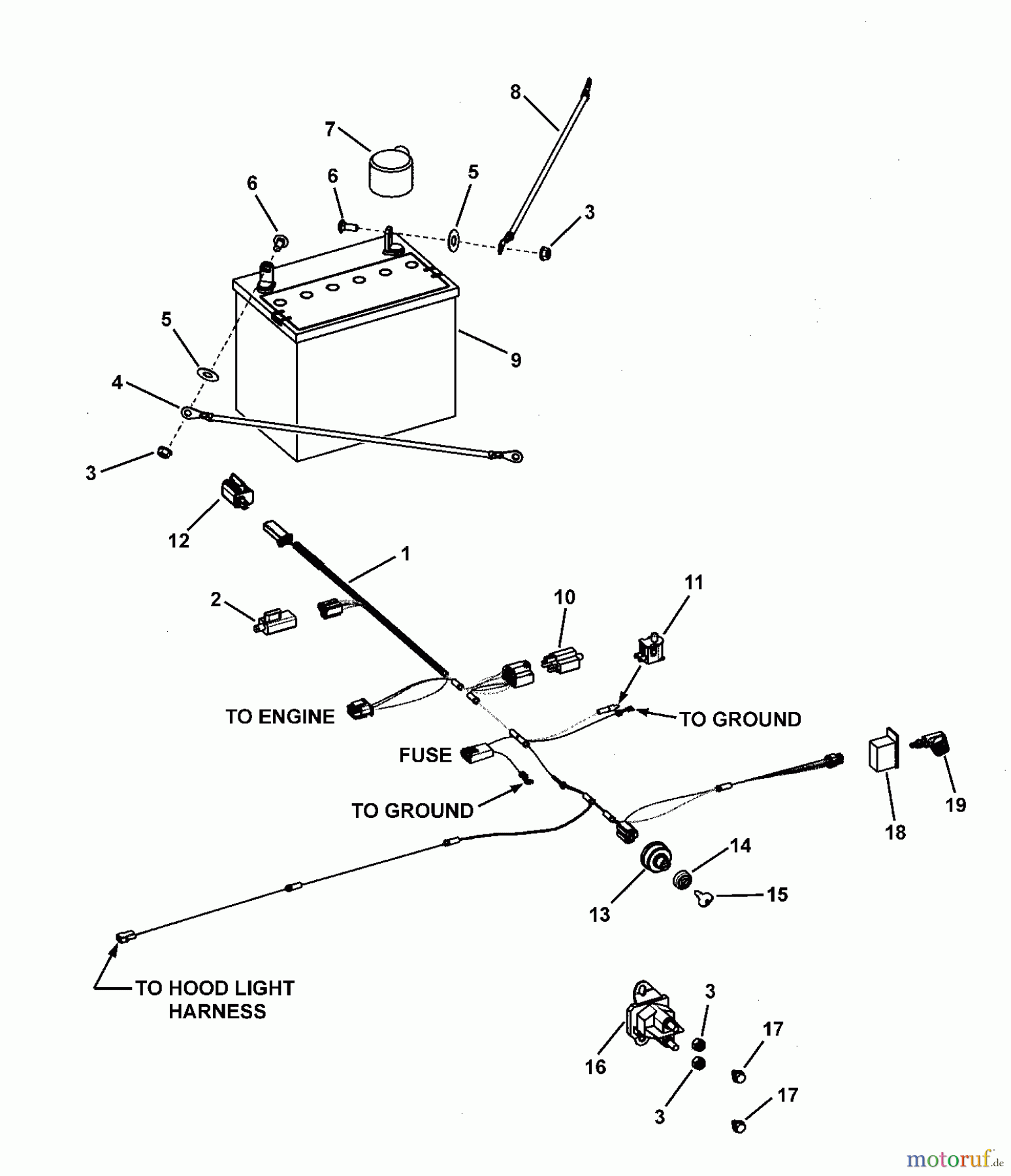

Electrical Group - Hydro Drive FLT185420 (7800370) - Federated 42" Lawn Tractor, 18.5HP (2008)

Murray Rasen- und Gartentraktoren FLT185420 (7800370) - Federated 42
PosizioneArticolo numeroDescrizione
1 BS7101432YPHARNESS, WIRING
2 BS094136MAGRENZSCHALTER
3 BS1908125MANUT-HEX NYLOCK 1/4-20
4 BS024X32MABATTERIEKABEL 8 ANZEIGE
5 BS2816964SMLOCKWASHER, 1/4
6 BS2823341SMCAPSCREW-HEX HD 1/4-
7 BS690604MABOOT, POSITIVE TERMIN
8 BS024X31MABATTERIEKABEL 8GA R
9 BS7100449SM
10 BS1726774SMSWITCH-PUSH BUTTON RE
11 BS7023354YPSWITCH, SEAT
12 BS1001575MAGRENZSCHALTER; ENDABSCHALER
13 BS7026343SM
14 BS091488MACAP, IGNITION SWITCH
15 BS1001304MAKEY, IGNITION
16 BS7769224MAMAGNETSCHALTER-STANLEY
17 BS26X229MASCREW 1/4 14X.38 STHX
18 BS1726556SM
19 BS1726557SM
-- BS250X149MAKABELSTRANG SITZ
-- BS1726557SM
-- BS2821319SMWASHER-0.250(0.27IDX0
