Murray EMT155420H (2691080) - 42" Lawn Tractor, 15.5HP (2012) Steering Group (2989474) Ricambi

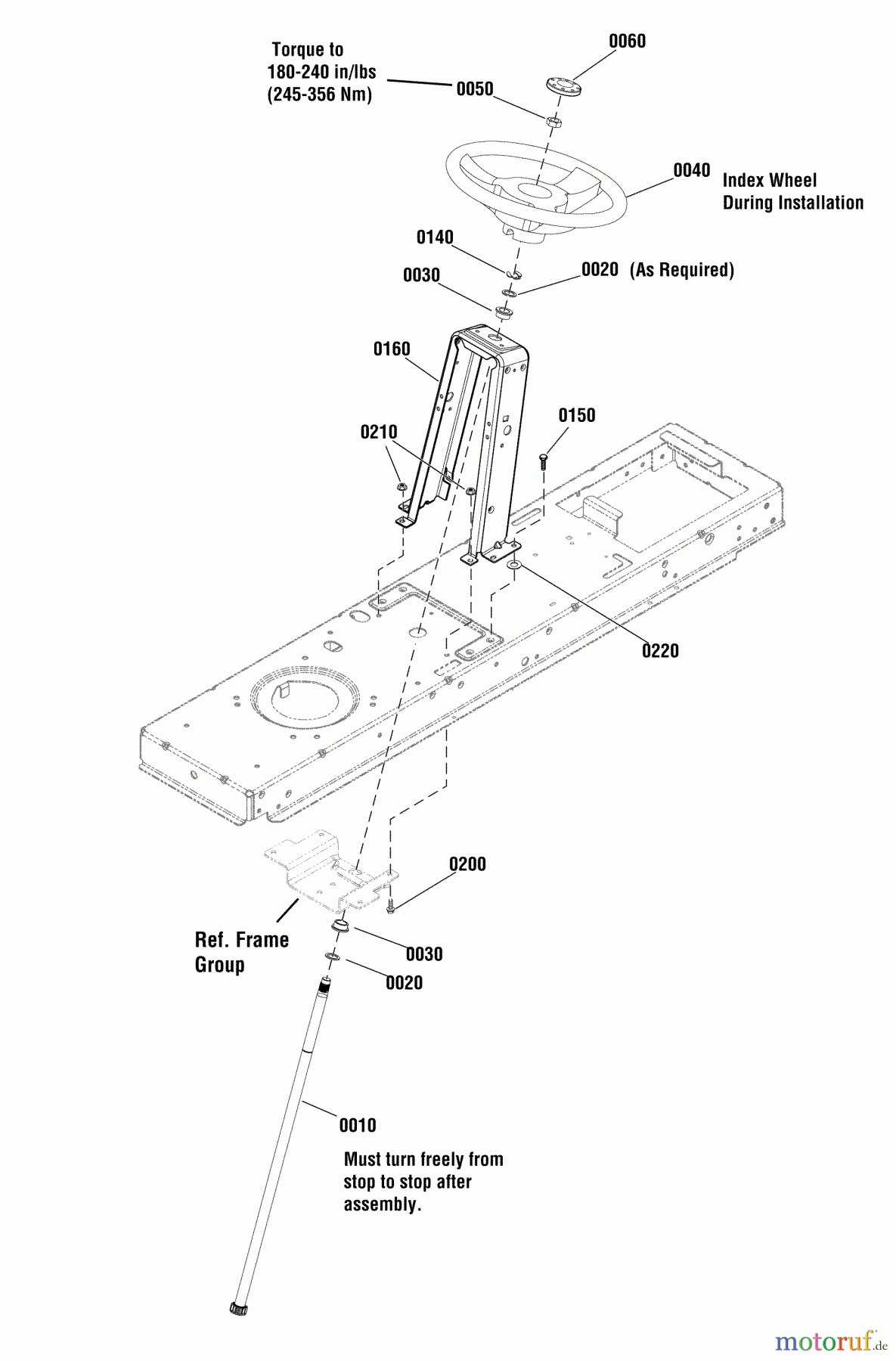

Steering Group (2989474) EMT155420H (2691080) - Murray 42" Lawn Tractor, 15.5HP (2012)
| Posizione | Articolo numero | Descrizione | |
| 0010 | BS1750991YP | SHAFT, STEERING | |
| 0020 | BS1960114SM | WASHER-0.750(0.76IDX1 | |
| 0030 | BS1729665SM | FUHRUNGSBUCHSE | |
| 0040 | BS1728069SM | LENKRAD HUNTER | |
| 0050 | BS1960576SM | SECHSK.MUTTER SELBSS. | |
| 0060 | BS1725024SM | LENKRADKAPPE PL | |
| 0140 | BS1611710SM | RING-KLIPRING EXT FOR | |
| 0150 | BS1930601SM | SCREW-HEX WSHR HD TAP | |
| 0160 | BS1750973BZYP | TOWER, STEERING | |
| 0200 | BS1930591SM | SCREW-HEX WZ LOCK FLN | |
| 0210 | BS1931277SM | MUTTER - HEX | |
| 0220 | BS1919326SM | SCHEIBE - 0.312(0.34IDX | |
