Murray EMT155420H (2691080) - 42" Lawn Tractor, 15.5HP (2012) Electrical Group (2990111) Ricambi

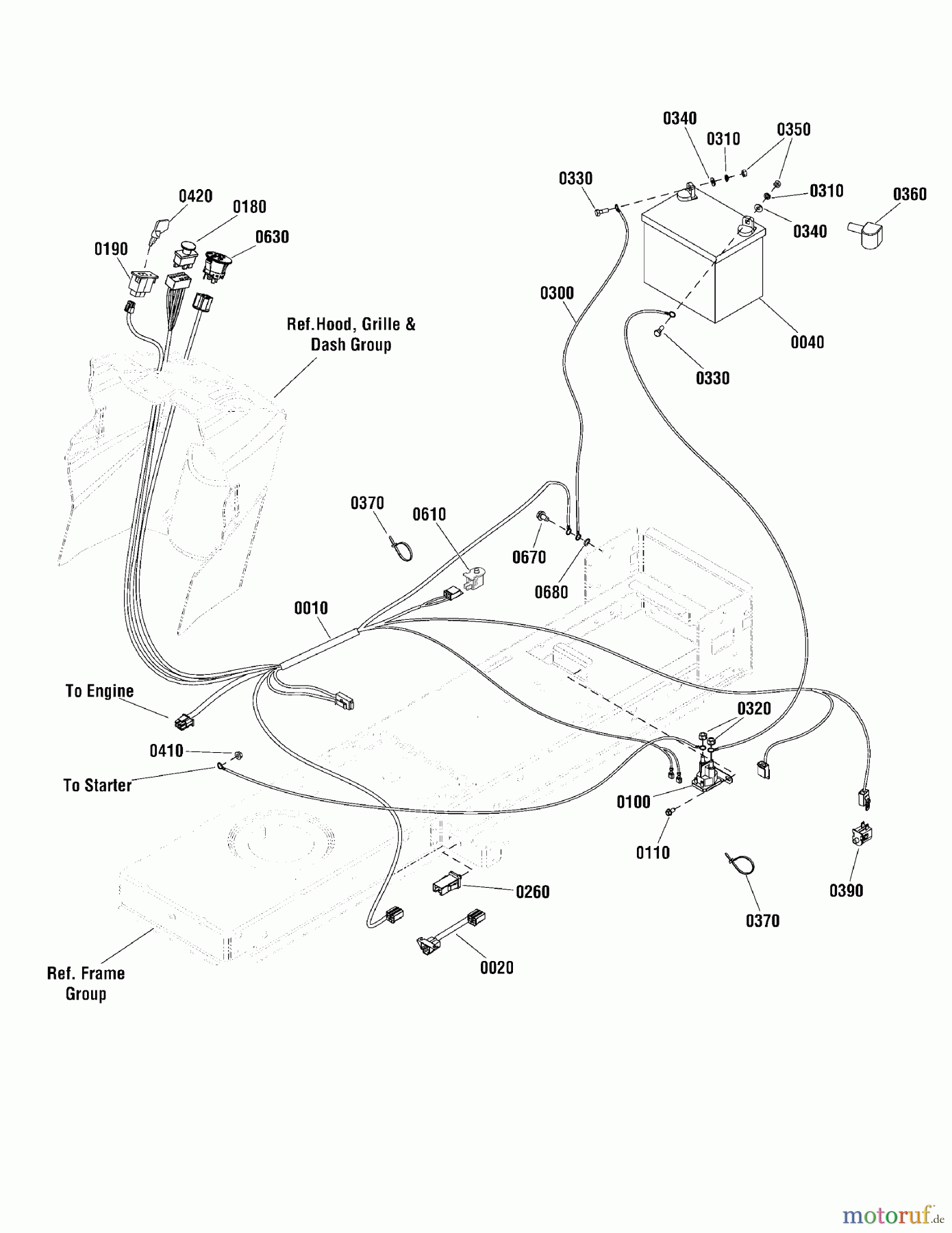

Electrical Group (2990111) EMT155420H (2691080) - Murray 42" Lawn Tractor, 15.5HP (2012)

Murray Rasen- und Gartentraktoren EMT155420H (2691080) - Murray 42
PosizioneArticolo numeroDescrizione
0010 BS1753300YPWIRING HARNESS
0020 Murray KABEL & ANSCHLUSS ASBS1734025SMKABEL & ANSCHLUSS AS
0040 BSEingangswelle UE 600
0100 BS1728963SMMAGNETABSCH.VENTIL
0110 BS1925003SMSCREW-HEX WSHR HD TAP
0180 BS1722887SMSWITCH-PTO PUSH
0190 BS1726556SM
0260 Murray SWITCH, DP NO/NC SNAPBS7022886YPSWITCH, DP NO/NC SNAP
0300 BS1752063YPCABLE, ELECTRIC
0310 BS2816964SMLOCKWASHER, 1/4
0320 BS2860750SMMUTTER 5/16-24
0330 BS2823341SMCAPSCREW-HEX HD 1/4-
0340 BS2821319SMWASHER-0.250(0.27IDX0
0350 BS2816622SMNUT-HEX 1/4-20 NC-2
0360 BS1677296SMSCHUTZHULLE BATTERIE
0370 BS1701011SMTIE, SELF LOCKING .18
0390 BS1732004SMDRUCKSCHALTER
0410 BS1960294SMNUT - HEX FLANGE
0420 BS1726557SM
0610 BS1718981SMSCHALTER 3.1
0630 BS1737959YPSWITCH, KEY
0670 BS1930601SMSCREW-HEX WSHR HD TAP
0680 BS2820426SMLOCKWASHER-EXTERNAL T
0700 BS1751523YPSWITCH, SNAP IN KEY
