Spareparts

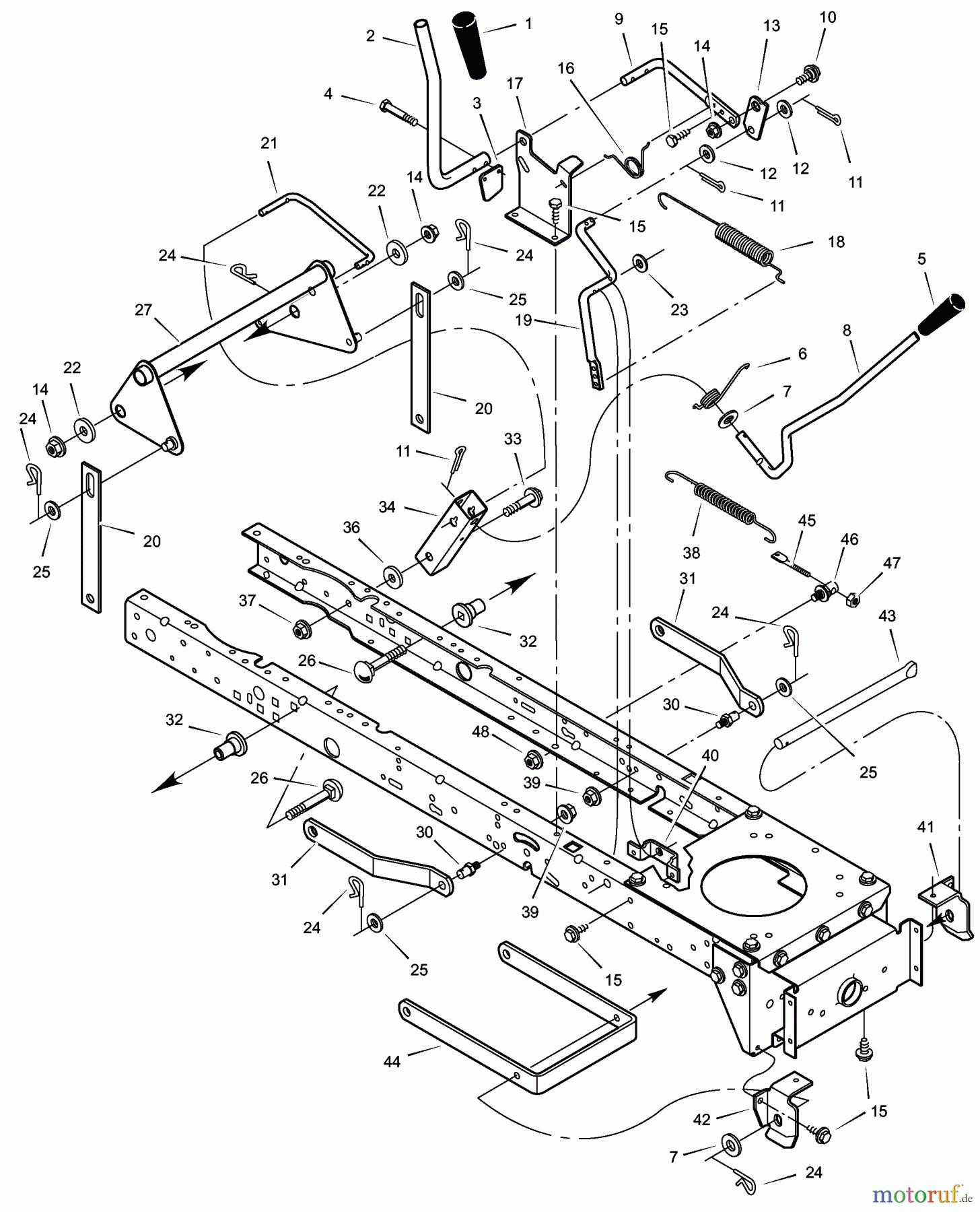

Mower Housing Suspension 46577x4A - Murray 46" Lawn Tractor (1999)

Posizione	Articolo numero	Descrizione
1	BS092698MA	GRIFF - .625 ID- SCHWARZ
2	BS094100ZMA	PTO HANDLE - LONG
3	BS094022ZMA	PADDLE-SWITCH
4	BS0025X3MA	SCHRAUBE-THD.FORM.HEX.
5	BS092697MA	GRIP - .50 ID - BLACK
6	BS166X40MA	TORSIONSFEDER LINKS
7	BS17X103MA	UNTERLEGSCHEIBE.53X1X.12 FLAT
8	BS690533MA	HANDLE, LIFT
9	BS094017ZMA	LEVER - PTO
10	BS009X39MA	ANSATZBOLZEN .38-16 X .
11	BS030X20MA	PIN-COTTER.09D-.750L
12	BS17X102MA	UNTERLEGSCHEIBE-MAHER
13	BS094004ZMA	PTO LINK
14	BS015X84MA	MUTTER, CENTERLOCK .38-
15	BS26X249MA	SCREW-.312-18X.75
16	BS166X39MA	TORSIONSFEDER PTO
17	BS094018E701MA	HALTERUNG-PTO
18	BS165X120MA	ZUGFEDER
19	BS690394E701MA	CRANK, PTO
20	BS690212E701MA	LIFT LINK (LT)
21	BS690122E701MA	LIFT HANDLE LINK
22	BS17X158MA	UNTERLEGSCHEIBE
23	BS017X57MA	UNTERLEGSCHEIBE.47.72 16G FLT
24	BS0031X4MA	PIN, HAIR .56D - .09
25	BS017X91MA	WASHER,FLAT .54.81
26	BS002X85MA	BOLT-CRG.37-16X2.25
27	BS1001111E701MA	VERSTELLHEBEL KLOMPL.
30	BS094067MA	ANSATZGEWINDESTIFT
31	BS094055E701MA	HALTER HECKAUFHANGUNG/HECKFEDE
32	BS690151MA	SPACER - LIFTER
33	BS009X53MA	BOLT,SHD .38-16X.565
34	BS094015E701MA	BRACKET-PIVOT
36	BS17X191MA	UNTERLEGSCHEIBE - VORNUT
37	BS015X84MA	MUTTER, CENTERLOCK .38-
38	BS165X133MA	SPRING-EXTENSION (LIF
39	BS015X68MA	MUTTER.38-16 FLANSCHARRETIERUN
40	BS094005E701MA	KULISSENBREMSE
41	BS094027E701MA	HANGER - DECK LH
42	BS094026E701MA	HANGER - DECK RH
43	BS094158ZMA	ROD - HANGAR
44	BS690539E701MA	BRKT-FRT SUSPENSION
45	BS094042ZMA	FEDERBOLZEN MTG.
46	BS690182MA	STUD - SWIVEL
47	BS015X84MA	MUTTER, CENTERLOCK .38-
48	BS015X79MA	NUT.31-18 FLANGELOCK
