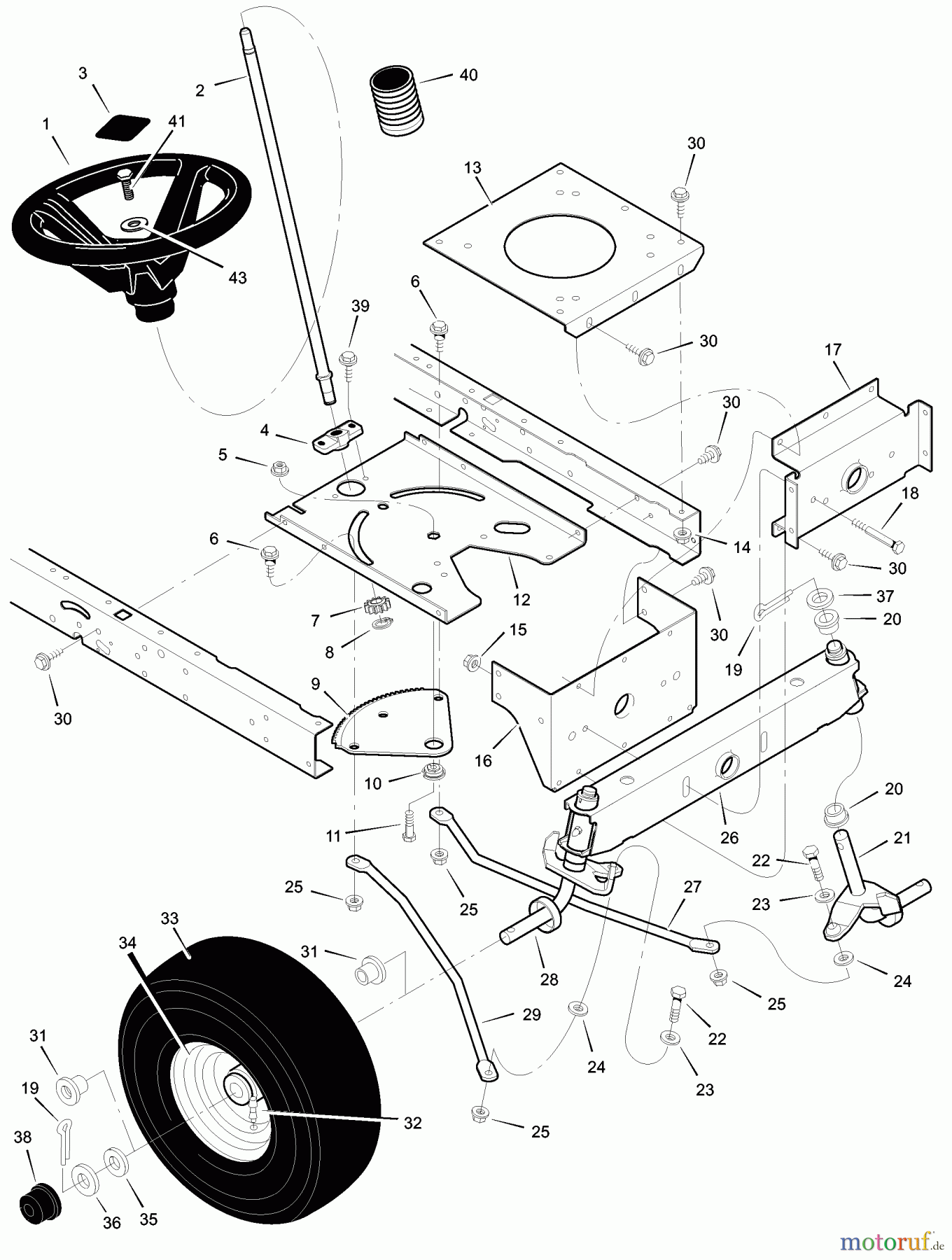

Steering 465600x31A - Scotts 46" Lawn Tractor (2003) (Home Depot)

Posizione	Articolo numero	Descrizione
1	BS095185MA	ST RAD 4 SPK SCHWARZ-BO
2	BS690337MA	STEERING SHAFT ASSY L
3	BS711326MA	EINSATZ-LENKRAD - SCHWARZ
4	BS094124MA	LAGER - UNTEN
5	BS15X111MA	MUTTER.31-18 FLANSCHVERSCHLUSS
6	BS009X57MA	BOLT-SHD.38-16X1.10
7	BS690183MA	GEAR - PINION
8	BS011X25MA	SPRENGRING/SEEGERRING .591D -
9	BS094121MA	GEAR - SECTOR
10	BS094123MA	LAGER-SEKTORGETRIEBE
11	BS001X84MA	BOLT,HEX .31-18X1.00
12	BS1001121E701MA	PLATE STEERING MOUNTI
13	BS094006E701MA	PLATE, ENGINE
14	BS015X88MA	NUT,CENTERLOCK Z .3
15	BS15X118MA	MUTTER.31-24 FLANSCHVERSCHLUSS
16	BS1001270E701MA	BRKT - REAR HANGER
17	BS094007E701MA	AXLE, HANGER
18	BS01X146MA	BOLT-HEX.31-24X2.75 P
19	BS030X49MA	PIN-COTTER.13D-1.25L
20	BS690150MA	BEARING - SPINDLE (LT
21	BS94576E700
22	BS01X111MA	BOLT-HEX.37-16X1.50 Z
23	BS710083MA	UNTERLEGSCHEIBE FLACH
24	BS017X53MA	WASHER.41.82 16G FLT
25	BS015X84MA	MUTTER, CENTERLOCK .38-
26	BS1001460E701MA	FRONT AXLE W/FITTINGS
27	BS095329E701MA	ANSCHLUSSVERBINDUNG LINKS
28	BS094575E701MA	SPINDLE ASSY, RH
29	BS095328E701MA	ANSCHLUSSVERBINDUNG RECHTS
30	BS26X249MA	SCREW-.312-18X.75
31	BS491334MA	BEARING WHEEL SET
32	BS024373MA	VENTIL STM&CP,TR41 SE
33	BS024380
--	BS407924MA	REIFEN 15X6.0 OTS II SE
34	BS094581650MA	15X6 RAD TS MIT FITTING
35	BS17X195MA	UNTERLEGSCHEIBE
36	BS17X192MA	UNTERLEGSCHEIBE.75-1.3-.07FLT
37	BS17X113MA	WASHER.76-1.2 13G FL
38	BS094618MA	HUB CAP
39	BS26X267MA	SCREW 5/16-18
40	BS092059MA	BALG/BALGE
41	BS0025X3MA	SCHRAUBE-THD.FORM.HEX.
43	BS17X146MA	UNTERLEGSCHEIBE.34-1.2 11G FL
