Murray 42586x9A - B&S/ 42" Lawn Tractor (1998) (Montgomery Wards) Mower Housing Suspension Ricambi

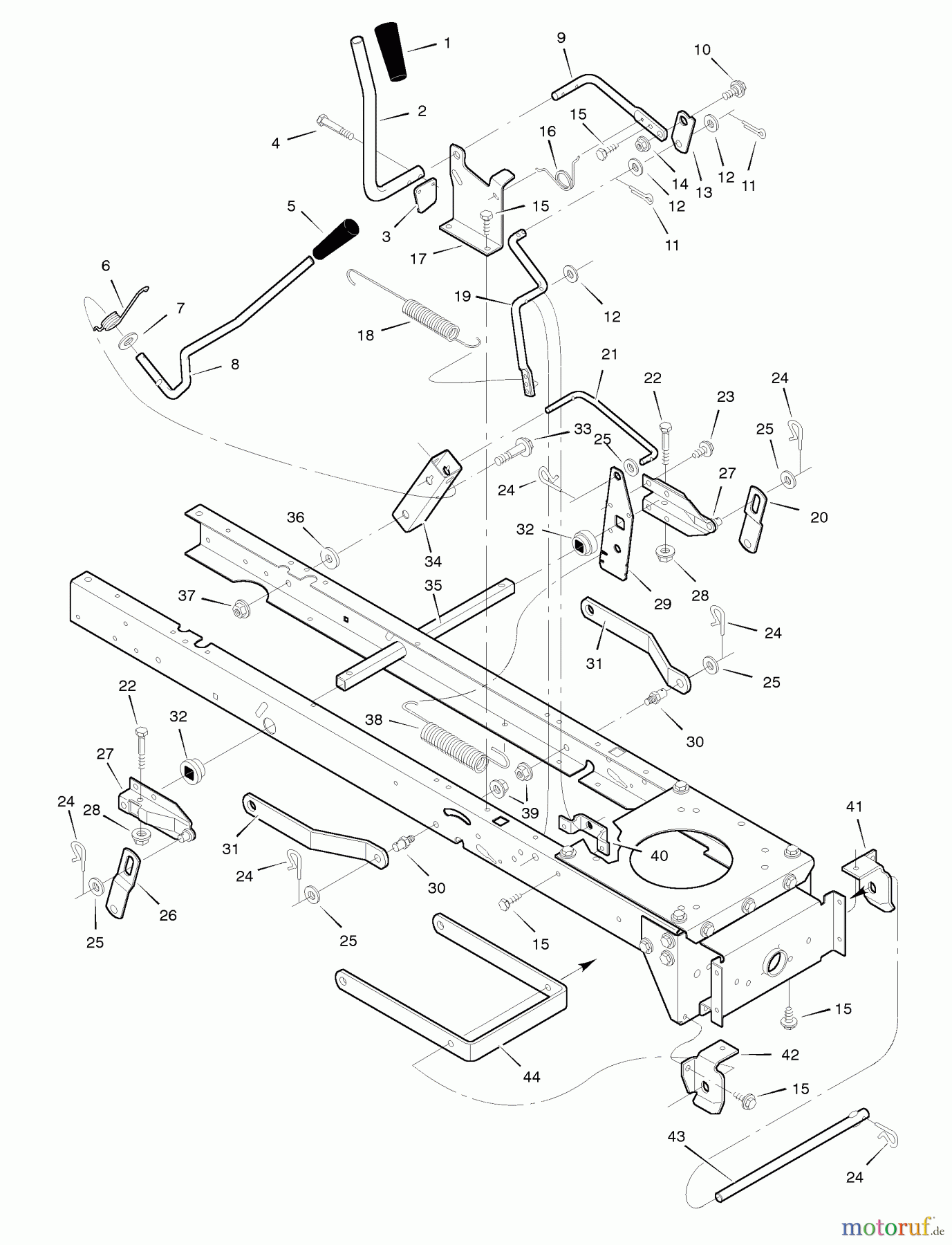

Mower Housing Suspension 42586x9A - B&S/Murray 42" Lawn Tractor (1998) (Montgomery Wards)

Posizione	Articolo numero	Descrizione
1	BS092698MA	GRIFF - .625 ID- SCHWARZ
2	BS094100ZMA	PTO HANDLE - LONG
3	BS094022ZMA	PADDLE-SWITCH
4	BS0025X3MA	SCHRAUBE-THD.FORM.HEX.
5	BS092697MA	GRIP - .50 ID - BLACK
6	BS166X40MA	TORSIONSFEDER LINKS
7	BS17X103MA	UNTERLEGSCHEIBE.53X1X.12 FLAT
8	BS690533MA	HANDLE, LIFT
9	BS094017ZMA	LEVER - PTO
10	BS009X39MA	ANSATZBOLZEN .38-16 X .
11	BS030X20MA	PIN-COTTER.09D-.750L
12	BS017X57MA	UNTERLEGSCHEIBE.47.72 16G FLT
13	BS094004ZMA	PTO LINK
14	BS015X84MA	MUTTER, CENTERLOCK .38-
15	BS26X249MA	SCREW-.312-18X.75
16	BS166X39MA	TORSIONSFEDER PTO
17	BS094018E701MA	HALTERUNG-PTO
18	BS165X119MA	ZUGFEDER
19	BS94019E700
20	BS094611E701MA	HEBEVERBINDUNG LINKS
21	BS95285MA	VERBINDUNGSGEST. HEBEGRIFF
22	BS001X74MA	SECHSKANTBOLZEN.31 24X1.25 Z
23	BS026X49MA	SCHRAUBE .31X50 TYPE B
24	BS0031X4MA	PIN, HAIR .56D - .09
25	BS017X91MA	WASHER,FLAT .54.81
26	BS094053E701MA	HEBE-/STOSSELVERBINDUNG, RECHT
27	BS094180E701MA	LIFT LEVER ASY RH
28	BS15X118MA	MUTTER.31-24 FLANSCHVERSCHLUSS
29	BS094030E700
30	BS094067MA	ANSATZGEWINDESTIFT
31	BS094055E701MA	HALTER HECKAUFHANGUNG/HECKFEDE
32	BS094065MA	BUSHING - LIFT TUBE
33	BS009X53MA	BOLT,SHD .38-16X.565
34	BS094015E701MA	BRACKET-PIVOT
35	BS094063E700MA	SCHLAUCH
36	BS17X191MA	UNTERLEGSCHEIBE - VORNUT
37	BS015X84MA	MUTTER, CENTERLOCK .38-
38	BS165X117MA	SPRING EXT LIFTER
39	BS015X68MA	MUTTER.38-16 FLANSCHARRETIERUN
40	BS094005E701MA	KULISSENBREMSE
41	BS094027E701MA	HANGER - DECK LH
42	BS094026E701MA	HANGER - DECK RH
43	BS094158ZMA	ROD - HANGAR
44	BS690539E701MA	BRKT-FRT SUSPENSION
