Murray 42580x89A - Yard King Performance 42" Lawn Tractor (2000) Deck Assembly (part 3) Ricambi

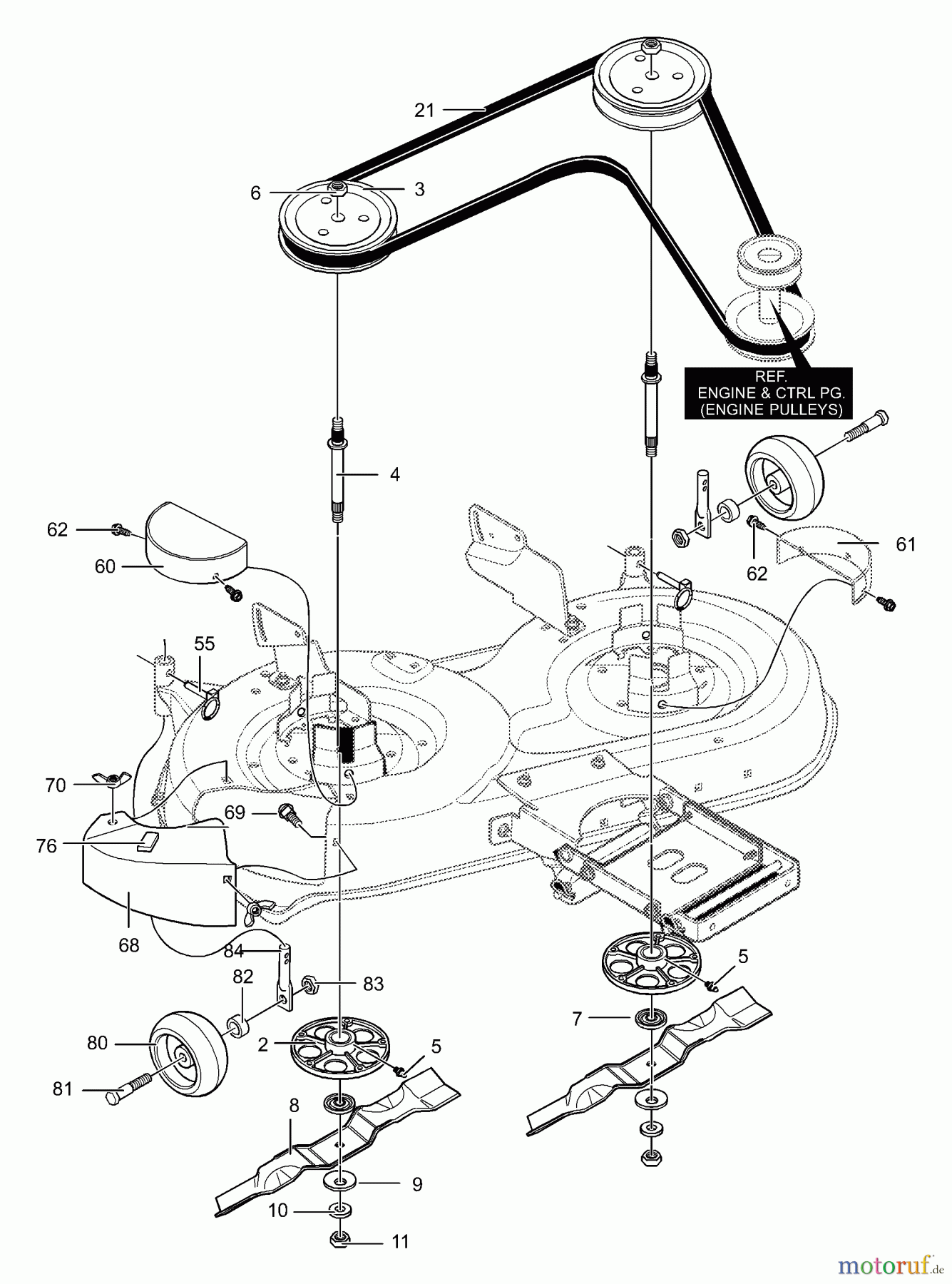

Deck Assembly (part 3) 42580x89A - Yard King Performance 42" Lawn Tractor (2000)

Gestione della qualità

Aiutaci a migliorare il nostro sito. Informaci se trovi un errore.

Posizione	Articolo numero	Descrizione
2	BS690488MA	SF , JSHAFT HSG HD W/
3	BS95308MA	YZ SCHEIBE,SPLIT STAHL
4	BS7601127MA	KIT, JACKSHAFT HOUSIN
5	BS690501MA	FITTING-LUBE PRESSURE
6	BS711626
7	BS690487MA	ADAPTER, BLADE
8	BS95100
9	BS17X166MA	WASHER.62-1.7 11G - B
10	BS17X165MA	UNTERLEGSCHEIBE.62-1.0-.18 FL
11	BS15X100MA	MUTTER.56-18 REG UNF Z-Y
21	BS710213
55	BS711797MA	STIFT, LYNCH 5/16 X 1.7
60	BS94669E701MA	RIEMENSCHUTZ RECHTE HALFTE MET
61	BS094668E701MA	RIEMENSCHUTZ
62	BS711642MA	SCRW,1/4-20X .63HHWAT
68	BS95080-821
69	BS340720MA	BOLZEN,5/16-18X.75 CARR
70	BS711604MA	FLUGELMUTTER.31-18 SERRAT
76	BS318197
80	BS092265MA	WHEEL - GAGE
81	BS711657MA	BOLT,.5X3.27HHSH3/8-1
82	BS95188MA	DISTANZSTUCK, SLV NYLON.515
83	BS41529MA	NUT, 3/8-16 HXCTRLKJA
84	BS776052MA	GUAGE WH. SUPPORT ROD
