Murray 40614B - 40" Lawn Tractor (1996) Chassis & Hood Ricambi

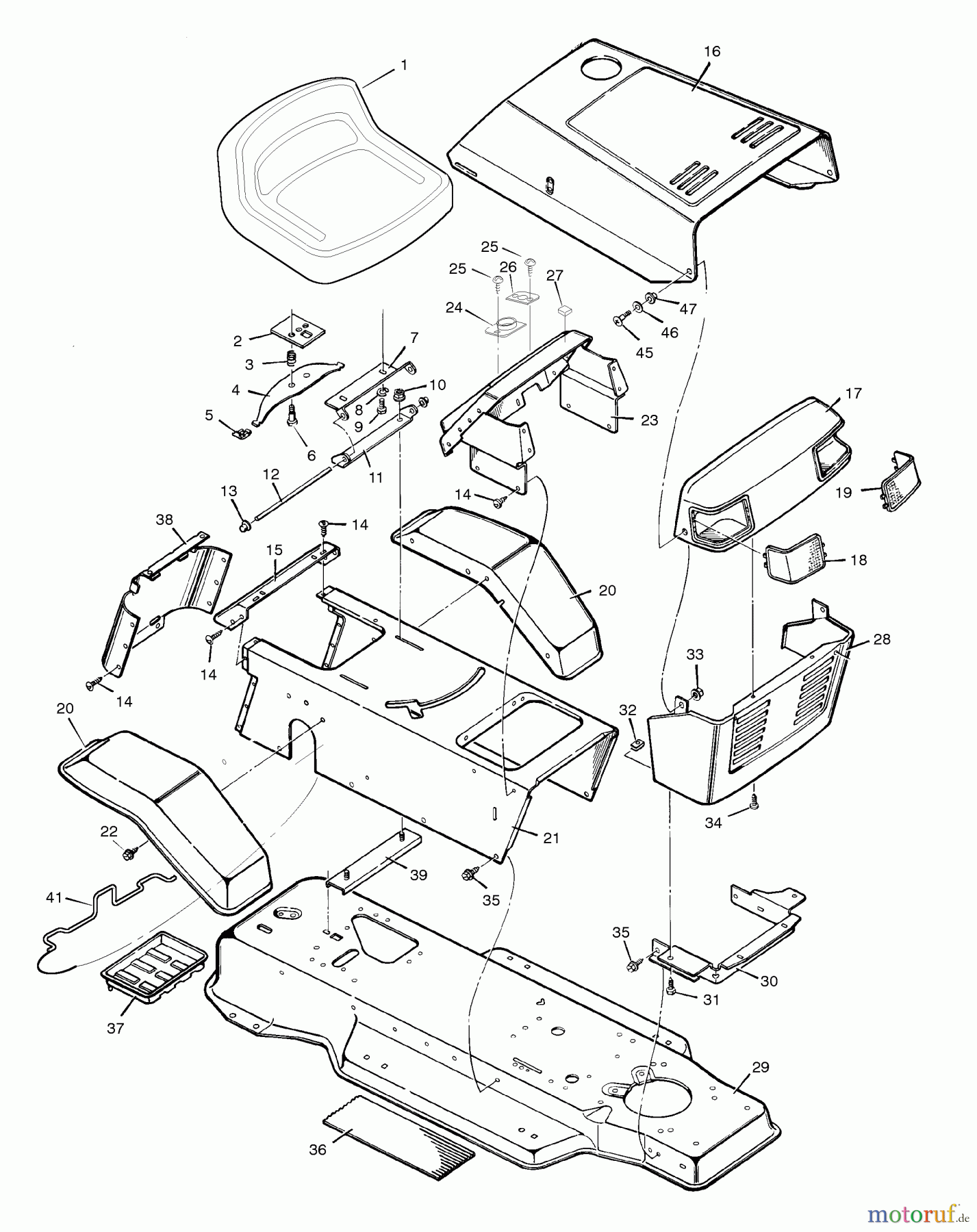

Chassis & Hood 40614B - Murray 40" Lawn Tractor (1996)

Posizione	Articolo numero	Descrizione
1	BS092387MA	SITZ,FAULHABER #2 SM
2	BS091963ZMA	PLATE ASSY,SWITCH
3	BS164X26MA	DRUCKFEDER
4	BS091964MA	SITZFEDER
5	BS091822MA	FEDERGLEITSTUCK
6	BS009X38MA	BOLT,SHD .32-16X.500D
7	BS092334E701MA	SITZUNTERBAU
8	BS018X16MA	WASHER.31.56X.05 SPLI
9	BS001X45MA	BOLT-HEX.31-18X0.62 Z
10	BS015X88MA	NUT,CENTERLOCK Z .3
11	BS091729E701
12	BS91730E701
13	BS028X23MA	PUSH CAP.375
14	BS26X250MA	SCREW-TAPPING 10-16
15	BS91724E701
16	BS091852F200
17	BS091736MA	GRILL/GITTER-OBEN
18	BS091734MA	LENS-RH
19	BS091735
20	BS92328F200
21	BS092727F200
22	BS26X263MA	SCREW.25-20 S-T
23	BS93174F200
24	BS093135MA	BEARING- STEERING POS
25	BS26X238MA	SCREW 1/4'' AB X.50
26	BS093155
27	BS092444
28	BS091722F200
29	BS092815F200
30	BS91723E701
31	BS26X252MA	SCHRAUBE - HEX UNTERLEG
32	BS028X57MA	BUNDMUTTER
33	BS015X84MA	MUTTER, CENTERLOCK .38-
34	BS0193X1MA	FASTENER-PANEL
35	BS26X249MA	SCREW-.312-18X.75
36	BS092468
37	BS091895MA	BATTERIEABLAGE/BATTERIESCHACHT
38	BS92443E701
39	BS091857E701
41	BS92725E701
45	BS009X36MA	BOLT,SHD .38-16X.499D
46	BS091751
47	BS091733
--	BSF-96700
--	BSF-96803
--	BS44X3639
--	BS44X3640
--	BS44X2585
