Murray 107.250060 (2691087-00) - Craftsman CTX9500, 52" Lawn Tractor Electrical Group (2990328) Ricambi

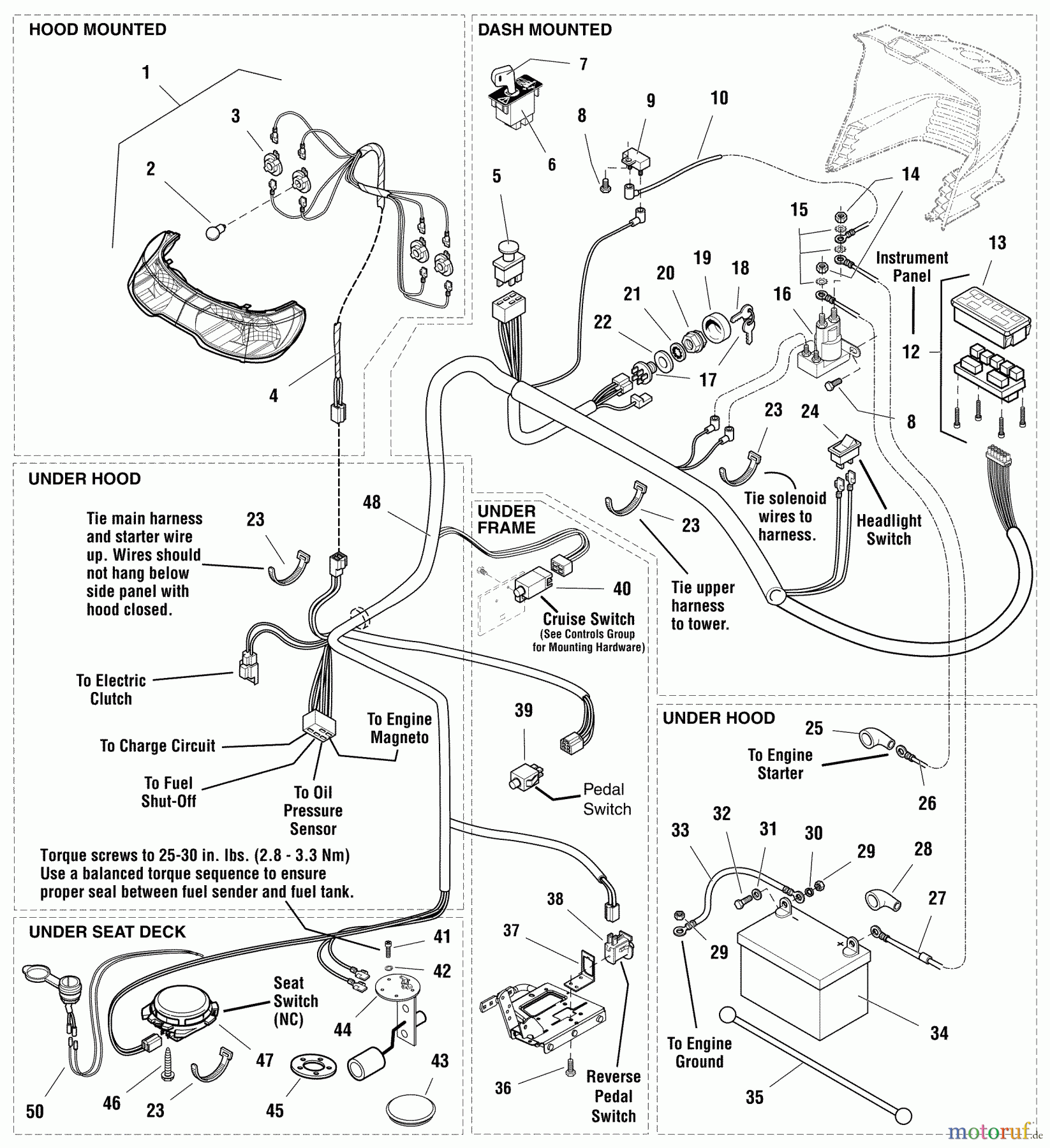

Electrical Group (2990328) 107.250060 (2691087-00) - Craftsman CTX9500, 52" Lawn Tractor

Posizione	Articolo numero	Descrizione
1	BS1721810SM	HEADLIGHT ASMY-4
2	BS1677371SM	BULB-HEADLIGHT 1
3	BS1723451SM	SOCKET ASMY-SEAL
4	BS1722669SM	SCHEINWERFERKABEL
5	BS5022180SM	SCHALTER
6	BS1726556SM
7	BS1727185SM	KEY W/HANG TAG FOR RM
8	BS1925003SM	SCREW-HEX WSHR HD TAP
9	BS1665238SM	BREAKER-CIRCUIT
10	BS1665237SM	KABEL- 12GA 05.9
12	BS1725074SM	INSTRUMENTENKONSOLE W/FU
13	BS1724865SM	ABDECKUNG KLAR INSTRUM.
14	BS2860750SM	MUTTER 5/16-24
15	BS2820426SM	LOCKWASHER-EXTERNAL T
16	BS1728963SM	MAGNETABSCH.VENTIL
17	BS1686734SM	IGNITION SWITCH
18	BS1717163SM	KEY-IGNITION INDAK
19	BS1717550SM	SCHALTERABDECKUNG
20	BS1717549SM	SECHSKBUNDMUTTER 5/8-32
21	BS1960547SM	ZAHNSCHEIBE
22	BS2101025SM	SCHEIBE 0.625(064IDX1
23	BS1701011SM	TIE, SELF LOCKING .18
24	BS1716951SM	SCHALTER-SCHEINWERFER
25	BS1713535SM	ISOLIERSCHUTZ C
26	BS1721830SM	KABEL, #6X25
27	BS1603618SM	CABLE,#6X8
28	BS1677296SM	SCHUTZHULLE BATTERIE
29	BS2816622SM	NUT-HEX 1/4-20 NC-2
30	BS2816964SM	LOCKWASHER, 1/4
31	BS2821319SM	WASHER-0.250(0.27IDX0
32	BS2823341SM	CAPSCREW-HEX HD 1/4-
33	BS1713163SM	KABEL-# 6 X 26.0
34	BS1685215SM	BATTERY,12V
35	BS1722009SM	GURT - SCHWARZ
36	BS1927428SM	SCREW, HEX WSHR
37	BS1726810ASM	BRACKET-SWITCH MOUNTI
38	BS1704379SM	DRUCKSCHALTER SCHWARZ
39	BS1732006SM
40	BS1717050SM	SICHERHEITSSCHALTER
41	BS2860665SM	KOPFSCHRAUBE
42	BS1917365SM	FEDERRING .19
43	BS1722309SM	STOPFEN 3.00 DI
44	BS1686921SM	FUEL TANK SENDER
45	BS1685303SM	DICHTUNGSSATZ
46	BS1960536SM	SCHRAUBE SECHSK.SCHEIBE HD PL
47	BS1718981SM	SCHALTER 3.1
48	BS1739708YP	KABELSTRANG
50	BS1725302SM	STECKDOSE - 12 VOL
51	BS1716329SM	SWITCH-ELECTRIC LIFT
