Murray 107.250050 (2691086-00) - Craftsman CTX9000, 46" Rear Lawn Tractor, 22HP (2012) Lift Group - Manual (2986412) Ricambi

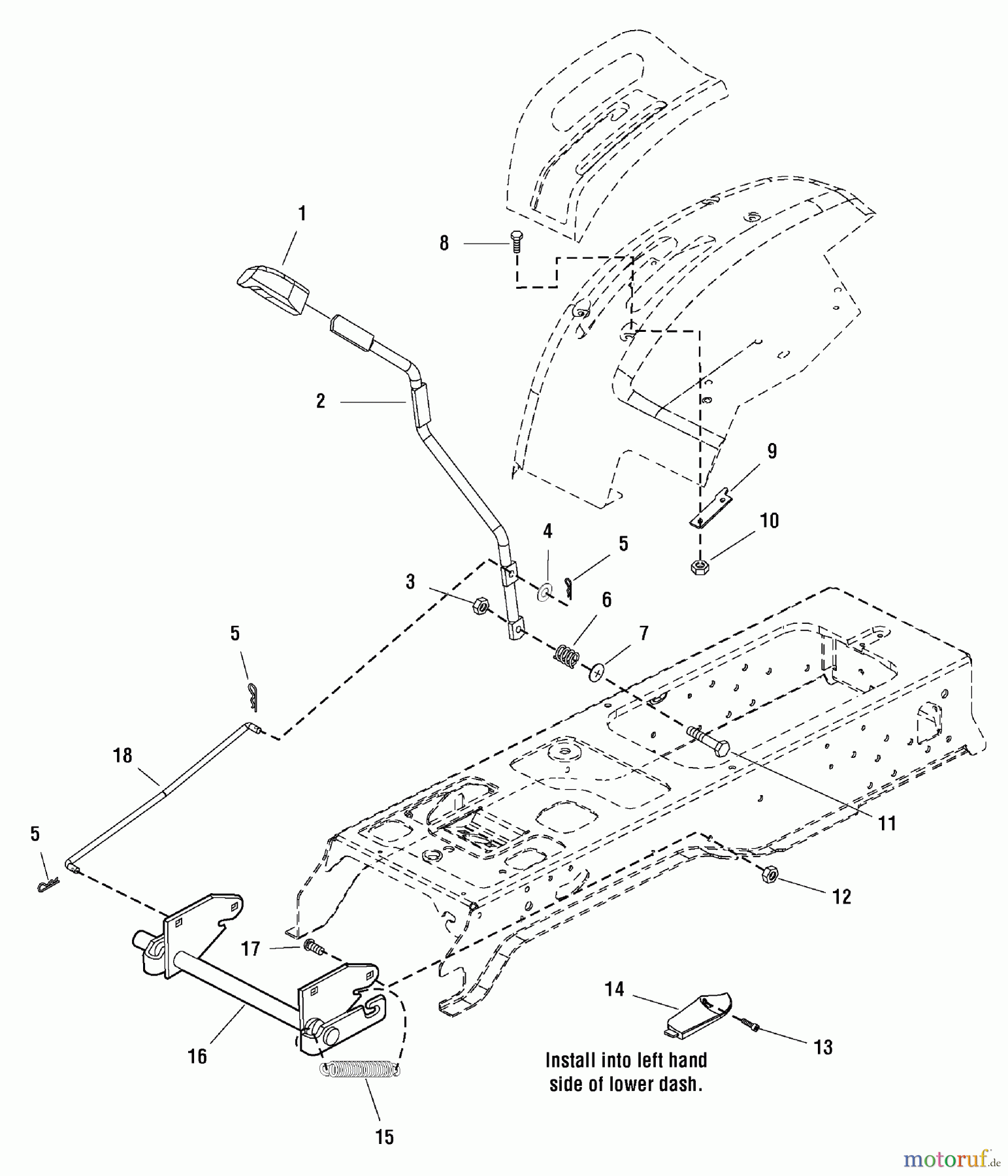

Lift Group - Manual (2986412) 107.250050 (2691086-00) - Craftsman CTX9000, 46" Rear Lawn Tractor, 22HP (2012)

Murray Rasen- und Gartentraktoren 107.250050 (2691086-00) - Craftsman CTX9000, 46
PosizioneArticolo numeroDescrizione
1 BS1722302SMGRIFF
2 BS1722024ASMROD-LIFT LEVER .625DI
3 BS1930645SMNUT-HEX FLANGE 3/8-16
4 BS1924940SMWASHER-0.375(0.41IDX0
5 BS1722460SMPIN-QUICK .080WIRE 1.
6 BS2162085SMSPRING,COMPRESSION
7 BS5025472YPNUT, PUSH, 3/8
8 BS1923341SMKOPFSCHRAUBE-SECHSK. HD 1/4-2
9 BS1722284ASMQUADRANT-BLACK
10 BS1920397SMNUT - HEX LOCK
11 BS1923701SMCAPSCREW - HEX HD
12 BS1960636SMNUT-HEX KEPS 5/16-18
13 BS1722607SMSCHRAUBE Sternantrieb #8
14 BS1722285SMVERKLEIDUNG SCHWARZ ABS
15 BS2156302SMFEDER-EXTN 0.63
16 BS1727437ASM
17 BS1931333SMBOLT
18 BS1725638SM
