Murray EH3550x4A - Edger (2000) Blade Mount Assembly Ricambi

• Start
• Murray
• Kantenschneider
• EH3550x4A - Murray Edger (2000)
• Blade Mount Assembly

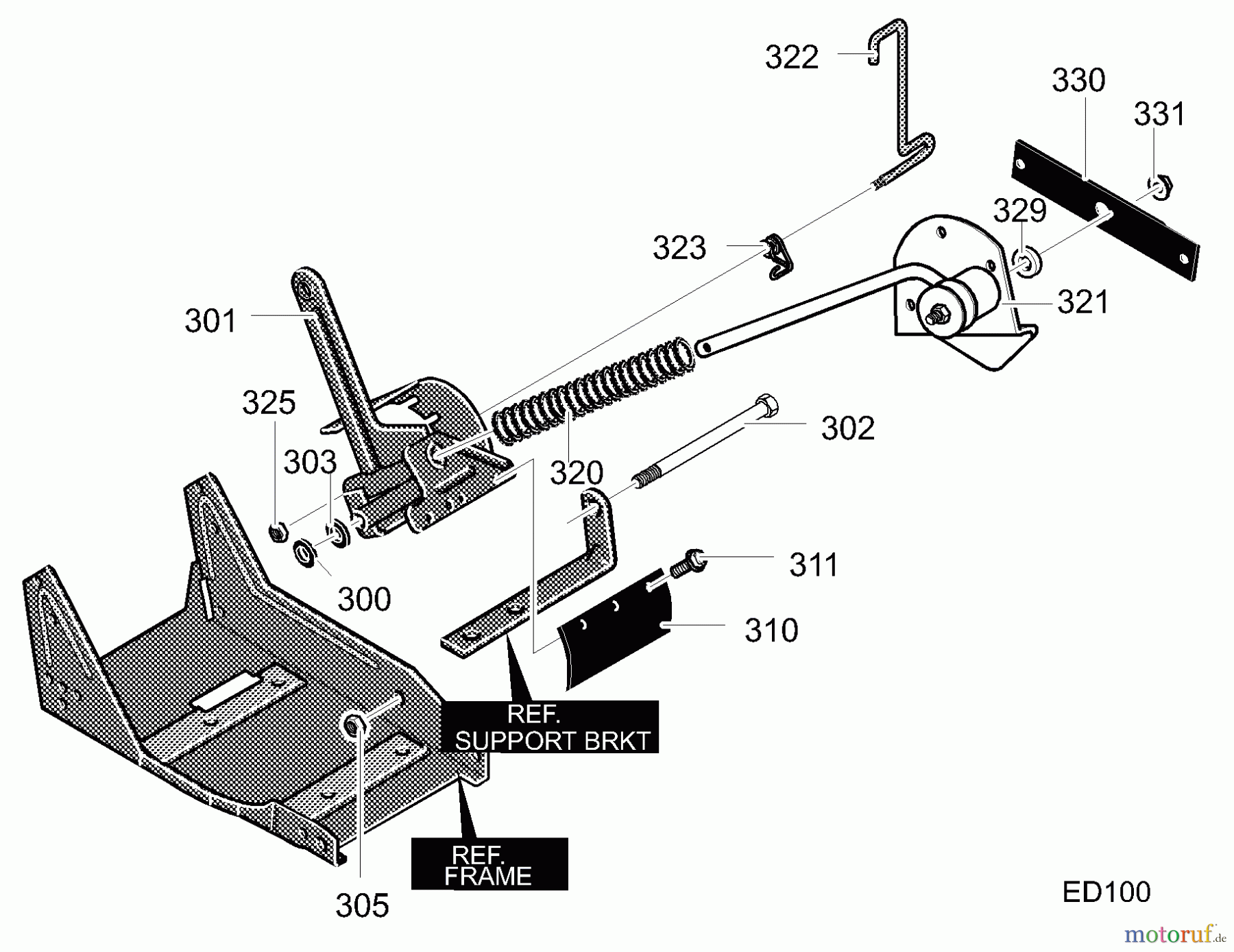

Blade Mount Assembly EH3550x4A - Murray Edger (2000)

Posizione		Articolo numero	Descrizione
300		BS120396MA	FLACHSCHEIBE. 531X1.
301		BS338656E701MA	SPULENAUFLAGE
302		BS711657MA	BOLT,.5X3.27HHSH3/8-1
303		BS710083MA	UNTERLEGSCHEIBE FLACH
305		BS1499MA	MUTTER, 3/8-16 REGHXCTRL
310		BS308243MA	DEFLECTOR, RUBBER
311		BS26X245MA	SCHRAUBE-#10X.5 B W/WAS
320		BS51603MA	FEDER
321		BS740039MA	HULSE ASSY,LG SUPT-83
322		BS308466MA	LEVER, INDEX
323		BS308155MA	SPRING, TORSION
325		BS015X43MA	NUT .31-18 ST OVERLOC
329		BS22265MA	WASHER, FLAT .515X1.
330		BS740297MA	BLADE,EDGER 9.0 2PT B
331		BS46023MA	NUT, 1/2-20WDF
