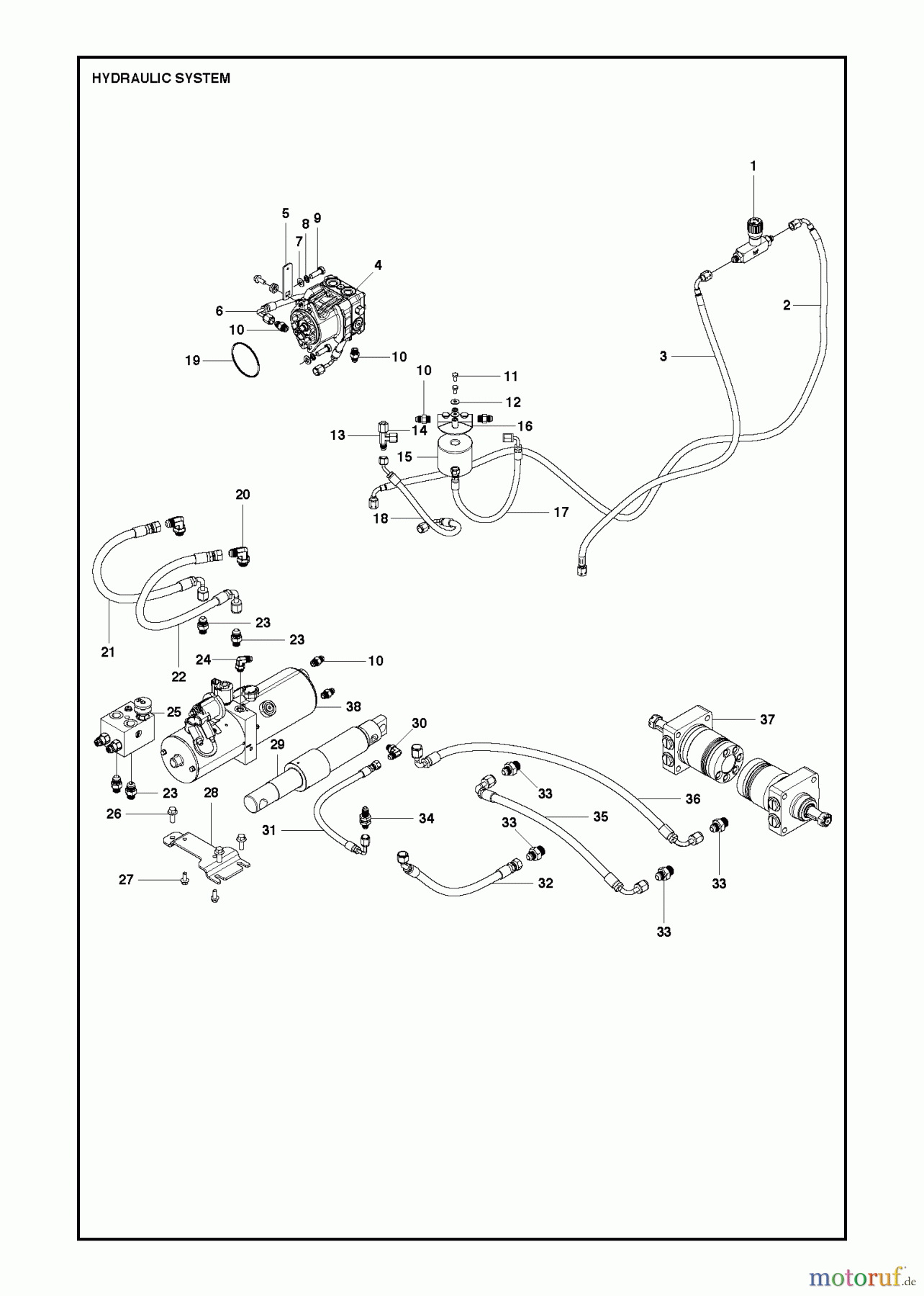

Trennschneider, Floor HYDRAULIC SYSTEM Ricambi
HYDRAULIC SYSTEM FS7000, 2014-05
| Posizione | Articolo numero | Descrizione | |
| 1 | 586 41 01-01 | ||
| 2 | 584 21 67-01 | ||
| 3 | 584 21 69-01 | ||
| 4 | 581 05 32-01 | ||
| 5 | 580 96 06-01 | ||
| 6 | 584 26 81-01 | ||
| 7 |  | 734 11 72-01 | Scheibe 3/8 |
| 8 | 735 11 73-01 | FEDERSCHEIBE | |
| 9 | 725 24 95-76 | SCHRAUBE | |
| 10 | 581 20 53-01 | ||
| 11 | 542 02 03-01 | ||
| 12 | 734 11 54-41 | SCHEIBE | |
| 13 | 583 96 62-01 | ||
| 14 | 581 20 60-01 | ||
| 15 | 542 16 64-49 | OELFILTER | |
| 16 | 542 16 64-48 | FILTER | |
| 17 | 584 27 07-01 | ||
| 18 | 584 26 97-01 | ||
| 19 | 542 19 89-49 | O-RING | |
| 20 | 583 96 59-01 | ||
| 21 | 584 26 71-01 | ||
| 22 | 584 26 74-01 | ||
| 23 | 583 96 82-01 | ||
| 24 | 583 94 72-01 | ||
| 25 | 581 26 77-01 | ||
| 26 | 585 97 31-01 | ||
| 27 | 585 97 56-01 | ||
| 28 | 580 95 84-01 | ||
| 29 | 579 24 64-01 | ||
| 30 | 581 20 54-01 | ||
| 31 | 584 14 38-01 | ||
| 32 | 584 28 00-01 | ||
| 33 | 541 20 51-02 | ||
| 34 | 581 20 55-01 | ||
| 35 | 584 28 47-01 | ||
| 36 | 584 28 05-01 | ||
| 37 | 542 19 88-78 | HYDRAULIKMOTOR | |
| 38 | 581 25 59-01 | ||
