Trennschneider, Floor Lower Frame with Pointers Ricambi

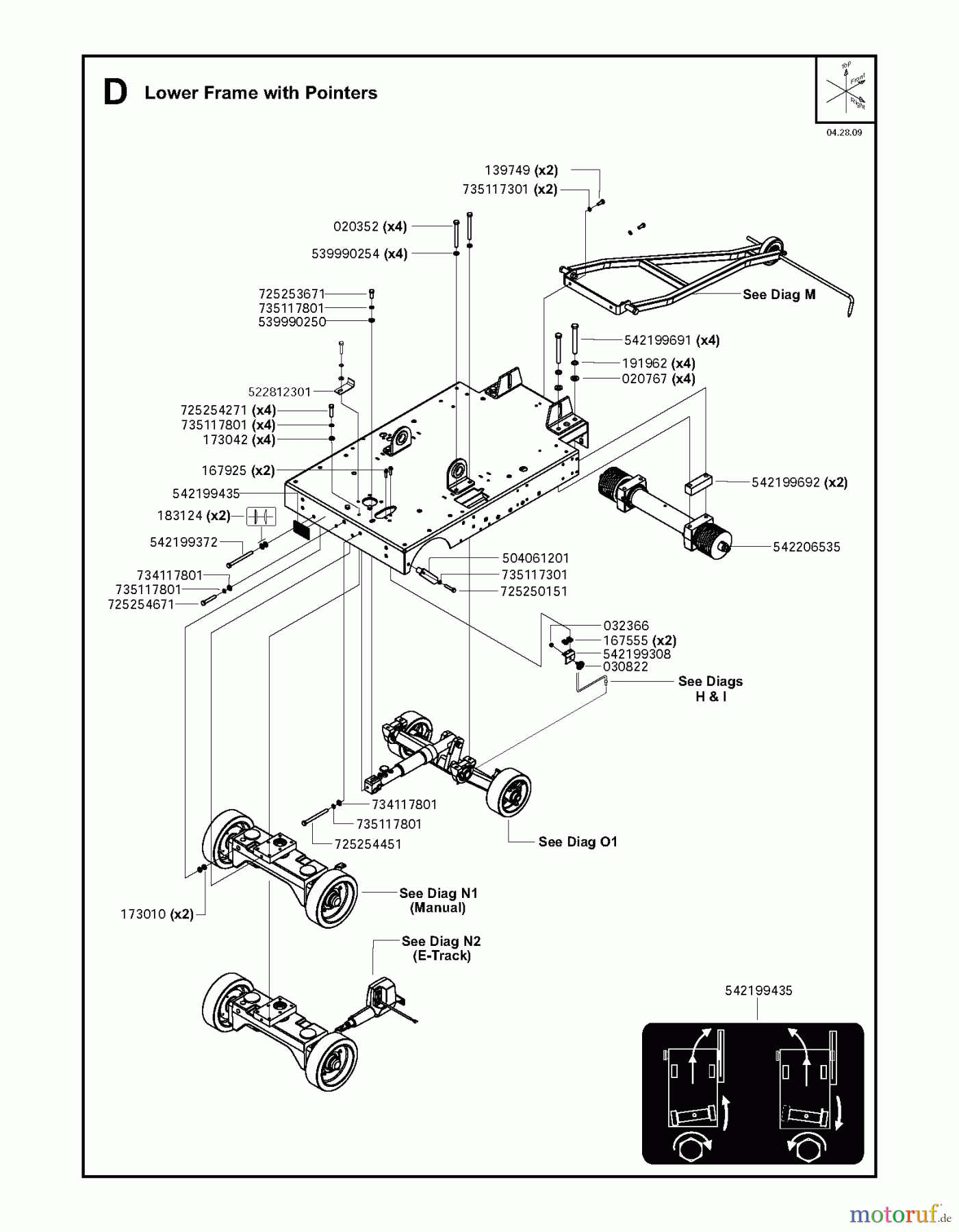

Lower Frame with Pointers FS6600 JD T3, 2009-20
| Posizione | Articolo numero | Descrizione | |
| 020352 | 20352 | 20352 | |
| 020767 | 20767 | ||
| 030822 | 30-822 | Schwingungsisolator 30x30-M8C | |
| 032366 | 32366 | ||
| 139749 | 139749 | ||
| 167555 | 167555 | ||
| 167925 | 167925 | ||
| 173010 | 173010 | ||
| 173042 | 173042 | ||
| 183124 | 183124 | ||
| 191962 | 191962 | ||
| 504061201 | 504 06 12-01 | FUEHRUNG | |
| 522812301 | 522 81 23-01 | ||
| 539990250 | 539 99 02-50 | SCHEIBE | |
| 539990254 | 539 99 02-54 | SCHEIBE | |
| 542199308 | 542 19 93-08 | RADHALTER | |
| 542199372 | 542 19 93-72 | SCHRAUBE M12X1.75X140 DIN933 | |
| 542199435 | 542 19 94-35 | AUFKLEBER | |
| 542199691 | 542 19 96-91 | SCHRAUBE M16X2.00 X 140 | |
| 542199692 | 542 19 96-92 | ANSCHLAG | |
| 542206535 | 542 20 65-35 | MESSERWELLE | |
| 725250151 | 725 25 01-51 | SCHRAUBE | |
| 725253671 | 725 25 36-71 | SCHRAUBE | |
| 725254271 | 725 25 42-71 | ||
| 725254451 | 725 25 44-51 | SCREW | |
| 725254671 | 725 25 46-71 | SCHRAUBE EHHM | |
| 734117801 | 734 11 78-01 | SCHEIBE | |
| 735117301 | 735 11 73-01 | FEDERSCHEIBE | |
| 735117801 | 735 11 78-01 | BEILAGSCHEIBE | |
