Trennschneider, Floor Water Pump Kit Ricambi

• Start
• Trennschneider, Floor
• FS4800, 2008-01
• Water Pump Kit

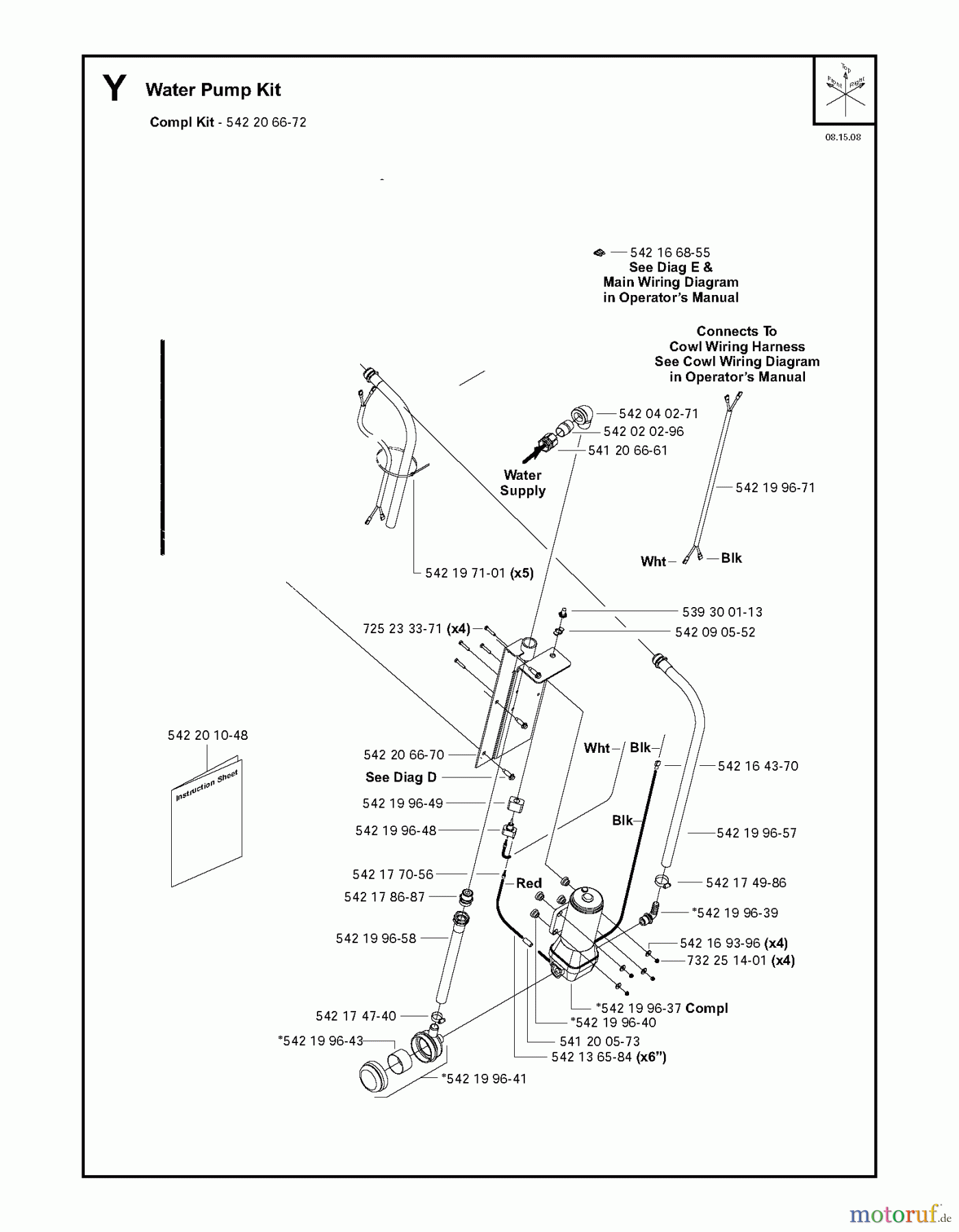

Water Pump Kit FS4800, 2008-01

Posizione		Articolo numero	Descrizione
539 30 01-13		539 30 01-13	SCHALTER
541 20 05-73		541 20 05-73	KABELVERBINDUNG
541206661		541206661
542 02 02-96		542 02 02-96	NIPPEL
542 04 02-71		542 04 02-71
542 09 05-52		542 09 05-52	PLATTE
542 13 65-84		542 13 65-84
542 16 43-70		542 16 43-70	KABELSCHUH
542 16 68-55		542 16 68-55	SICHERUNG 10 AMP
542 16 93-96		542 16 93-96	SCHEIBE
542 17 47-40		542 17 47-40	SCHLAUCHKLEMME
542 17 49-86		542 17 49-86	SCHLAUCHKLEMME SAE12
542 17 70-56		542 17 70-56	REIHENKLEMME 1/4"
542 17 86-87		542 17 86-87	ANSCHLUSSSTUTZEN 3/4 MGH X 3/4
542 19 71-01		542 19 71-01	KABEL TIE
542 19 96-37		542 19 96-37	WASSERPUMPE
542 19 96-39		542 19 96-39	EINLASSANSCHLUSS
542 19 96-40		542 19 96-40	GUMMIRINGDICHTUNG
542 19 96-41		542 19 96-41	EINLAUF FILTER
542 19 96-43		542 19 96-43	FILTERSIEBSCHUTZ
542 19 96-48		542 19 96-48	SCHALTER
542 19 96-49		542 19 96-49	SCHALTER
542 19 96-57		542 19 96-57	SCHLAUCH
542 19 96-58		542 19 96-58	SCHLAUCH
542 19 96-71		542 19 96-71	KABEL
542 20 10-48		542 20 10-48
542 20 66-70		542 20 66-70
542 20 66-72		542 20 66-72	WASSERPUMPE KIT
725 23 33-71		725 23 33-71	SCHRAUBE
732 25 14-01		732 25 14-01	MUTTER
