Trennschneider, Cut-Off Mounting kit for K650/K700 III Ricambi

• Start
• Trennschneider, Cut-Off
• KV 03, 2007-01
• Mounting kit for K650/K700 III

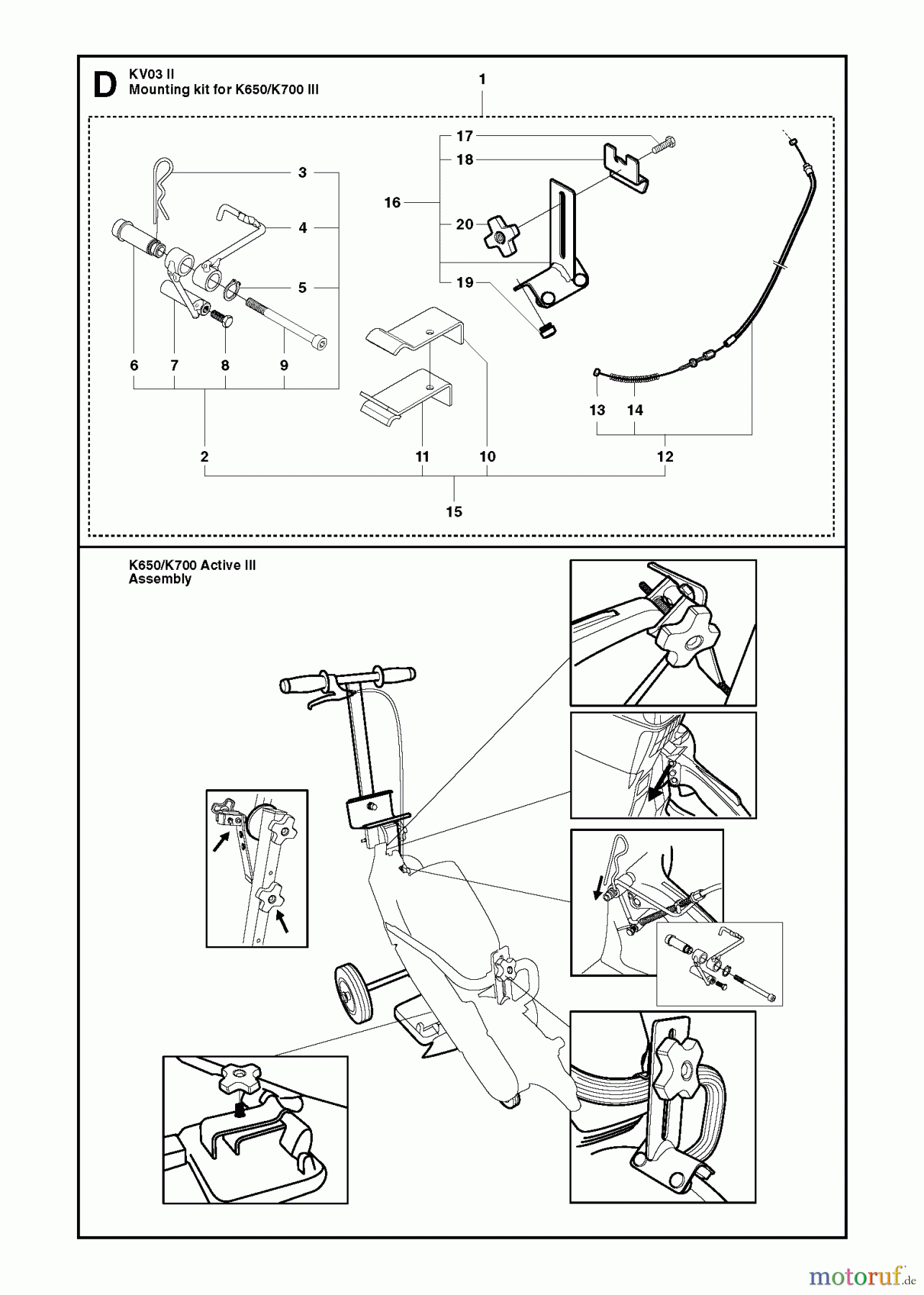

Mounting kit for K650/K700 III KV 03, 2007-01

Posizione		Articolo numero	Descrizione
1		504 11 17-01
2		506 36 75-01	GASHEBELSATZ
3		721 68 01-51	SPLINT
4		506 36 31-01	ARM
5		735 31 13-00	O-RING
6		506 36 33-01	SCHAFT
7		506 36 32-01	ARM
8		725 23 29-51	SCHRAUBE
9		725 53 45-01	SCHRAUBE M6 5X70
10		506 36 34-01	PLATTE
11		506 36 30-01	PLATTE
12		506 36 16-01	GASZUG KPL.
13		506 10 88-01	NIPPEL
14		506 20 55-02	FEDER
15		506 36 59-01	MONTAGESATZ K650/K700ACTIVIII
16		506 30 66-01	HALTER
17		725 24 51-51	Schraube 8X20
18		506 30 70-01	SCHLEIFE
19		503 47 16-01	PUFFER
20		506 31 95-01	FLUEGELMUTTER
