Trennschneider, Cut-Off FUEL TANK & HANDLE Ricambi

• Start
• Trennschneider, Cut-Off
• K960, 2007-10
• FUEL TANK & HANDLE

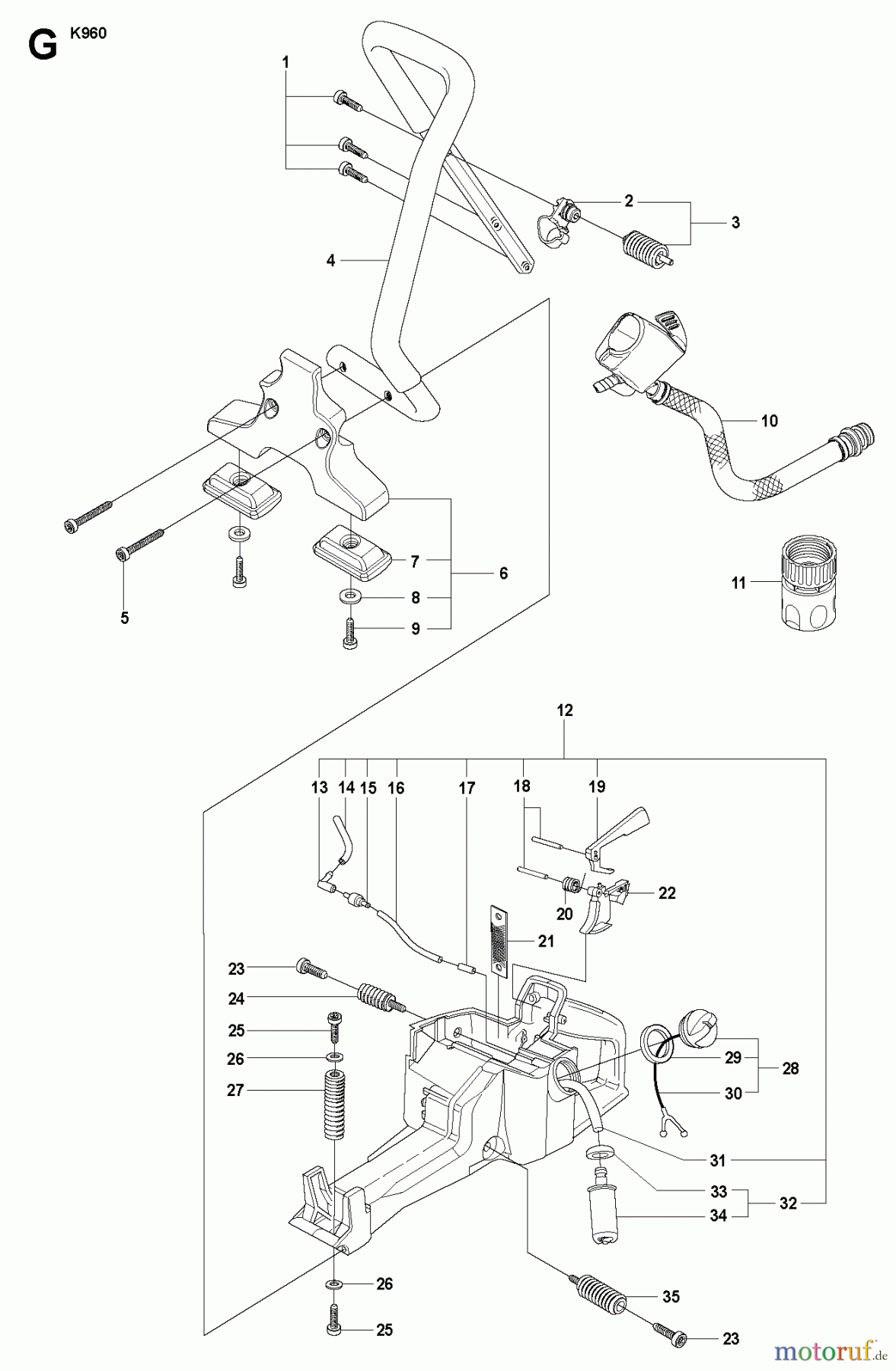

FUEL TANK & HANDLE K960, 2007-10

Posizione		Articolo numero	Descrizione
1		503 21 54-20	SCHRAUBE
2		544 02 08-02
3		506 38 91-03	VIBRATIONSDAEMPFER
4		544 45 68-01	HANDGRIFF
5		503 21 54-45	SCHRAUBE
7		544 81 16-01	STANDFUSS
8		734 11 47-41	SCHEIBE
9		503 21 53-12	SCHRAUBE
10		506 38 59-04	WASSERHAHN M.SCHLAUCH
11		503 26 60-02	VERBINDUNGSSTUECK
12		544 89 20-06	TANK
13		503 45 46-01	ANSCHLUSS
14		501 76 83-05	SCHLAUCH
15		506 23 61-01	TANKENTLUEFTUNG
16		544 32 49-32	BENZINSCHLAUCH
17		506 28 95-01	NIPPEL
18		720 12 40-20	STIFT
19		506 22 28-02	GASSPERRE
20		506 22 29-01	FEDER
21		544 23 82-01	BAND
22		506 22 27-03	GASHEBEL
23		544 06 12-01	SCHRAUBE
24		537 21 03-09	VIBRATIONSDAEMPFER
25		503 21 53-16	SCHRAUBE
26		503 23 00-11	SCHEIBE
27		503 46 85-01	VIBRATIONSDAEMPFER
28		506 25 59-03	TANKDECKEL KPL.
29		506 29 21-01	DICHTUNG
30		503 57 89-01	HALTER
31		544 32 50-02	SCHLAUCH
32		506 26 41-11	BENZINFILTER
33		506 27 11-01	GEWICHT
34		506 26 41-01	FILTER
35		544 38 31-02	FEDER
