Trennschneider, Cut-Off FUEL TANK & HANDLE Ricambi

• Start
• Trennschneider, Cut-Off
• K950 Ring, 2007-01
• FUEL TANK & HANDLE

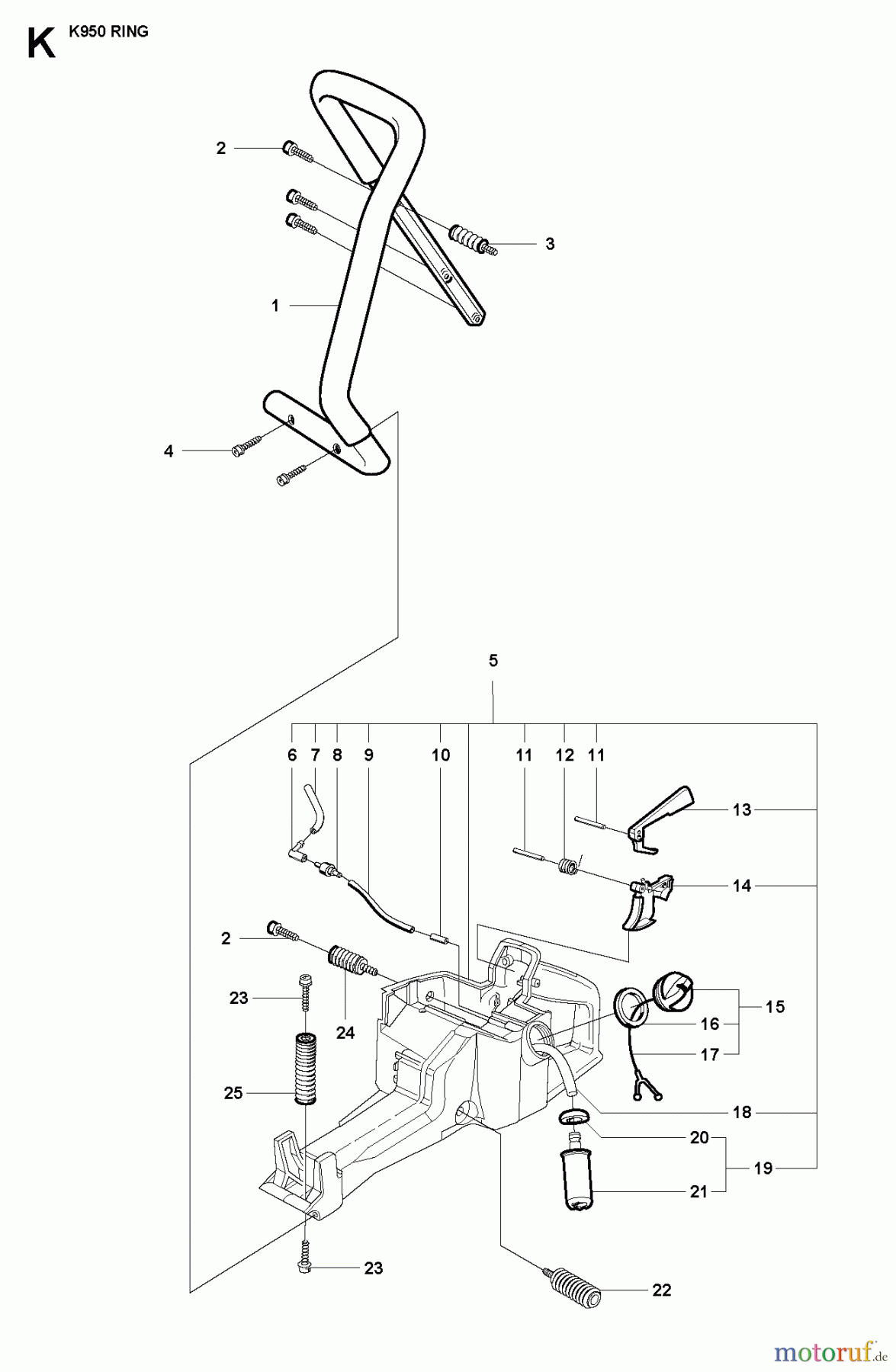

FUEL TANK & HANDLE K950 Ring, 2007-01

Posizione		Articolo numero	Descrizione
1		506 29 78-02	HANDGRIFF
2		503 21 05-22	SCHRAUBE
3		506 28 53-01	FEDER
4		503 21 05-45	SCHRAUBE
5		544 89 20-05	KRAFTSTOFFTANK
6		503 45 46-01	ANSCHLUSS
7		501 76 83-05	SCHLAUCH
8		506 23 61-01	TANKENTLUEFTUNG
9		501 76 83-31	SCHLAUCH
10		506 28 95-01	NIPPEL
11		720 12 40-20	STIFT
12		506 22 29-01	FEDER
13		506 22 28-02	GASSPERRE
14		506 22 27-03	GASHEBEL
15		506 25 59-03	TANKDECKEL KPL.
16		506 29 21-01	DICHTUNG
17		503 57 89-01	HALTER
18		503 57 76-02	SCHLAUCH
19		506 26 41-11	BENZINFILTER
20		506 27 11-01	GEWICHT
21		506 26 41-01	FILTER
22		544 38 31-01	FEDER
23		503 20 02-16	SCHRAUBE
24		506 23 75-02	FEDER
25		503 46 85-01	VIBRATIONSDAEMPFER
