Trennschneider, Cut-Off BLADE GUARD Ricambi

• Start
• Trennschneider, Cut-Off
• K760, 2013-02
• BLADE GUARD

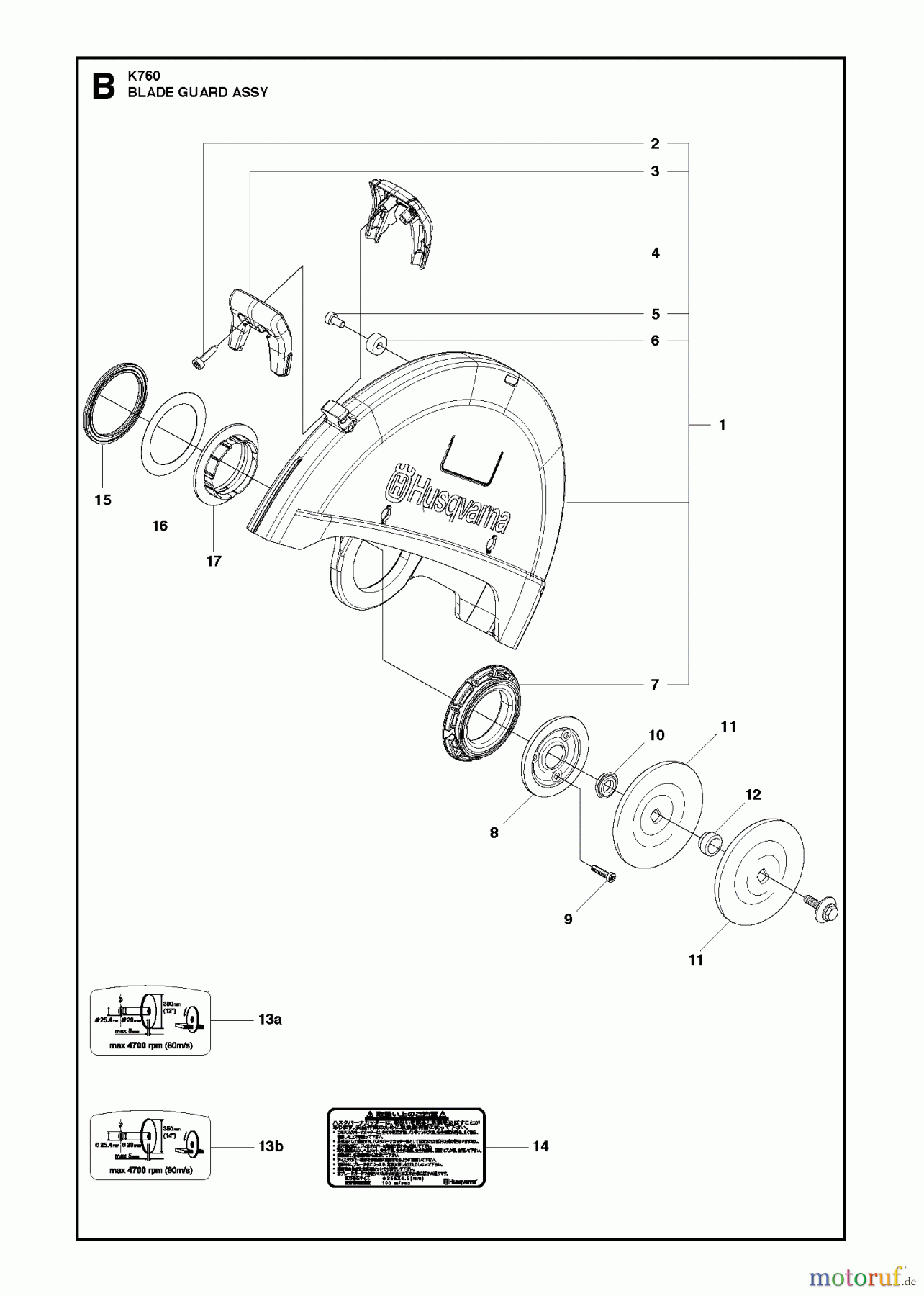

BLADE GUARD K760, 2013-02

Posizione		Articolo numero	Descrizione
1		581 35 19-01	SCHUTZHAUBE 12"
1		581 35 19-02	SCHUTZHAUPE 14"
2		504 90 94-14	SCHRAUBE
3		578 19 09-01	GRIFFHÄLFTE
4		578 76 09-01	GRIFFHÄLFTE
5		504 90 94-10	SCHRAUBE
6		581 62 03-01	STOPPER
7		578 19 10-01	BELAG
8		506 26 65-01	FLANSCH
9		505 57 41-16	SCHRAUBE
10		506 32 48-01	FLANSCH
11		583 87 44-02	BEFESTIGUNGSLASCHE M10, Diam 105 mm
11		506 02 87-01	BEFESTIGUNGSLASCHE M8, UK only
12		506 37 96-22	BUCHSE Diam 20 / 25,4 mm
12		578 39 82-01	BUCHSE 20/25,4
12		581 60 54-03	BUCHSE 30,5
13a		581 11 77-01	Folie 12"
13b		581 11 77-02	AUFKLEBER
14		584 99 26-01	Folie "Japan only 12"
14		584 99 26-02	Folie "Japan only 14"
15		579 73 32-01	GUMMIRING
16		579 73 33-01	ABSTANDSCHEIBE
17		579 73 36-01	VERSCHLEISSSCHEIBE
