Trennschneider, Cut-Off GROUND SUPPORT Ricambi

• Start
• Trennschneider, Cut-Off
• K760 Cut-n-Break, 2009-11
• GROUND SUPPORT

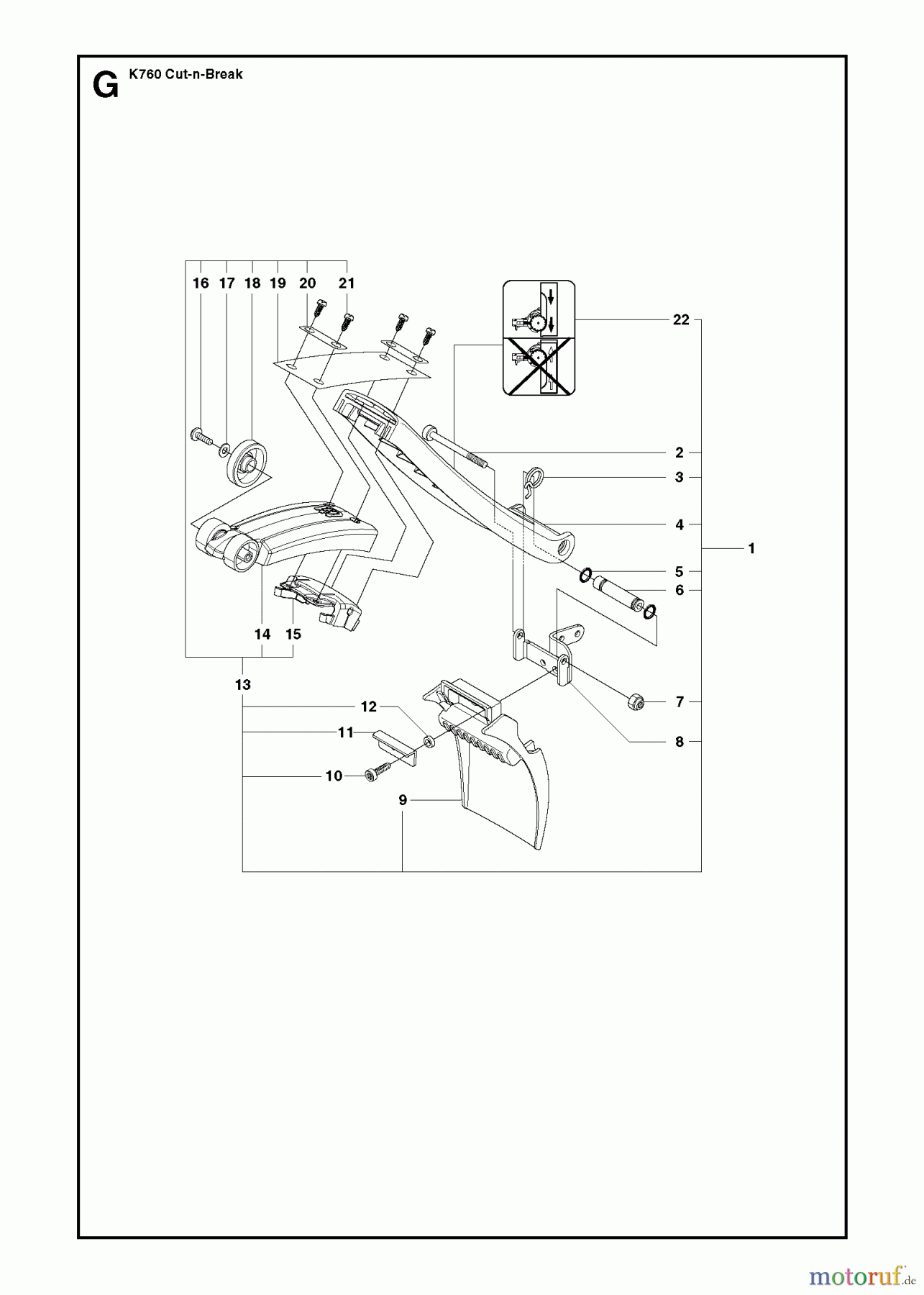

GROUND SUPPORT K760 Cut-n-Break, 2009-11

Posizione		Articolo numero	Descrizione
1		575 34 85-01	SPRITZSCHUTZ KPL.
2		503 21 53-56	SCHRAUBE
3		506 40 60-01	FEDER
4		506 40 63-02	SPRITZSCHUTZ
5		740 42 05-00	O-RING
6		506 40 37-01	BUCHSE
7		732 21 14-01	MUTTER
8		525 73 98-01	HALTER
9		544 03 21-01	SCHUTZ
10		503 21 53-16	SCHRAUBE
11		544 03 22-01	PLATTE
12		544 03 92-01	BUCHSE
13		510 05 66-01	SCHUTZHAUBE KPL.M.ROLLEN
14		510 00 72-01	SCHUTZ
15		510 00 73-01	FUEHRUNG
16		503 21 46-01	SCHRAUBE
17		734 48 80-01	SCHEIBE
18		506 26 22-02	RAD
19		510 20 24-01	BAND
20		510 20 20-01	SCHEIBE
21		503 21 27-16	SCHRAUBE
22		522 03 81-01	AUFKLEBER
