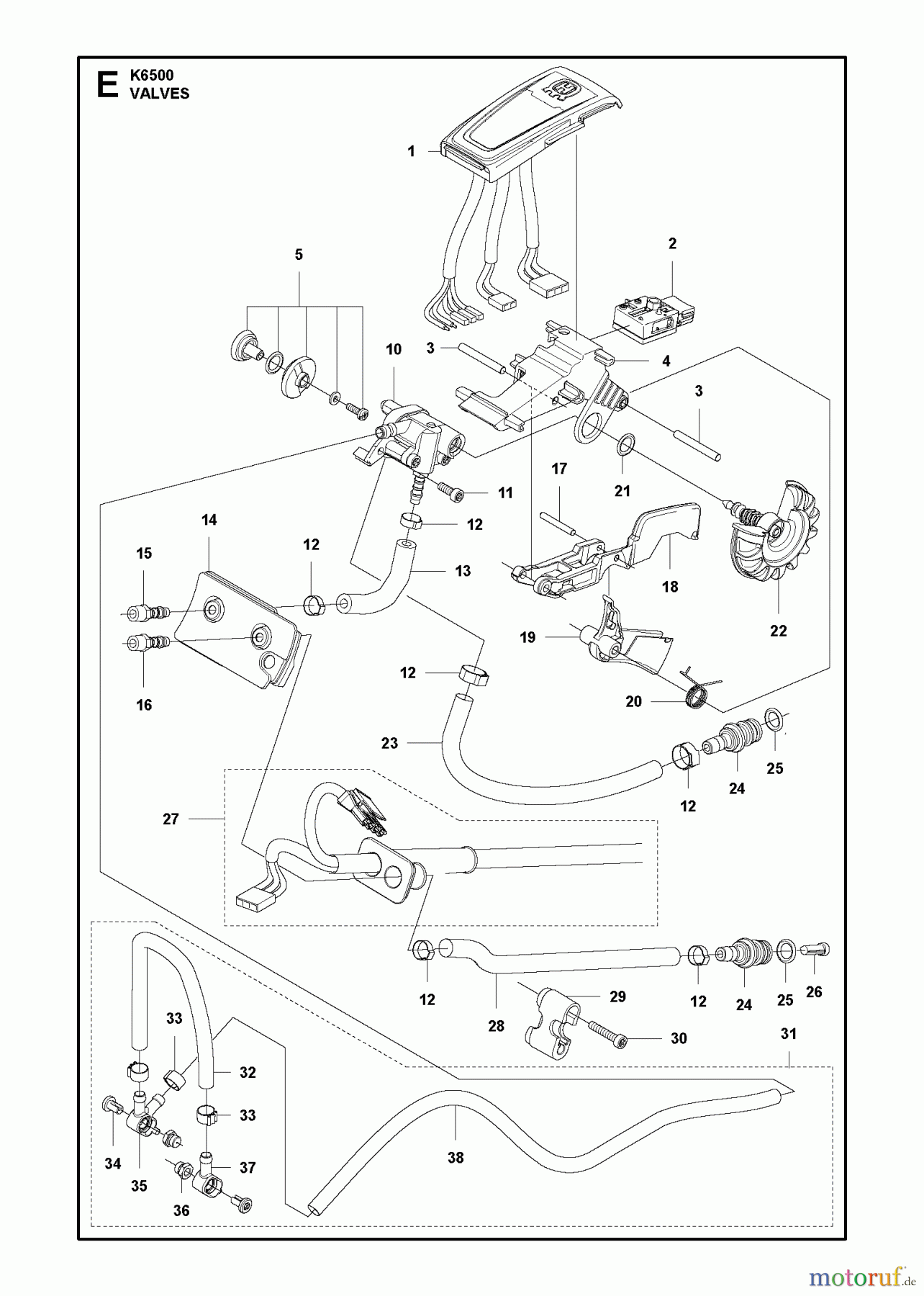

VALVES K6500, 2012-10

Posizione		Articolo numero	Descrizione
1		585 41 21-01
2		525 39 64-01
3		720 13 18-06
4		524 42 90-01
10		522 96 02-01
11		504 90 94-14	SCHRAUBE
12		576 12 97-01	Schlauchschelle
13		580 66 81-01
14		575 29 54-01
15		506 24 88-04
16		506 24 88-03
17		720 12 76-06	BOLZEN
18		574 82 49-01
19		522 99 72-01
20		574 35 42-01
21		740 43 03-00	O-RING
22		525 52 20-01
23		506 60 75-07
24		506 28 91-03
25		505 10 35-01	O-RING
26		506 29 88-01	SIEB
27		522 93 61-01
28		506 60 75-02	SCHLAUCH L=530MM
29		525 32 28-01
30		504 90 94-25	SCHRAUBE
31		505 09 54-05
32		506 60 68-03
33		506 49 87-01	SCHLAUCHKLEMME
34		504 63 46-01	DUESENSCHRAUBE
35		504 63 44-01	GEHAEUSE
36		504 63 42-01	DUESE
37		504 63 45-01	DUESENHALTER LINKS
38		506 60 68-16
