Trennschneider, Cut-Off CYLINDER, PISTON & MUFFLER Ricambi

• Start
• Trennschneider, Cut-Off
• K650 Cut-n-Break, 2007-10
• CYLINDER, PISTON & MUFFLER

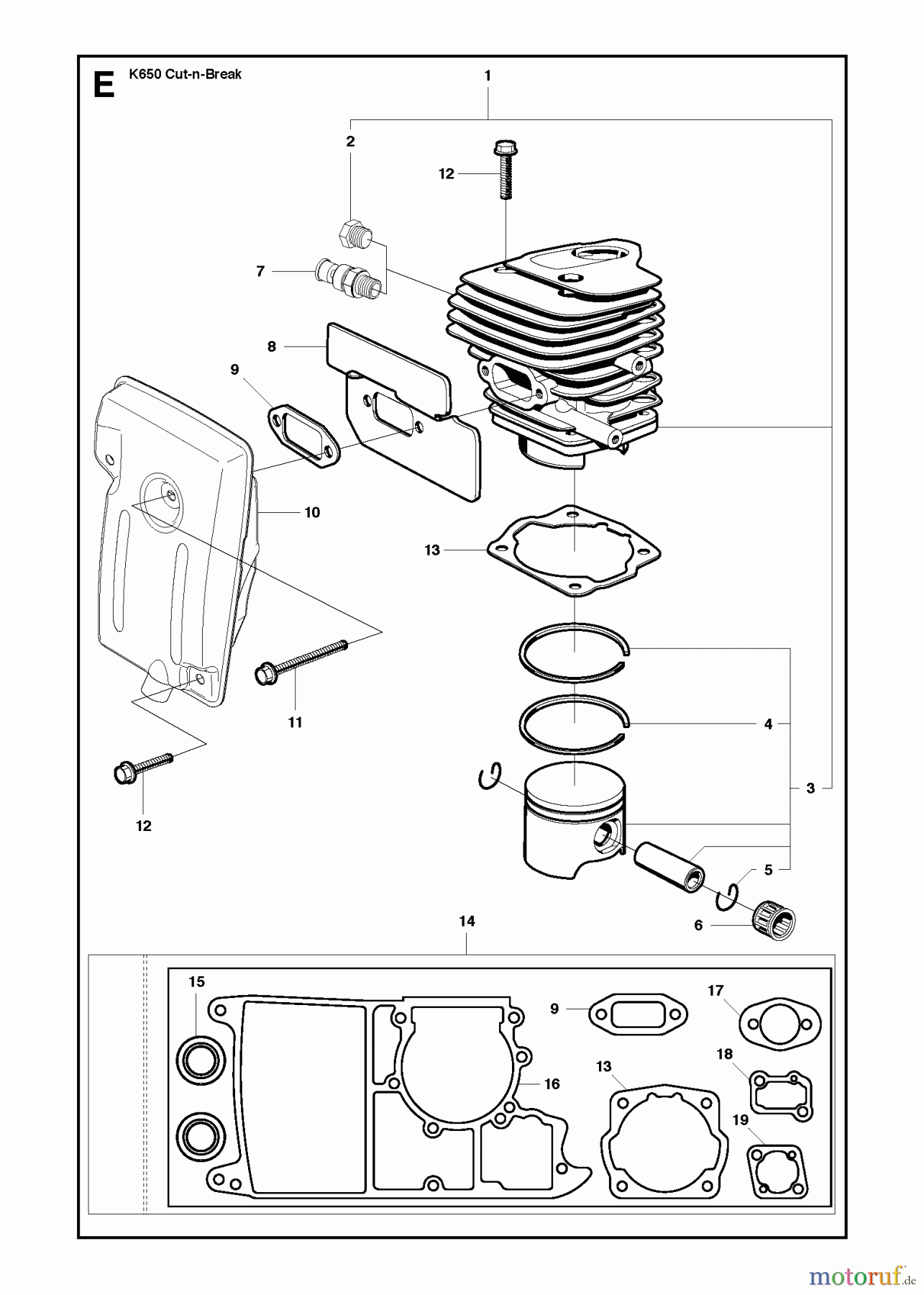

CYLINDER, PISTON & MUFFLER K650 Cut-n-Break, 2007-10

Posizione		Articolo numero	Descrizione
1		506 24 37-14	ZYLINDER KPL.
2		503 55 22-01	PFROPFEN
3		506 38 46-02	KOLBEN
4		503 28 90-17	KOLBENRING
5		737 43 12-00	FEDERRING
6		505 30 23-33	Nadellager
7		503 71 53-01	VENTIL DEKOMPR.
8		506 34 07-01	PLATTE
9		506 34 06-01	DICHTUNG
10		506 38 08-14	SCHALLDAEMPFER
11		503 20 00-47	SCHRAUBE
12		503 20 00-05	SCHRAUBE
13		503 49 10-01	DICHTUNG
14		544 38 42-02	DICHTUNGSSATZ
15		503 26 02-04	SIMMERRING
16		503 44 31-01	DICHTUNG
17		506 09 64-01	DICHTUNG
18		506 32 03-01	DICHTUNG
19		506 32 02-01	Dichtung
