Trennschneider, Cut-Off GUARDS Ricambi

• Start
• Trennschneider, Cut-Off
• K3600 MkII, 2007-01
• GUARDS

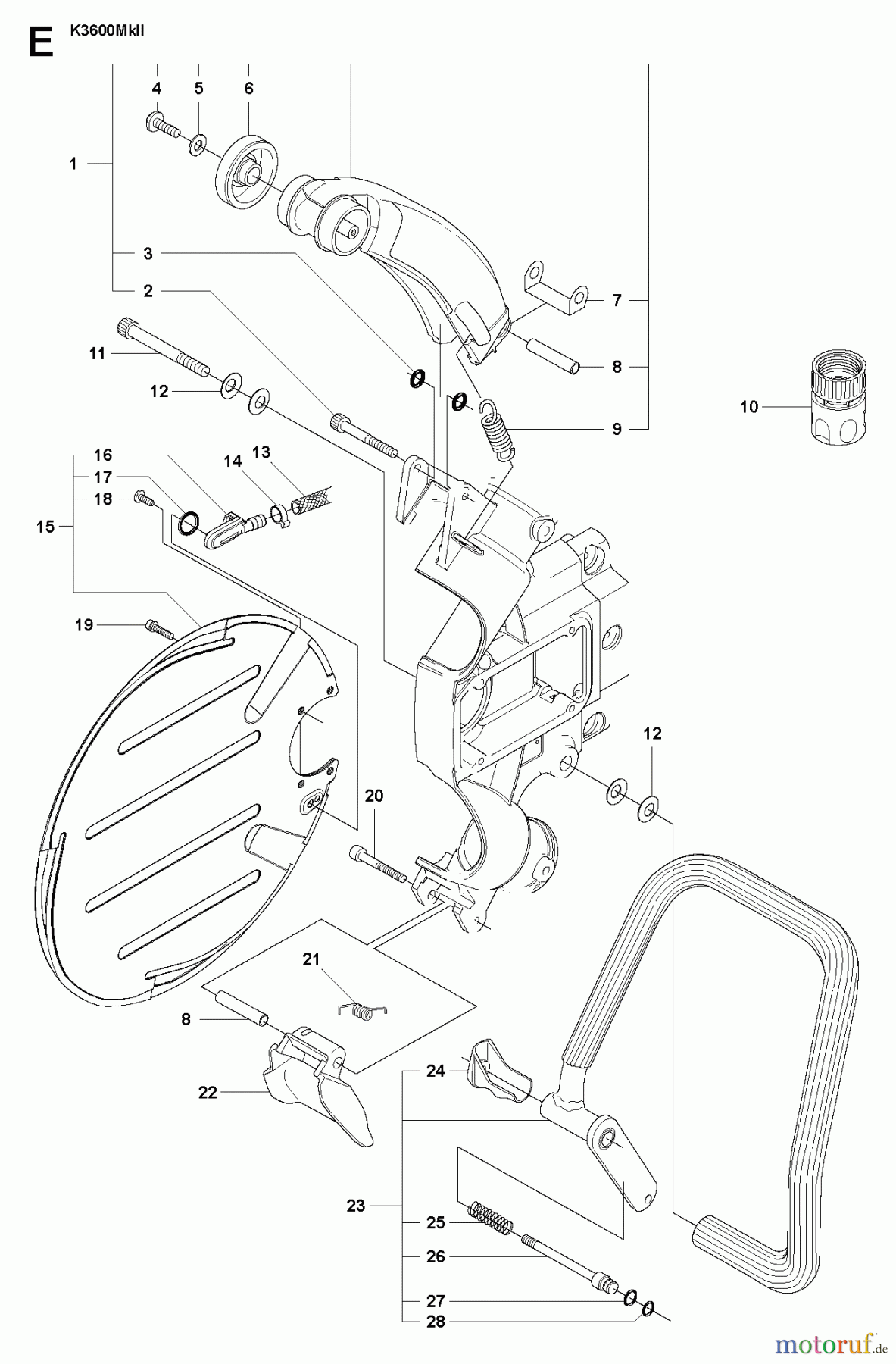

GUARDS K3600 MkII, 2007-01

Posizione		Articolo numero	Descrizione
1		506 24 69-05	SAEGEBLATTSCHUTZ
2		725 53 80-06	SCHRAUBE
3		503 26 30-25	O-RING
4		503 21 46-01	SCHRAUBE
5		734 48 80-01	SCHEIBE
6		506 26 22-02	RAD
7		506 31 28-01	PLATTE
8		506 31 45-01	ROHR
9		506 29 23-01	FEDER
10		506 26 60-02
11		725 54 69-05	SCHRAUBE
12		506 10 55-01	SCHEIBE
13		506 09 58-14
14		506 09 56-03	KLAMMER
15		506 38 33-02	STABILISATOR
16		506 38 29-01	NIPPEL
17		503 26 30-21	O-RING
18		729 52 89-71	SCHRAUBE
19		725 53 27-55	SCHRAUBE
20		725 53 79-56	SCHRAUBE
21		506 25 75-01	FEDER
22		506 25 68-02	SPRITZSCHUTZ
23		506 35 72-04	HANDGRIFF
24		506 35 73-02	GRIFF
25		506 24 95-01	FEDER
26		544 13 74-01	STIFT
27		503 26 30-22	O-RING
28		740 43 03-00	O-RING
