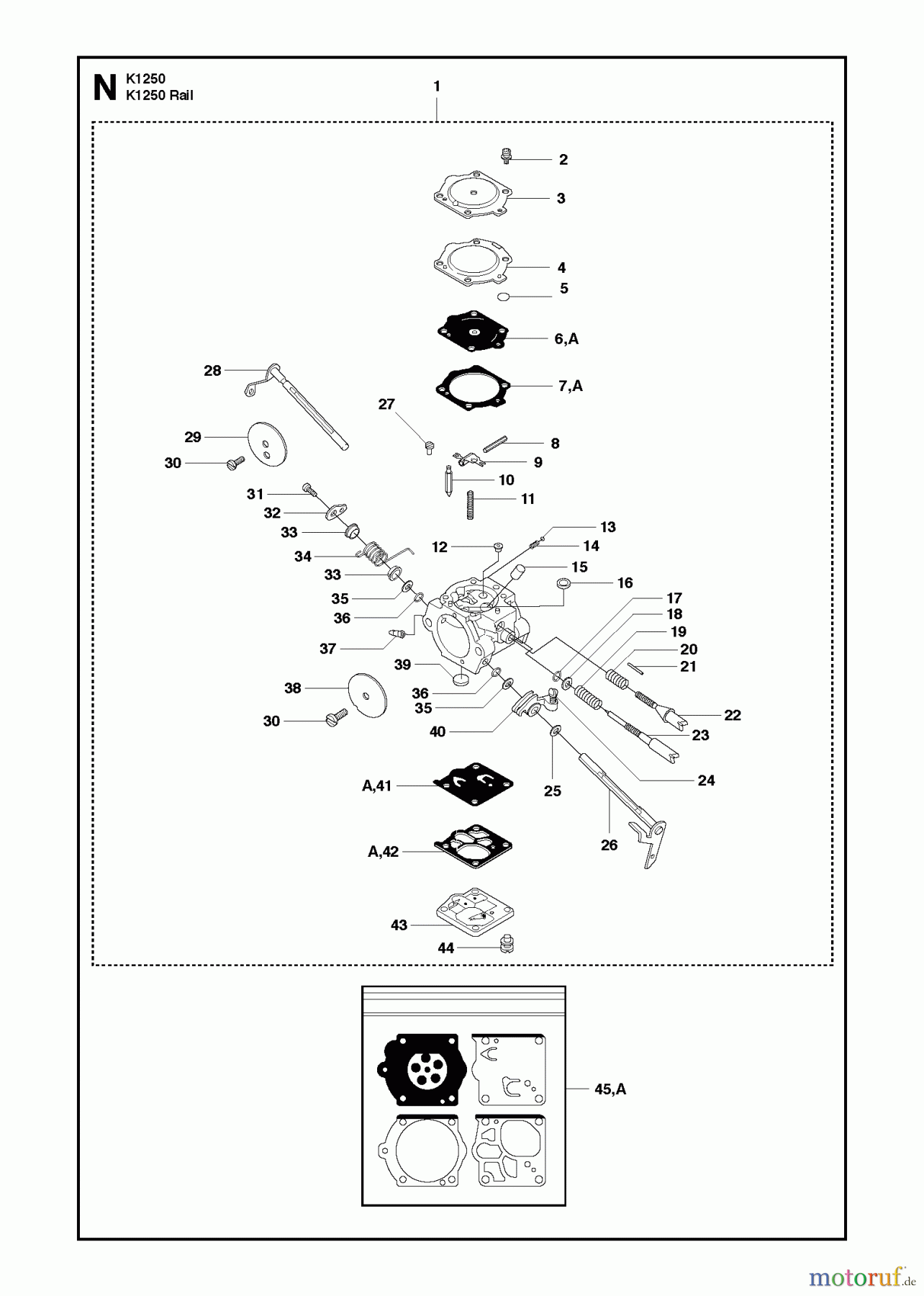

CARBURETOR DETAILS K1250 Rail, 2010-02

Posizione		Articolo numero	Descrizione
1		503 28 12-17	VERGASER
2		537 00 31-01	SCHRAUBE
3		501 69 28-01	DECKEL
4		537 00 29-01	EINSATZ
5		537 00 28-01	O-RING
6		503 63 28-01	MEMBRANE
7		501 46 75-01	DICHTUNG
8		505 31 67-31	HEBELACHSE
9		505 31 67-34	HEBEL
10		503 56 34-01	Nadelventil
11		505 31 67-23	FEDER
13		501 46 85-01	KUGEL
14		501 46 84-01	FEDER
15		503 97 66-01	MUNDSTUECK
16		503 57 42-01	PFROPFEN
17		503 59 55-01	O-RING
18		503 59 72-01	SCHEIBE
19		505 31 67-37	FEDER
20		503 63 31-01	FEDER
21		503 52 60-01	STIFT
22		503 63 29-01	SCHRAUBE
23		503 63 32-01	SCHRAUBE
24		503 59 65-01	SCHRAUBE
25		506 02 83-01	SCHEIBE
26		503 59 59-01	GASZUG
27		505 31 67-17	SCHRAUBE
28		537 00 30-01	CHOKEWELLE
29		503 52 58-01	CHOKEKLAPPE
30		530 03 50-15	SCHRAUBE
31		503 19 22-01	SCHRAUBE
32		503 59 56-01	HEBEL
33		502 10 31-01	BUCHSE
34		503 52 59-01	FEDER
35		505 31 67-48	SCHEIBE
36		503 56 45-01	DICHTUNGSRING
37		503 59 84-01	NIPPEL
38		503 63 24-01	DROSSELKLAPPE
39		501 66 61-01	SIEB
40		503 59 57-01	HEBEL
41		503 11 73-01	MEMBRANE
42		503 11 72-01	DICHTUNG
43		503 59 58-01	VERGASERDECKEL
44		503 11 75-01	SCHRAUBE M/ SCHEIBE
45		503 59 74-02	MEMBRANENSATZ
