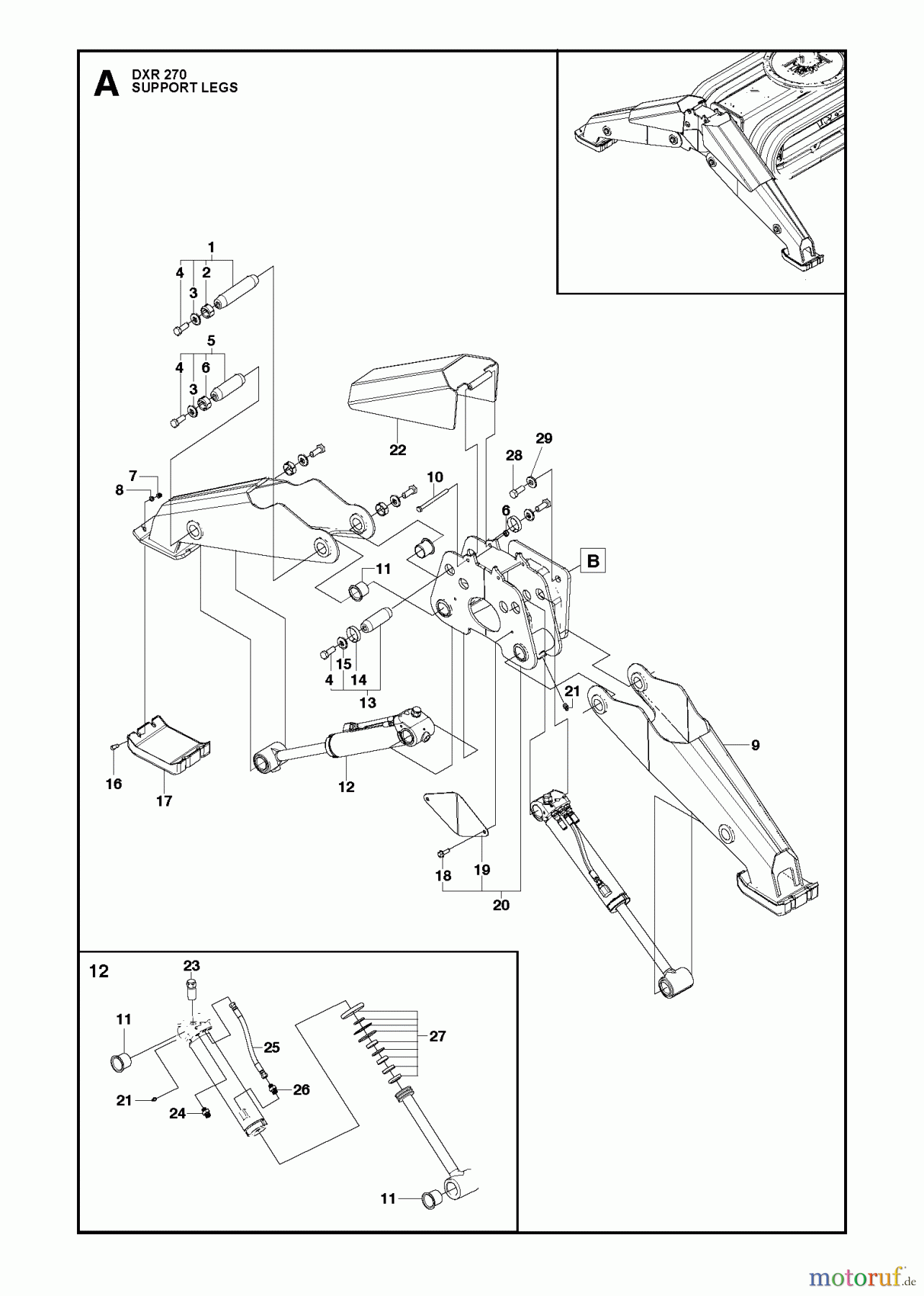

SUPPORT LEGS DXR270, Valid for machine 1 and forward, 2013-08

Posizione		Articolo numero	Descrizione
1		505 25 20-01	ACHSE KPL.
2		522 84 13-01	ABSTANDSHUELSE
3		522 84 20-01
4		522 84 23-01
5		505 25 18-01	ACHSE KPL.
6		522 84 12-01	ABSTABDSHUELSE
7		522 66 95-01	MUTTER
8		522 67 17-01	SCHEIBE
9		580 98 53-01
10		576 43 68-01	SCHRAUBE EHHFM
11		505 25 08-01	LAGERBUCHSE
12		581 00 05-01
13		505 25 15-01	ACHSE KPL.
14		522 84 11-01	ABSTANDSHUELSE
15		522 84 19-01	SCHEIBE
16		522 66 72-01	SCHRAUBE
17		505 03 46-02	FUSS DXR 140
18		574 25 89-01	SCHRAUBE
19		580 99 19-01
20		580 98 94-01
21		504 89 53-01	SCHMIERNIPPEL
22		581 63 97-01
23		581 00 03-01
24		522 73 00-01	ADAPTER
25		510 22 87-08
26		510 24 58-01	ADAPTER
27		522 85 74-01	DICHTUNG F.ZYLINDERS
28		522 80 72-01	SCHRAUBE
29		522 67 22-01	SCHEIBE
