Spareparts

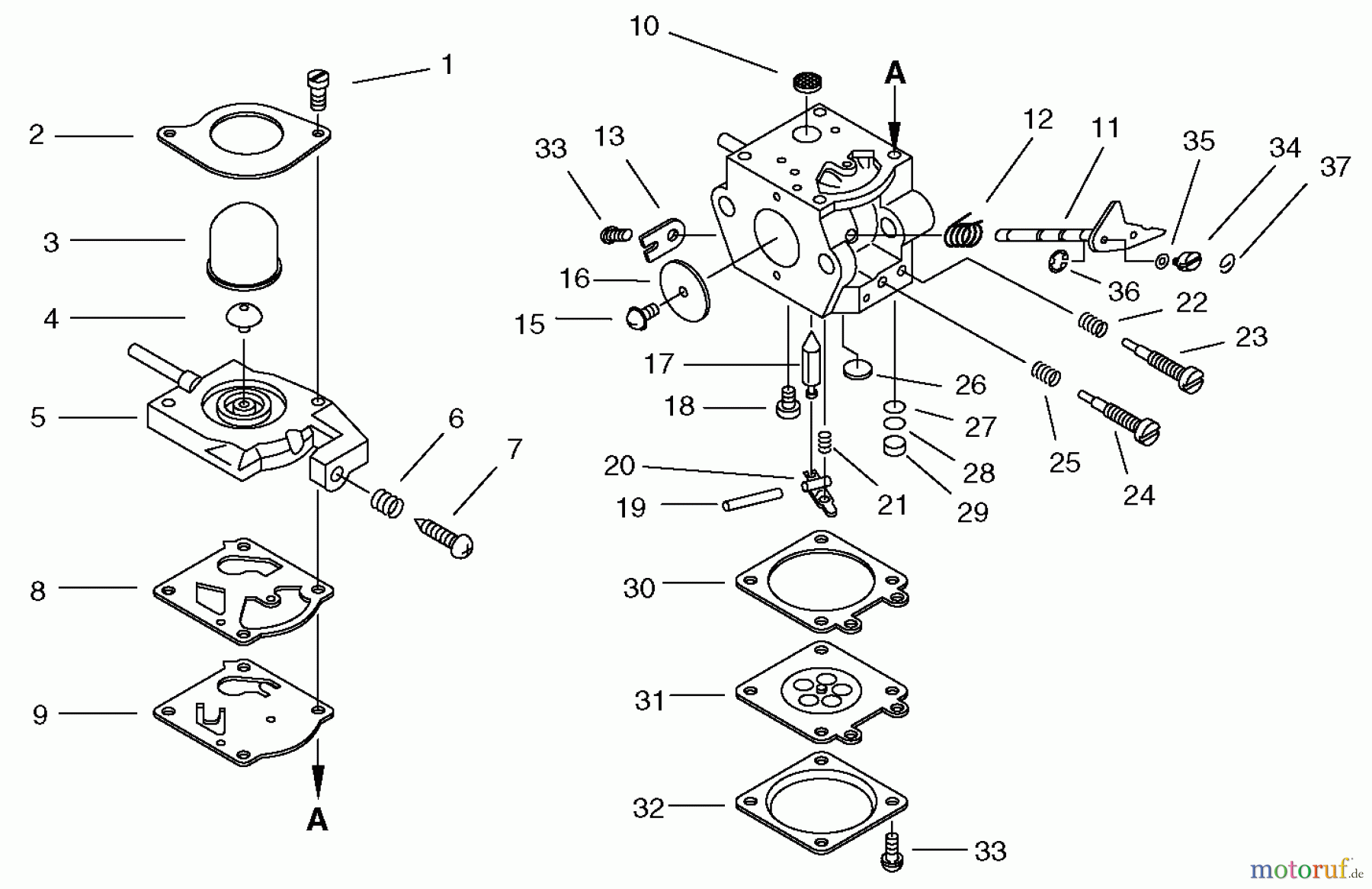

Carburetor SRM-3605U - Echo String Trimmer, S/N: 20001001 - 20999999

Posizione	Articolo numero	Descrizione
	16-123000-55630	Vergaser SRM-3150
1	16-123110-43130	Schraube
2	16-123142-09560	Deckel PPT-2400
3	16-123181-40630	Pumpe, Primer DH2200ST/PB-500/
4	16-123171-35630	Nippel HCA-2500, PB-24LN, PPT-
5	16-123124-43130	Vergaserdeckel
6	16-123133-04260	Feder CS-2600/3700/452GS/PB-
7	16-123134-04260	Einstellschraube
8	16-123125-09560	Dichtung HCA-2500, PAS-2400,
9	16-123112-09560	Pumpenmembrane HCA-2400, PAS-
10	16-123126-10631	Sieb, Vergaser, Einlass PPT-
11	16-123117-55630	Antriebswelle
12	16-123113-47530	Feder CS-3400, CLS-4610, SRM-
13	16-123127-03930	Klipp CS-3700
15	16-123114-03930	Schraube
16	16-123116-23230	Drosselklappe
17	16-123137-04260	Einlassventil
18	16-123139-03930	Schraube CS-2600/3700/452GS/
19	16-123138-03930	Stift, Ventilhalter, Vergaser
20	16-123123-38330	Ventilhebel CS-3700/4200/
21	16-123122-03660	Feder CS-4000/400EVL/452GS/
22	16-123119-22130	Feder CS-2600,3700
23	16-123120-09560	Einstellschraube SRM-3150
24	16-123118-24430	Einstellschraube
25	16-123121-22130	Feder CS-2600,3700
26	16-123146-10631	Kappe CS-2600,3700 CLS-4600,
27	16-123168-10630	Sieb
28	16-123169-10630	Ring CS-3700
29	16-123146-17330	Stift CS-3700
30	16-123140-27230	Vergaserdichtung CS-2600, SRM-
31	16-123141-03930	Membrane CS-2600,3500,3700/HC-
32	16-123142-03930	Deckel CS-2600/3700/SRM-320/
33	16-123130-02960	Schraube CS-2600/3700/6702/
34	16-123172-26030	Führung, Gaszug CLS-4610, HCA-
35	16-123149-26030	Scheibe 452GS/CSG-6700/PB-500
36	16-123173-07930	Clip DH2200ST/EA-410/PPT-300ES
37	16-V490-000440	Clip DH2200ST
