Echo SRM-3010 - String Trimmer, S/N: 001001 - 021090 Shield, Gear Case, Tools Ricambi

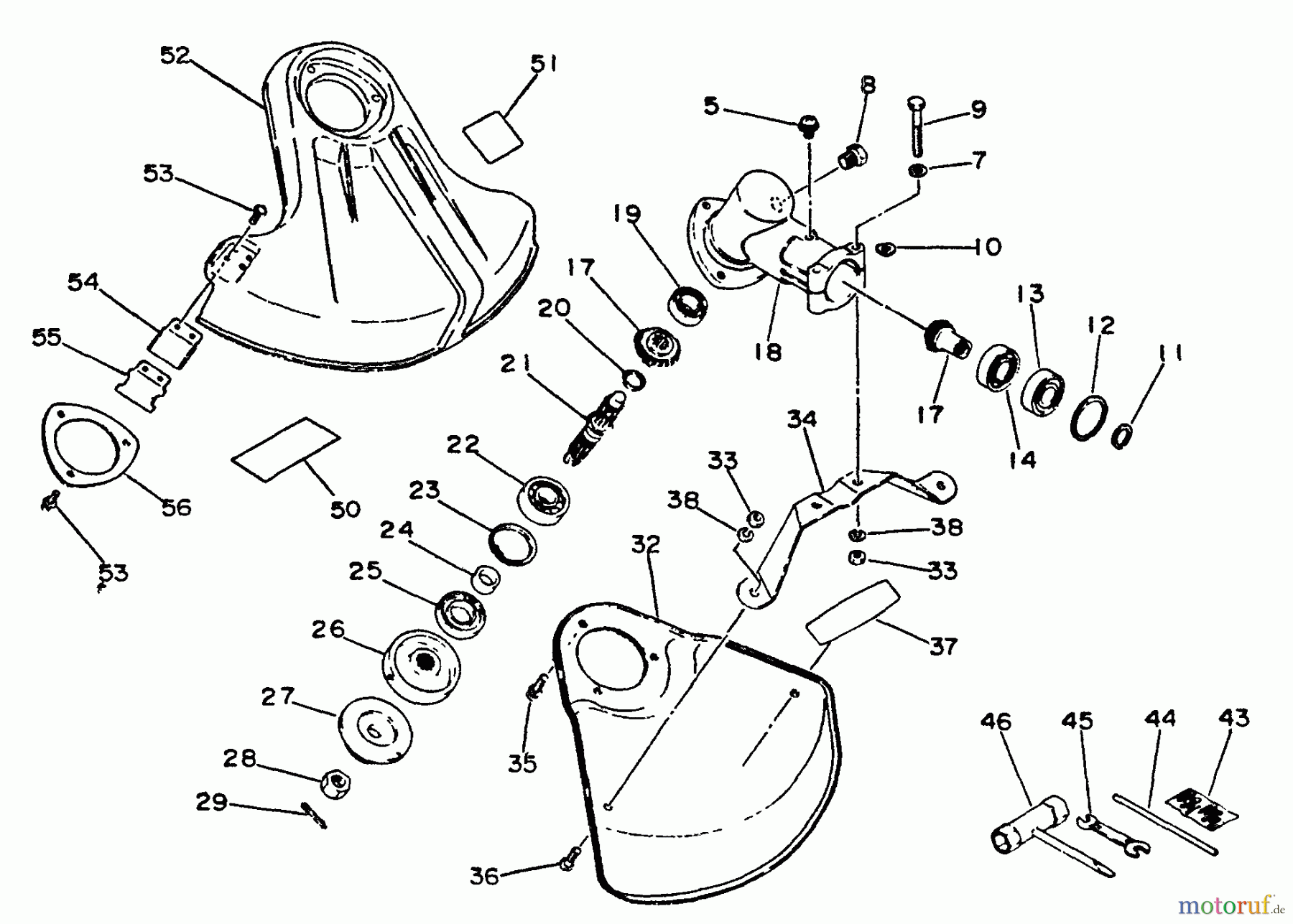

Shield, Gear Case, Tools SRM-3010 - Echo String Trimmer, S/N: 001001 - 021090

Posizione	Articolo numero	Descrizione
	1661040024534
5	16-900242-05010	Schraube PPT-300ES
7	16-900600-00005	Scheibe PB-500/452GS/DH2200ST
8	16-900100-08008	Schraube(Eisen) (10)
9	16-900100-05040	Schraube
10	16-610239-04130	Scheibe
11	16-900701-00012	Seegerring außen 12mm
12	16-900702-00028	Seegerring, innen, 28mm
13	169405106001
14	16-900800-36001	Kugellager,NSK (Nipppon
17	16-610300-40430	Getriebesatz
18	16P022007041
19	16-900800-36000	Kugellager SRM-3150, SRM-3800,
20	16-900706-00012	Haltering PPT-300ES
21	1661031041030
22	16-94035-36201	Kugellager EA-410/SHR-170SI
23	16-900702-00032	Seegerring, innen, 32mm
24	16-610315-07130	Hülse RM-380, SRM-3150/-3800
25	16-610413-07130	Simmering
26	16-610313-07132	Fixierplatte PAS-2400,
27	16C535000150
28	16-900511-00010	Linksgewindemutter f. Messer-
29	16-900300-20022	Splint PAS-2400, RMA-2530, RM-
33	16-900500-00005	Mutter PPT-300ES/T-226 EDR-
38	16-900605-00005	Scheibe PB-250/EC-7600
32	1699999999999
34	16-699015-07532	Haltebügel
35	16-900242-05010	Schraube PPT-300ES
36	16-900220-05008	Schraube
37	1689013844330
43	16-898502-01130	Splint Pack a 10 Stck
44	16-897518-01131	Blockierwerkzeug
45	16-895112-00330	Gabelschlüssel PPT-300ES
46	16-X602-000020	Kombischlüssel PAS-2400/EA-410
50	1689013840630
51	1689017740730
52	1669900040831
53	16-P021-006080	Fadenabschneider kpl. GT-2150
54	16-699212-23230	Schutz GT-2010
55	16-900242-05016	Schraube
56	16-C552-000110	Halterung Anbau-
