Echo SRM-3001 - String Trimmer, S/N: 021091 - 027000 Driveshaft, Throttle, Stop Switch, Handles, Clutch Housing Ricambi

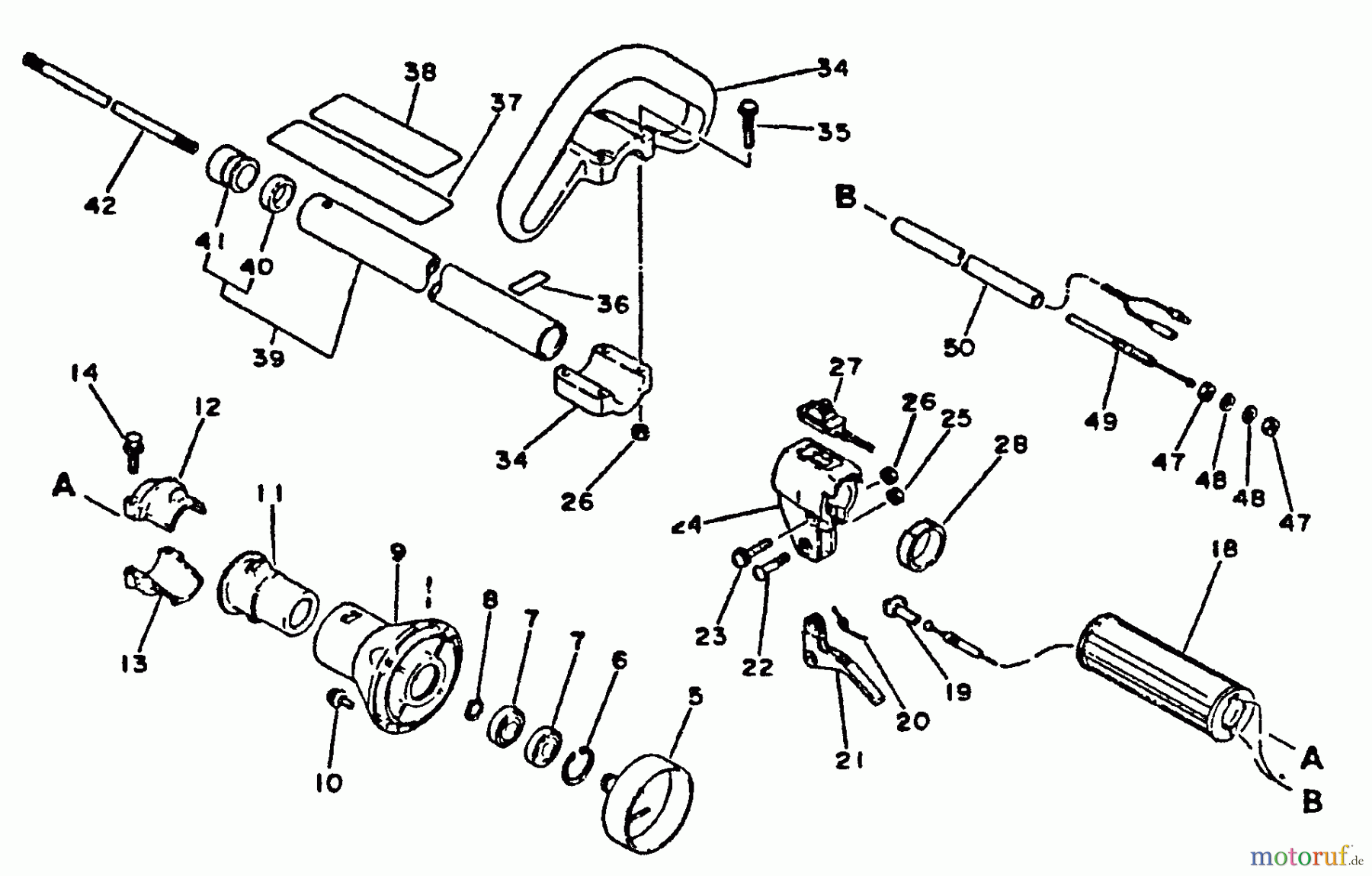

Driveshaft, Throttle, Stop Switch, Handles, Clutch Housing SRM-3001 - Echo String Trimmer, S/N: 021091 - 027000

Posizione	Articolo numero	Descrizione
5	16-175005-40430	Kupplungstrommel SRM-310E
6	16-900702-00028	Seegerring, innen, 28mm
7	16-900802-06001	Kugellager
8	16-900701-00012	Seegerring außen 12mm
9	1661020541030
10	16-900242-05016	Schraube
11	16-610910-40430	Gummilager
12	16-610922-40430	Halter SRM-3800, SRM-4600
13	16-610923-40430	Halter
14	16-900142-05025	Schraube HCA-2400, PAS-2400,
18	1699999999999
19	16-178048-05630	Halterung RM-310, SRM-200AE,
20	16-178043-06930	Feder RM-310, SRM-200AE, SRM-
21	16C450000060
22	16-178110-05330	Schraube
23	16-900242-05030	Schraube
24	1617802407530
25	16-900560-00005	Mutter M5, selbstsichernd (10)
26	16-900500-00005	Mutter PPT-300ES/T-226 EDR-
27	16-163400-49330	Stopschalter SRM-2655L
28	1617807641030
34	16-351201-06930	Zsb. Griff SRM-343SL, SRM-3550
35	16-900242-05035	Schraube SRM 4000 L/ 5000 L
36	16	16
39	1661020441030
37	1689016049630
38	1689016052730
40	16-610112-04930	Ring Produktion eingestellt
41	16-610105-04930	Antriebsstück Produktion
42	16-610011-06230	Antriebswelle SRM-3150, 4600
47	16-900502-00006	Mutter SRMF-340 6 (3N)
48	16-900600-00006	Scheibe
49	1617800140930
50	1617812740930
