Echo SRM-3000 - String Trimmer, S/N:043226 - 999999 Engine, Crankcase, Fan Housing, Cover Ricambi

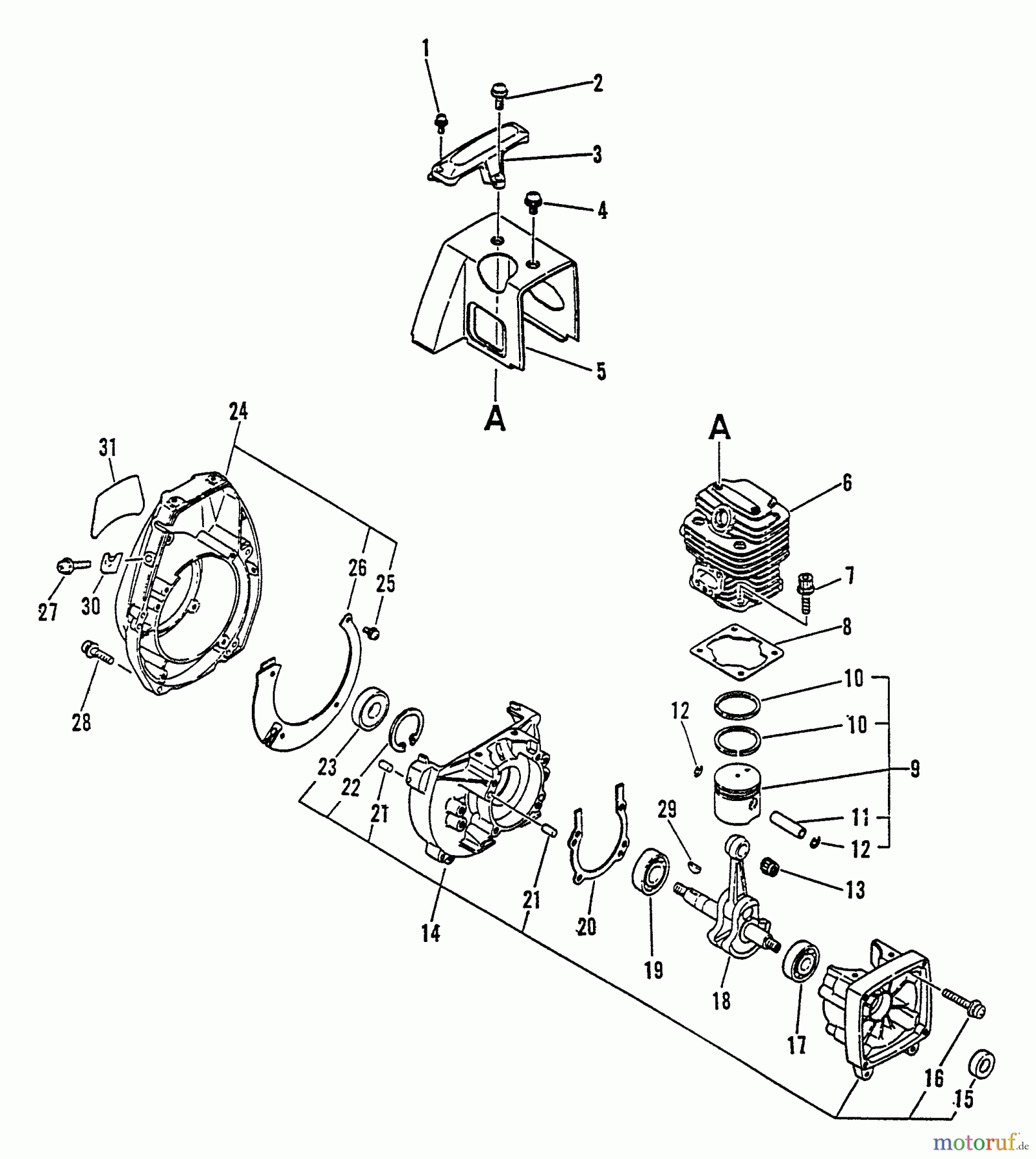

Engine, Crankcase, Fan Housing, Cover SRM-3000 - Echo String Trimmer, S/N:043226 - 999999

Posizione	Articolo numero	Descrizione
1	16-900238-04014	Schraube 4x14
2	16-900238-05016	Schraube 5*16
3	1699999999999
4	16-900238-05010	Schraube M5x10
5	1610151449730
6	16-101011-27530	Zylinder SRM 310
7	16-900162-05020	Schraube M5x20 PB-6000/-46LN/-
8	16-101010-21230	Fussdichtung(Papier)
9	16-100000-27431	Kolben kpl. SRM-310 + Rm-310
10	16-100011-16131	Kolbenring SRM-320
11	16-100013-27430	Kolbenbolzen SRM-320, SRM-350
12	16-100015-03931	Sicherungsring
13	16-100012-16131	Nadellager SRM-320/SRM-350/
14	1610020427430
15	16-100213-05530	Simmerring SRM-320/350/RM-
16	16-900238-05030	Schraube 5x30
17	16-94035-36201	Kugellager EA-410/SHR-170SI
18	16-100100-21230	ZSB-Kurbelwelle SRM-310
19	16-900810-36202	Kugellager PB-500/EA-410/EC-
20	16	16
21	16-100215-02830	Bolzen Produktion eingestellt
22	16-900702-00035	Seegerring, innen, 35mm
23	16-100212-05730	Simmerring
24	1610150351830
25	16-900238-04008	Schraube
26	16-101534-21230	Schutzplatte
27	16-900238-04010	Schraube M4 x 10 ES-2400,PB-
28	16-900238-05025	Schraube 5x25
29	16-100142-00310	Polradkeil
30	1617812151330
31	1689014041030
31	1688900051830
31	16	16
31	16-101010-21230	Fussdichtung(Papier)
31	16-130010-27531	Dichtung(Papier)
31	1613001640931
31	1613002240931
31	16-145510-27531	Auspuffdichtung SRM-310E
31	16-145866-27231	Auspuffdichtung
