Echo SRM-3000 - String Trimmer, S/N:034001 - 037500 Intake, Exhaust, Air Cleaner Ricambi

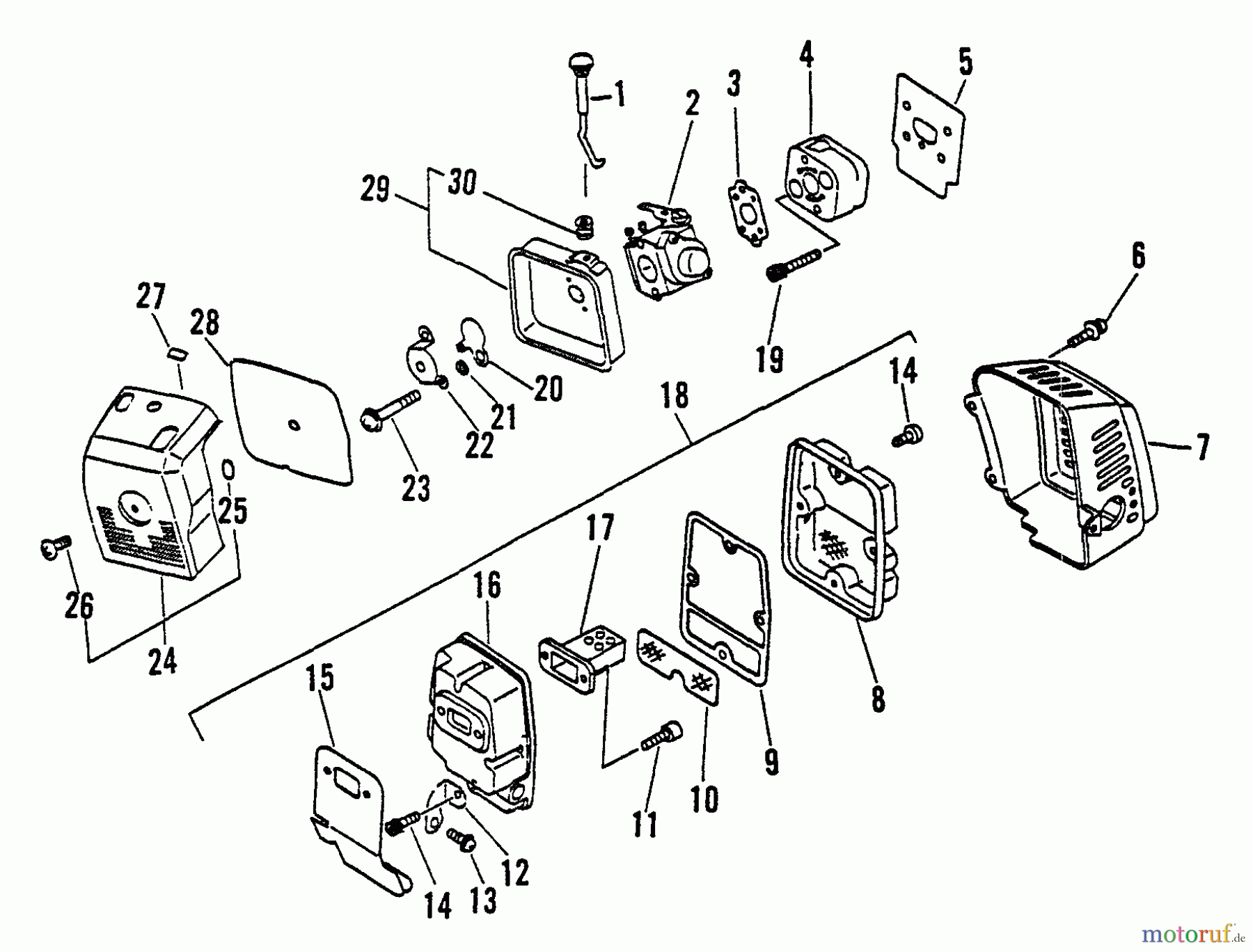

Intake, Exhaust, Air Cleaner SRM-3000 - Echo String Trimmer, S/N:034001 - 037500

Echo Trimmer, Faden / Bürste SRM-3000 - Echo String Trimmer, S/N:034001 - 037500 Intake, Exhaust, Air Cleaner
PosizioneArticolo numeroDescrizione
1 16-178510-51730Chokegestänge
2 1612520051331
3 16-130016-42031Dichtung(Papier)
4 1613000751330
5 16-130010-27531Dichtung(Papier)
6 16-900238-04008Schraube
7 1614562151831
8 1614586151330
9 1614586651330
10 1699999999999
11 16-900105-05018Schraube 452GS (10)
12 1614571151330
13 16-900238-05010Schraube M5x10
14 16-900162-05014Schraube M 5x14
15 1614551051330
16 1614581051330
17 1614585951230
18 1614580051330
19 16-900162-05025Schraube 5x25 CS-5100/PB-46LN/
20 16-178515-05060Chokeklappe HCA-2500, HCR-
21 16-178516-00830Distanzring GT-2150, HCA-2500,
22 1612901151730
23 16-900238-05045Schraube
24 16-130302-51731Luftfilterdeckel SRM-3150
25 16-900720-00003O-Ring(Gummi)
26 16-130406-14330Rändelmutter
27 1689012152130
28 16-130310-51730Luftfilter SRM-3150
28 16-130310-51830Luftfilter SRM-2655 HCA-2400/
29 16-130314-51730Luftfiltergehäuse HCA-2400
30 16-178810-05230Dichtring HCA-2500, HCR-1510,
