Echo SRM-3000 - String Trimmer, S/N:027001 - 034000 Shield, Gear Case, Tools Ricambi

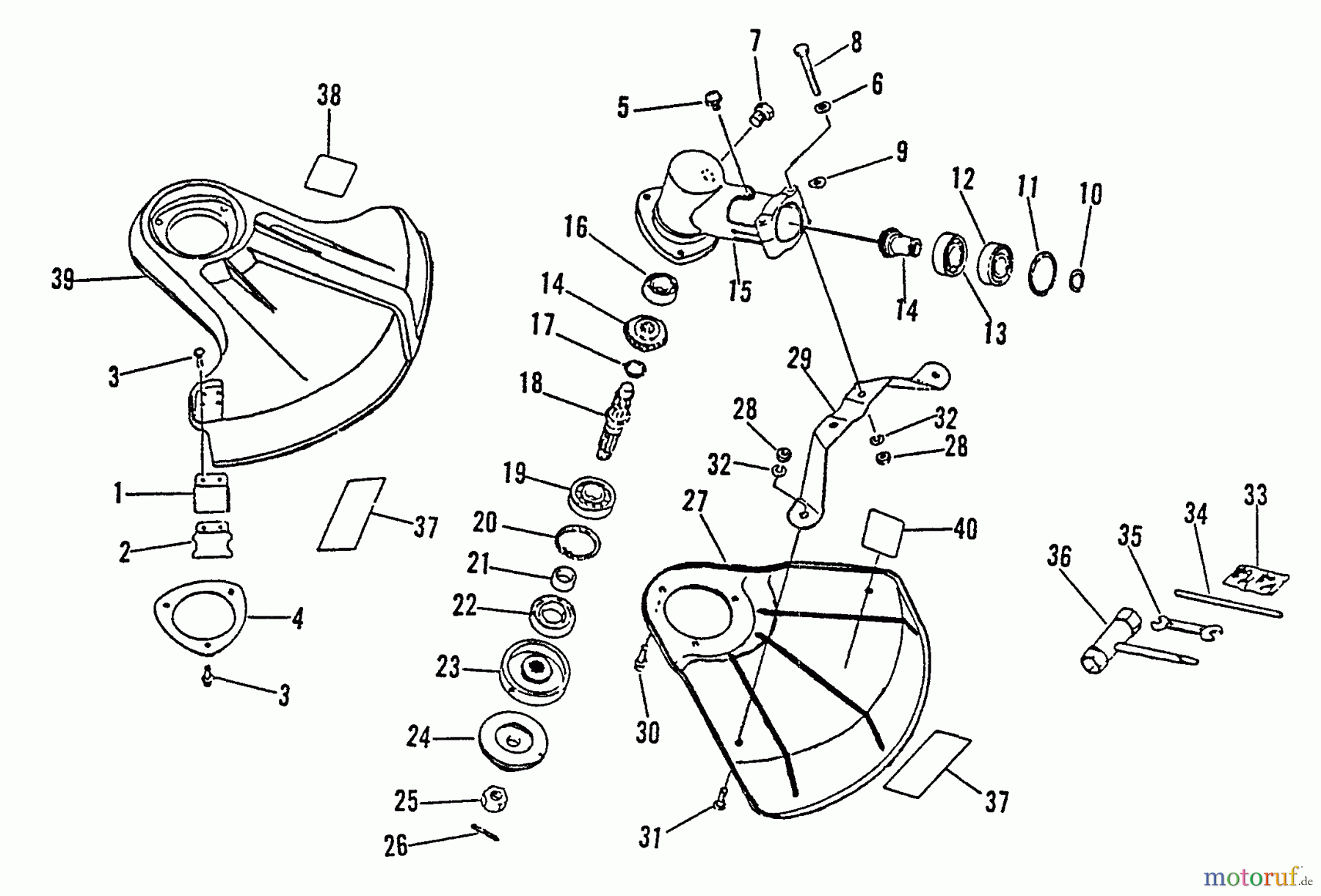

Shield, Gear Case, Tools SRM-3000 - Echo String Trimmer, S/N:027001 - 034000

Posizione	Articolo numero	Descrizione
	1661040024534
1	16-P021-006080	Fadenabschneider kpl. GT-2150
2	16-699212-23230	Schutz GT-2010
3	16-900242-05016	Schraube
4	16-C552-000110	Halterung Anbau-
5	16-900242-05010	Schraube PPT-300ES
6	16-900600-00005	Scheibe PB-500/452GS/DH2200ST
7	16-900100-08008	Schraube(Eisen) (10)
8	16-900100-05040	Schraube
9	16-610239-04130	Scheibe
10	16-900701-00012	Seegerring außen 12mm
11	16-900702-00028	Seegerring, innen, 28mm
12	169405106001
13	16-900800-36001	Kugellager,NSK (Nipppon
14	16-610300-40430	Getriebesatz
15	16P022007041
16	16-900800-36000	Kugellager SRM-3150, SRM-3800,
17	16-900706-00012	Haltering PPT-300ES
18	1661031041030
19	16-94035-36201	Kugellager EA-410/SHR-170SI
20	16-900702-00032	Seegerring, innen, 32mm
21	16-610315-07130	Hülse RM-380, SRM-3150/-3800
22	16-610413-07130	Simmering
23	16-610313-07132	Fixierplatte PAS-2400,
24	16C535000150
25	16-900511-00010	Linksgewindemutter f. Messer-
26	16-900300-20022	Splint PAS-2400, RMA-2530, RM-
27	1669900023532
28	16-900500-00005	Mutter PPT-300ES/T-226 EDR-
29	1669901523532
30	16-900242-05010	Schraube PPT-300ES
31	16-900220-05008	Schraube
32	16-900605-00005	Scheibe PB-250/EC-7600
33	16-898502-01130	Splint Pack a 10 Stck
34	16-897518-01131	Blockierwerkzeug
35	16-895112-00330	Gabelschlüssel PPT-300ES
36	16-X602-000020	Kombischlüssel PAS-2400/EA-410
37	16X502000320
38	1689016844830
39	1669900040930
40	1689016841031
