Echo SRM-3000 - String Trimmer, S/N:027001 - 034000 Intake, Exhaust, Air Cleaner Ricambi

• Start
• Echo
• Trimmer, Faden / Bürste
• SRM-3000 - Echo String Trimmer, S/N:027001 - 034000
• Intake, Exhaust, Air Cleaner

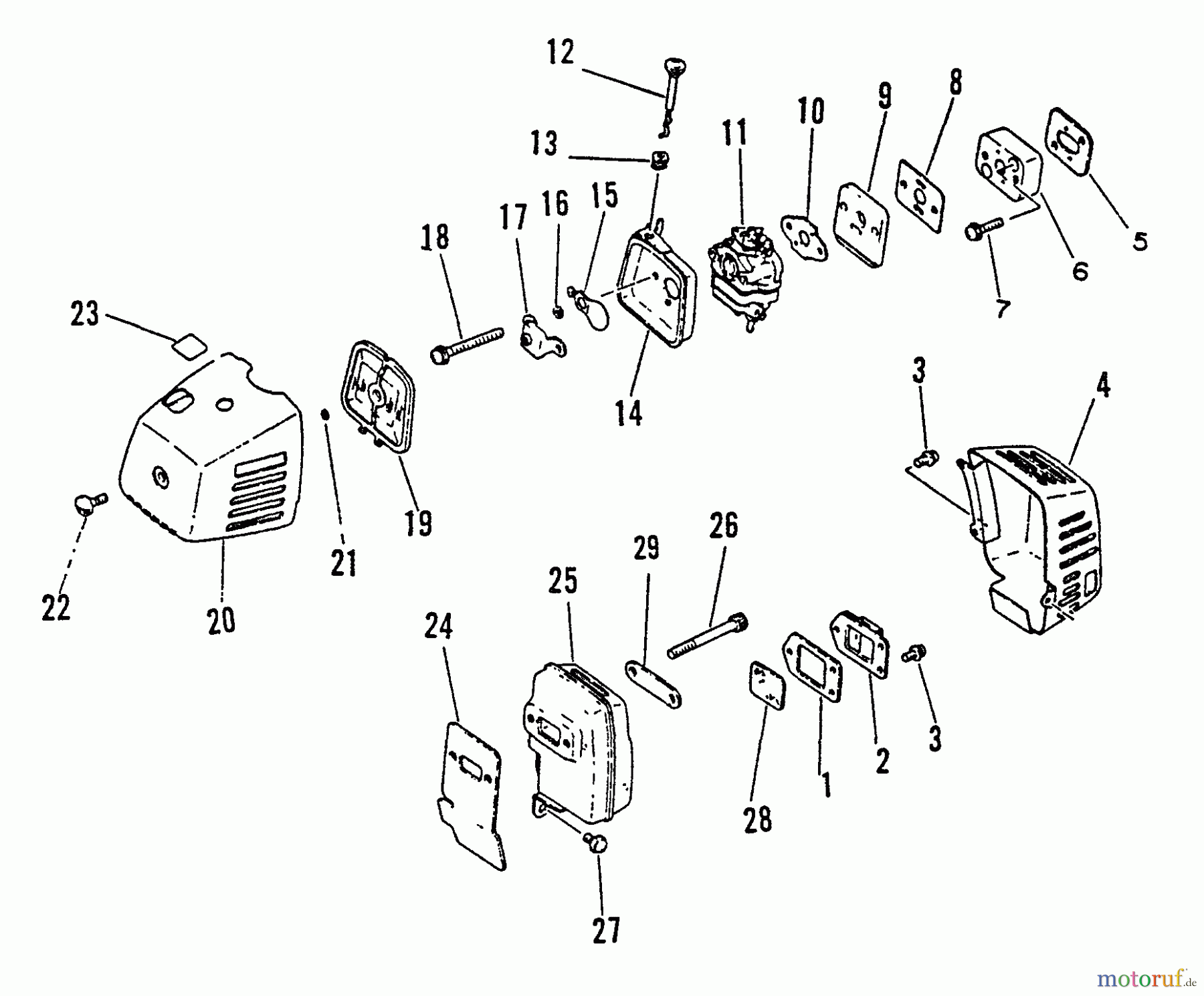

Intake, Exhaust, Air Cleaner SRM-3000 - Echo String Trimmer, S/N:027001 - 034000

Posizione		Articolo numero	Descrizione
1		1699999999999
2		1614580941030
3		16-900238-04008	Schraube
4		1614587141031
5		16-130010-27531	Dichtung(Papier)
6		1613000741030
7		16-900238-05020	Schraube 5x20
8		1613002240931
9		1613002641030
10		1613001640931
11		16	16
12		1617851049130
13		16-178810-05230	Dichtring HCA-2500, HCR-1510,
14		1613030740930
15		1617851540630
16		16-178516-00830	Distanzring GT-2150, HCA-2500,
17		1612900640930
18		16-900238-05050	Schraube 5 x 50 CS-2600
19		1613031040930
20		1613030241030
21		16-900720-00004	O- Ring/SHR-170SI
22		16-130415-40630	Schraube
23		16-X506-000070	Aufkleber CHOKE HCR-1510
24		16-145510-27531	Auspuffdichtung SRM-310E
25		1614580641030
26		16-900105-05055	Schraube EA-410/SHR-170SI/T-
27		16-900238-05010	Schraube M5x10
28		1614586227230
29		16-145642-22330	Scheibe
