Echo SRM-3000 - String Trimmer, S/N:027001 - 034000 Engine, Crankcase, Fan Housing, Cover Ricambi

Engine, Crankcase, Fan Housing, Cover SRM-3000 - Echo String Trimmer, S/N:027001 - 034000

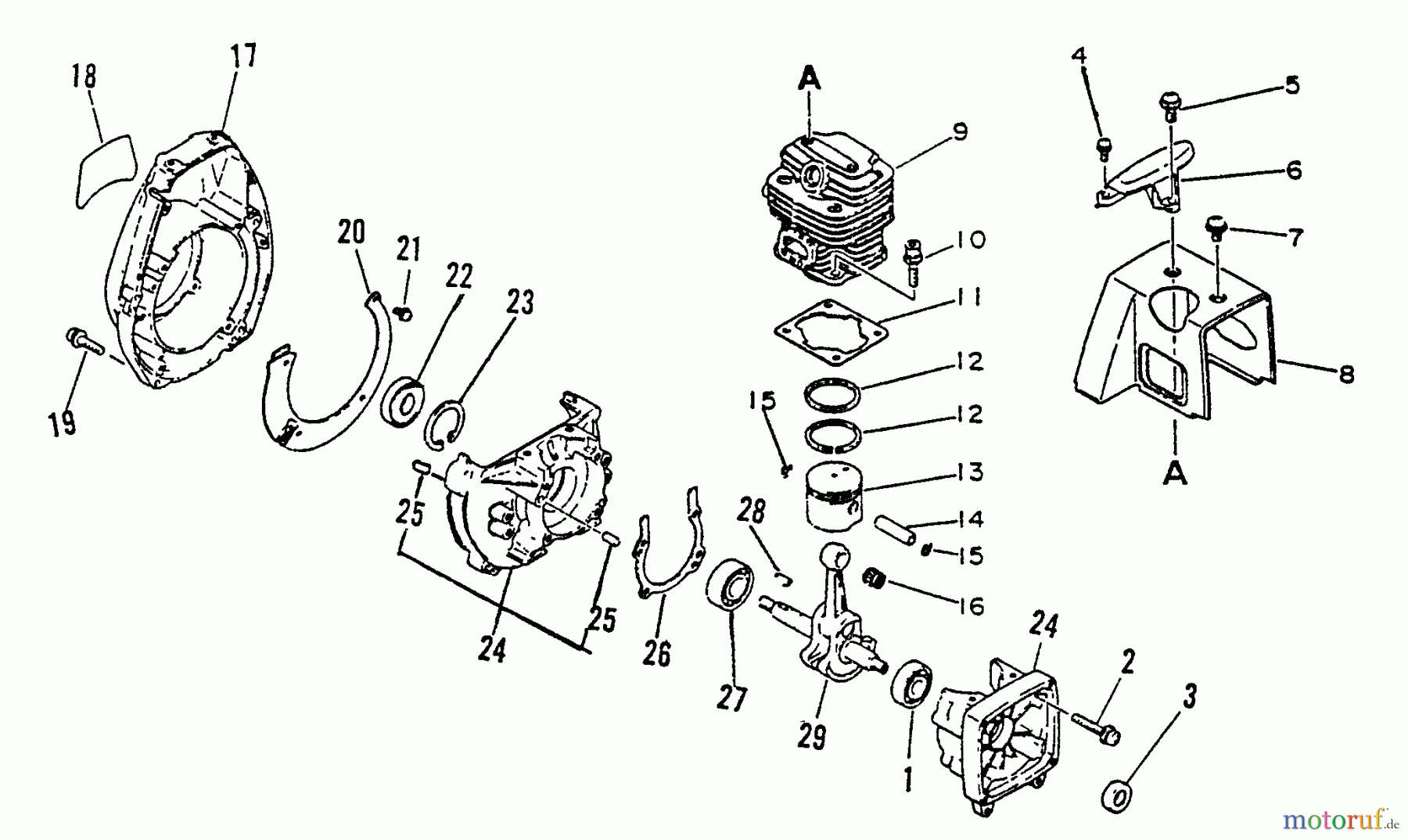

Echo Trimmer, Faden / Bürste SRM-3000 - Echo String Trimmer, S/N:027001 - 034000 Engine, Crankcase, Fan Housing, Cover
PosizioneArticolo numeroDescrizione
1 16-94035-36201Kugellager EA-410/SHR-170SI
2 16-900238-05030Schraube 5x30
3 16-100213-05530Simmerring SRM-320/350/RM-
4 16-900238-04014Schraube 4x14
5 16-900238-05016Schraube 5*16
6 1699999999999
7 16-900238-05010Schraube M5x10
8 1610151449730
9 16-101011-27530Zylinder SRM 310
10 16-900162-05020Schraube M5x20 PB-6000/-46LN/-
11 16-101010-21230Fussdichtung(Papier)
12 16-100011-16131Kolbenring SRM-320
13 16-100000-27430Kolben kpl. SRM-310 + Rm-310
14 16-100013-27430Kolbenbolzen SRM-320, SRM-350
15 16-100015-03931Sicherungsring
16 16-100012-16131Nadellager SRM-320/SRM-350/
17 1610151149730
18 1689014041030
19 16-900238-05025Schraube 5x25
20 16-101534-21230Schutzplatte
21 16-900238-04008Schraube
22 16-100212-05730Simmerring
23 16-900702-00035Seegerring, innen, 35mm
24 16-100200-27430Kurbelgehäuse
25 16-100215-02830Bolzen Produktion eingestellt
26 1616
27 16-900810-36202Kugellager PB-500/EA-410/EC-
28 16-100142-00310Polradkeil
29 16-100100-21230ZSB-Kurbelwelle SRM-310
1688900041031
