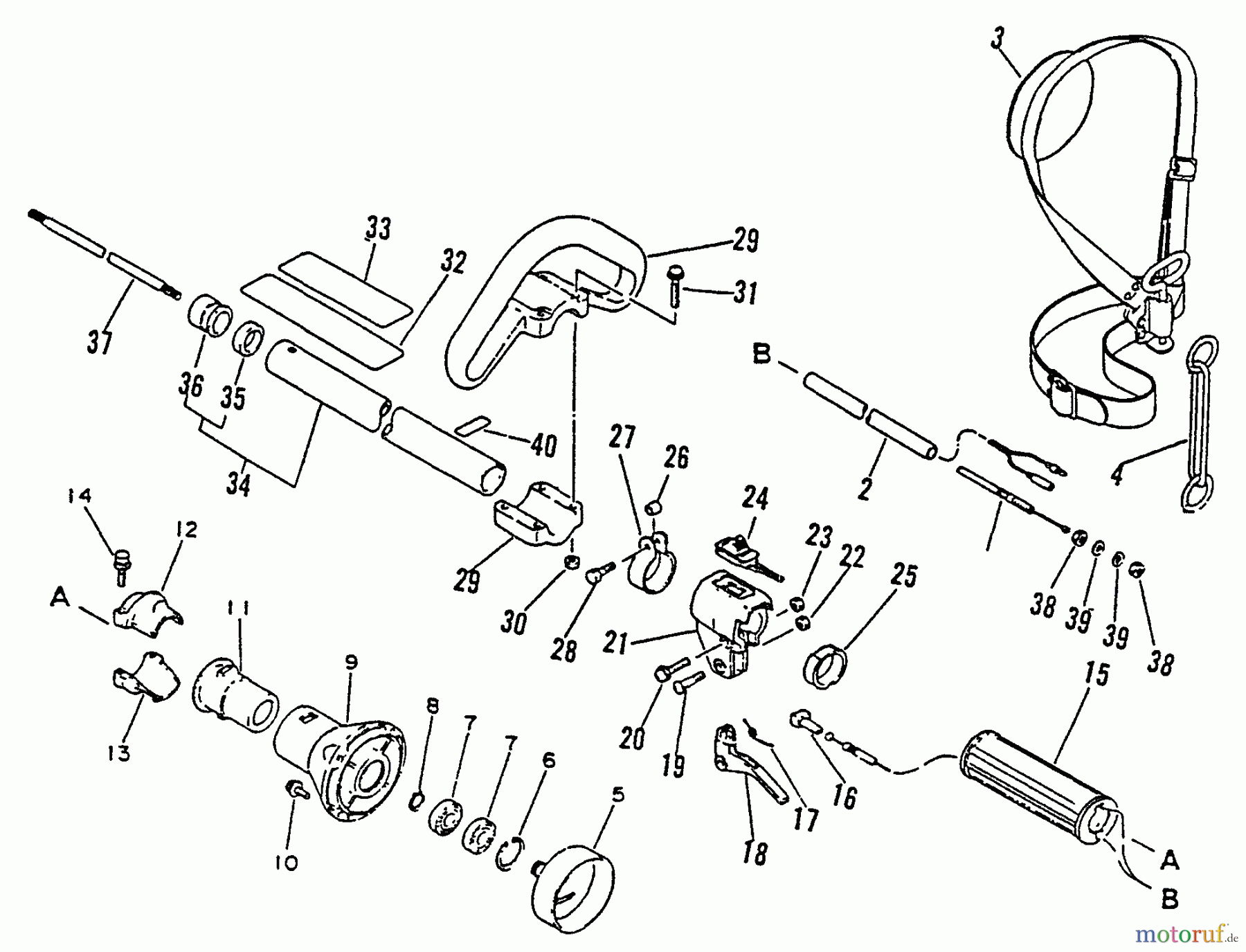

Echo SRM-3000 - String Trimmer, S/N:027001 - 034000 Driveshaft, Throttle, Stop Switch, Handles, Clutch Housing, Harness Ricambi

Driveshaft, Throttle, Stop Switch, Handles, Clutch Housing, Harness SRM-3000 - Echo String Trimmer, S/N:027001 - 034000

Posizione	Articolo numero	Descrizione
1	1617800140930
2	1617812740930
3	16-301000-24330	Tragegurt
4	16-301305-24330	Halterung SRMF-3, SRM-2010/
5	16-175005-40430	Kupplungstrommel SRM-310E
6	16-900702-00028	Seegerring, innen, 28mm
7	16-900802-06001	Kugellager
8	16-900701-00012	Seegerring außen 12mm
9	1661020549730
10	16-900242-05016	Schraube
11	16-610910-40430	Gummilager
12	16-610922-40430	Halter SRM-3800, SRM-4600
13	16-610923-40430	Halter
14	16-900142-05025	Schraube HCA-2400, PAS-2400,
15	1699999999999
16	16-178048-05630	Halterung RM-310, SRM-200AE,
17	16-178043-06930	Feder RM-310, SRM-200AE, SRM-
18	16-C450-000070	Feder, Gasgriff CS-2600
19	16-178110-05330	Schraube
20	16-900242-05030	Schraube
21	1617802449730
22	16-900560-00005	Mutter M5, selbstsichernd (10)
23	16-900500-00005	Mutter PPT-300ES/T-226 EDR-
24	16A440000280
25	1617807649730
26	16-699012-03330	Distanzscheibe SRMF-3, HCA-
27	16-301207-07530	Halterung
28	16-900100-05018	Schraube
29	16-351201-06930	Zsb. Griff SRM-343SL, SRM-3550
30	16-900500-00005	Mutter PPT-300ES/T-226 EDR-
31	16-900242-05035	Schraube SRM 4000 L/ 5000 L
32	1689016049630
33	1689016052730
34	1661020441030
35	16-610112-04930	Ring Produktion eingestellt
36	16-610105-04930	Antriebsstück Produktion
37	16-610011-06230	Antriebswelle SRM-3150, 4600
38	16-900502-00006	Mutter SRMF-340 6 (3N)
39	16-900600-00006	Scheibe
40	16-890152-04930	Aufkleber
