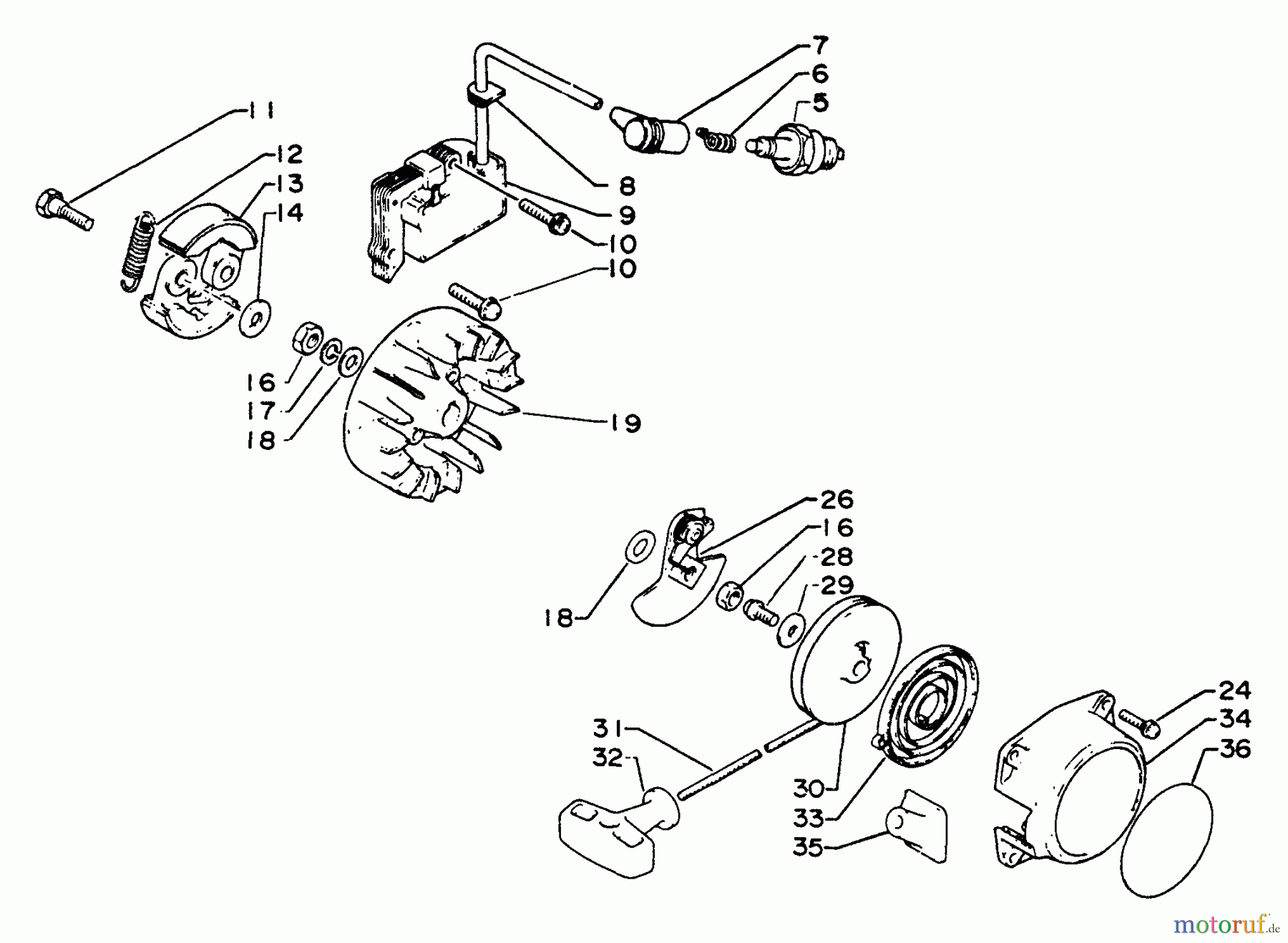

Echo SRM-250E - String Trimmer Clutch, Ignition, Starter Ricambi

Clutch, Ignition, Starter SRM-250E - Echo String Trimmer

Echo Trimmer, Faden / Bürste SRM-250E - Echo String Trimmer Clutch, Ignition, Starter
PosizioneArticolo numeroDescrizione
5 16-159010-10630Zündkerze
6 16-159011-03432Kontaktfeder CS-2600/4200/PB-
7 16-159012-03433Zündkerzenkappe, Gummi PPT-
8 16-152112-05730Buchse Produktion eingestellt
9 1699999999999
10 16-900242-05022Schraube CS-2600
11 16-175046-22332Ausrückbolzen RMA-2530/SRM-
12 16-175018-05535Kupplungsfeder SRM-2655
13 16-175009-05532Kupplungsschuh
14 16-175048-05530Scheibe SRM-320/350/SHR-170SI/
16 16-900502-00008Mutter EA-410
17 16-900605-00008Scheibe
18 16-900600-00008Scheibe
19 16-156801-22330Lüfterrad
24 16-900242-04012Schraube CS-2600
26 16-177305-04920Klaue SRM-200BE
26 16-177200-22333Starter KPL SRM-250E
28 16-900242-04010Schraube EA-410
29 16-177214-20430Scheibe
30 16-177215-04920Seilscheibe SRM-200AE, SRM-
31 16-177226-06530Starterseil CS-280EG/330EVL,
32 16-177228-06530Startergriff ES-2100/2400/HC-
33 16-177220-06530Starterfeder PB-46LN, PB-6000
34 16-177209-22331Startergehäuse
35 16-177227-22333Seilführung
36 1689011240930
