Engine, Crankcase, Fan Housing, Cover SRM-2502 - Echo String Trimmer, S/N:0010201 - 0025000

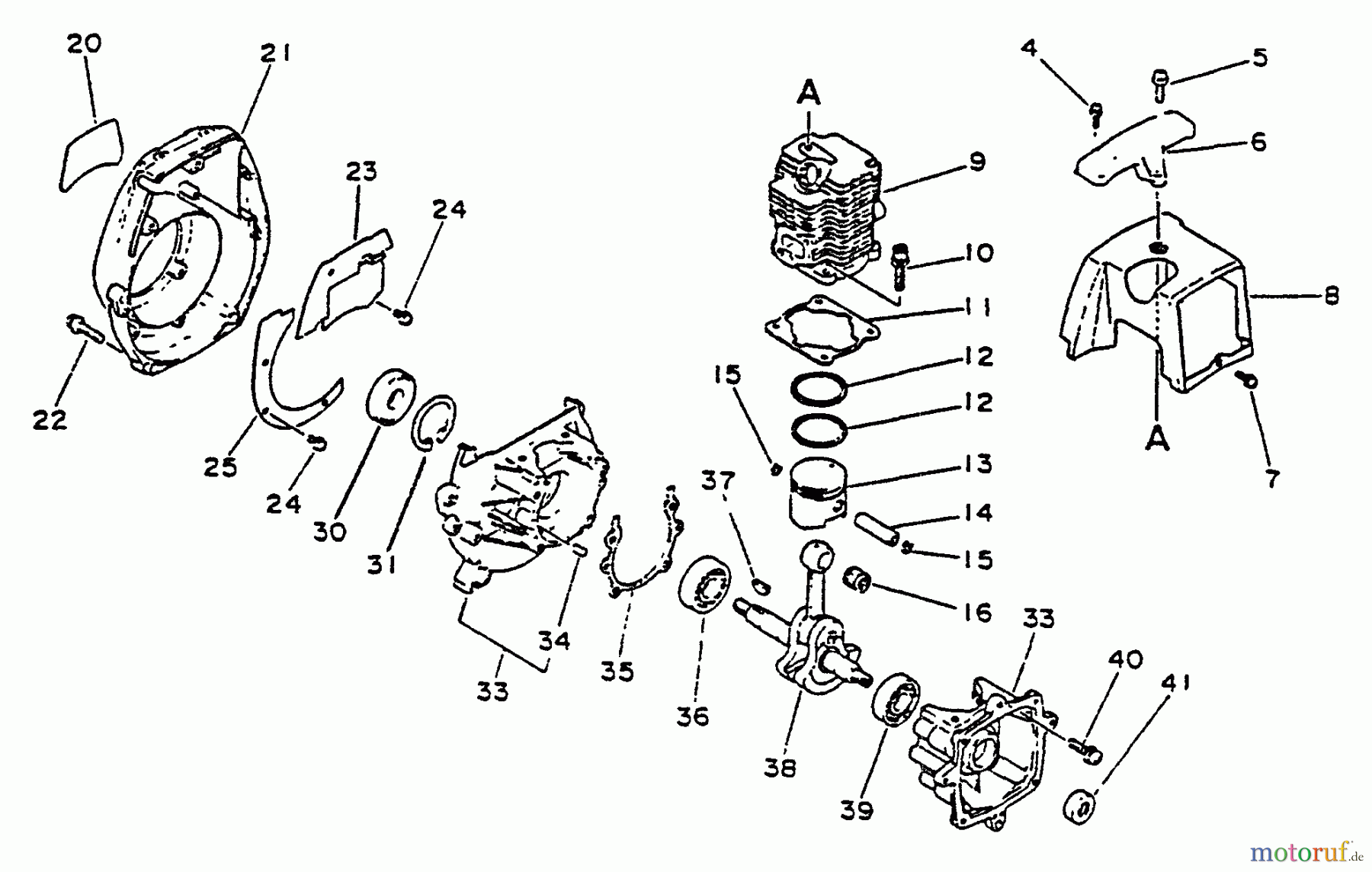

Echo Trimmer, Faden / Bürste SRM-2502 - Echo String Trimmer, S/N:0010201 - 0025000 Engine, Crankcase, Fan Housing, Cover
PosizioneArticolo numeroDescrizione
4 16-900238-04014Schraube 4x14
5 16-900238-05016Schraube 5*16
6 1615990540930
7 16-900238-04010Schraube M4 x 10 ES-2400,PB-
8 1610151449330
9 16-101011-22330Zylinder SRM-250
10 16-900162-05020Schraube M5x20 PB-6000/-46LN/-
11 1616
12 16-A101-000000Kolbenring GT-2150, EDR-2100
13 16-100000-22330Kolben kpl. SRM-250
14 16-100013-22330Kolbenbolzen CS-2600
15 16-100015-04630Sicherungsring(Eisen) CS-2600/
16 16-V553-000040Nadellager CS-350t/-3501/RMA-
20 1689011549330
21 1610151440930
22 16-900238-05020Schraube 5x20
23 1610153440930
24 1690023504005
25 1610154140930
30 16-100212-03930Simmerring 12x32x5.5 / PPT-
31 1690020200032
33 16-100200-22331Kurbelgehäuse
34 16-V622-000020Stift
35 1616
36 16-94035-36201Kugellager EA-410/SHR-170SI
37 16-100142-00310Polradkeil
38 1610010027830
39 16-900800-36001Kugellager,NSK (Nipppon
40 16-900238-05025Schraube 5x25
41 16-100213-05530Simmerring SRM-320/350/RM-
1688900027231
