Echo SRM-2501 - String Trimmer, S/N:098241 - 999999 Clutch Housing, Driveshaft, Handles, Ignition Switch, Throttle Ricambi

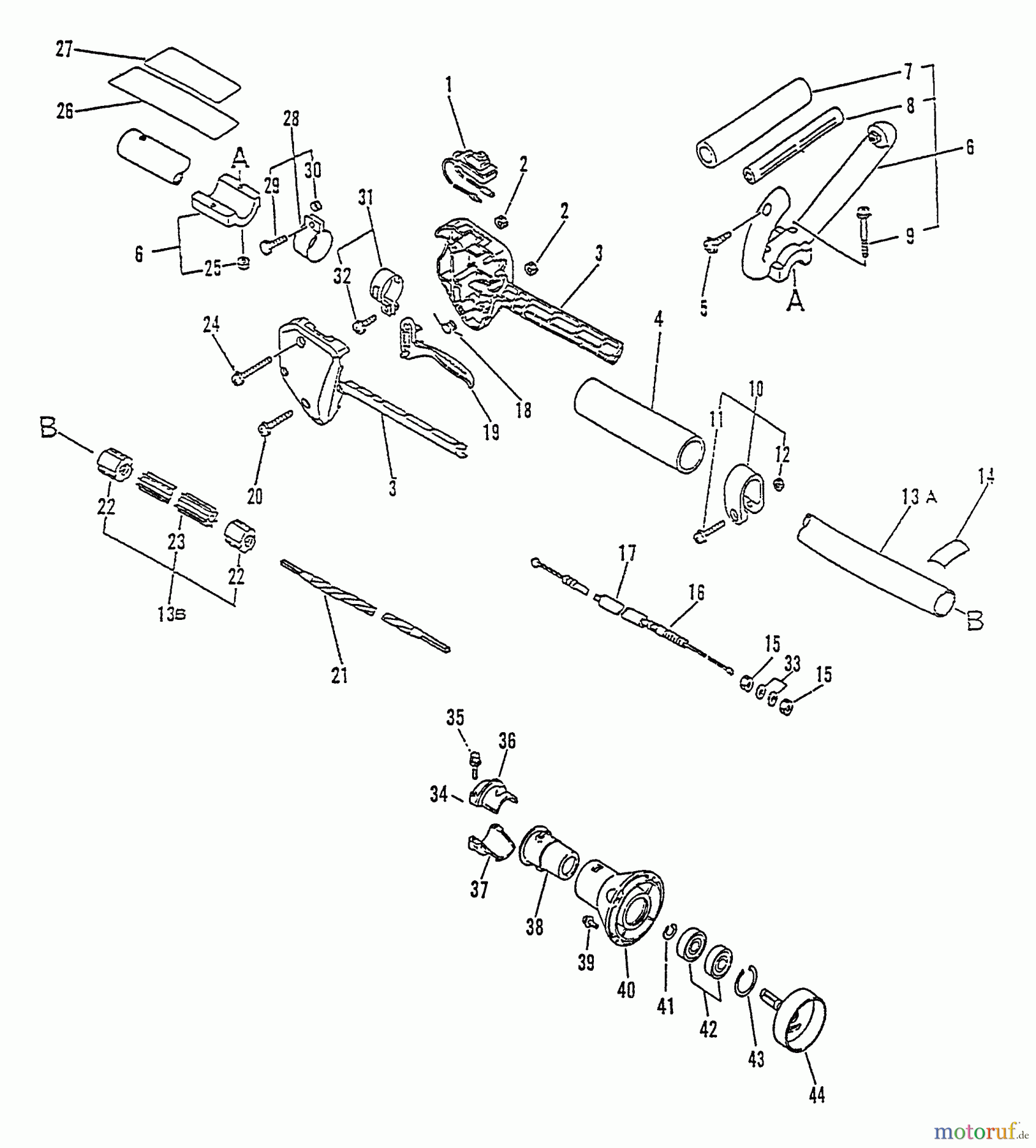

Clutch Housing, Driveshaft, Handles, Ignition Switch, Throttle SRM-2501 - Echo String Trimmer, S/N:098241 - 999999

Echo Trimmer, Faden / Bürste SRM-2501 - Echo String Trimmer, S/N:098241 - 999999 Clutch Housing, Driveshaft, Handles, Ignition Switch, Throttle
PosizioneArticolo numeroDescrizione
1 16A440000280
2 16-900500-00005Mutter PPT-300ES/T-226 EDR-
3 16-178003-52130Plastikgehäuse, Gasgriff o.
4 16-351213-52130Handgriffgummi HCA-2400 HCA-
5 16-900246-05030Schraube 5x30 (10), SRM-2100SB
6 1635120152130
7 16-351213-51730Griffpolster SRM-2100SB
8 16-351210-51730Griff SRM-2100SB
9 1690024206035
10 16-610272-52130Schelle HCA-2500, PAS-2400,
11 16-900242-05030Schraube
12 16-900500-00005Mutter PPT-300ES/T-226 EDR-
13 16-610609-44730Gestänge
14 16-890152-04930Aufkleber
15 16-900502-00006Mutter SRMF-340 6 (3N)
16 16-178001-51030Gaszug SRM-2015L
17 1617812751030
18 16-178043-42230Feder SRM-4000L/SRM-5000L
19 16-178010-52130Gashebel SRM-5000 SRM-4000,
20 Echo Schraube CS-3500, HCA-2500,16-900242-05025Schraube CS-3500, HCA-2500,
21 16-C506-000390Antreibswelle flexibel C-225S
22 16-610246-44730Führung HCA-2400
23 16C507000260
24 16-900242-05035Schraube SRM 4000 L/ 5000 L
25 16-900500-00006Mutter HC-2400, HCR-1500, PB-
26 1689016044730
27 1689016049630
28 16-301207-08930Ring HCA-2500, SRM-2010/2450/
29 16-900100-05018Schraube
30 16-699012-03330Distanzscheibe SRMF-3, HCA-
31 16-301200-29431Aufhänger
32 16-900242-05014Schraube(Eisen) CS-3500, SRM
33 16-900600-00006Scheibe
34 16-610903-27432Gestängehalterung
35 16-900142-05025Schraube HCA-2400, PAS-2400,
36 16-610922-27432Halter HCA-2410
37 16-610923-27432Halter
38 16-610910-27832Gummilager SRM 2450
39 16-900238-05016Schraube 5*16
40 1661022349230
41 16-900701-00012Seegerring außen 12mm
42 16-900802-06001Kugellager
43 16-900702-00028Seegerring, innen, 28mm
44 1617500551730
