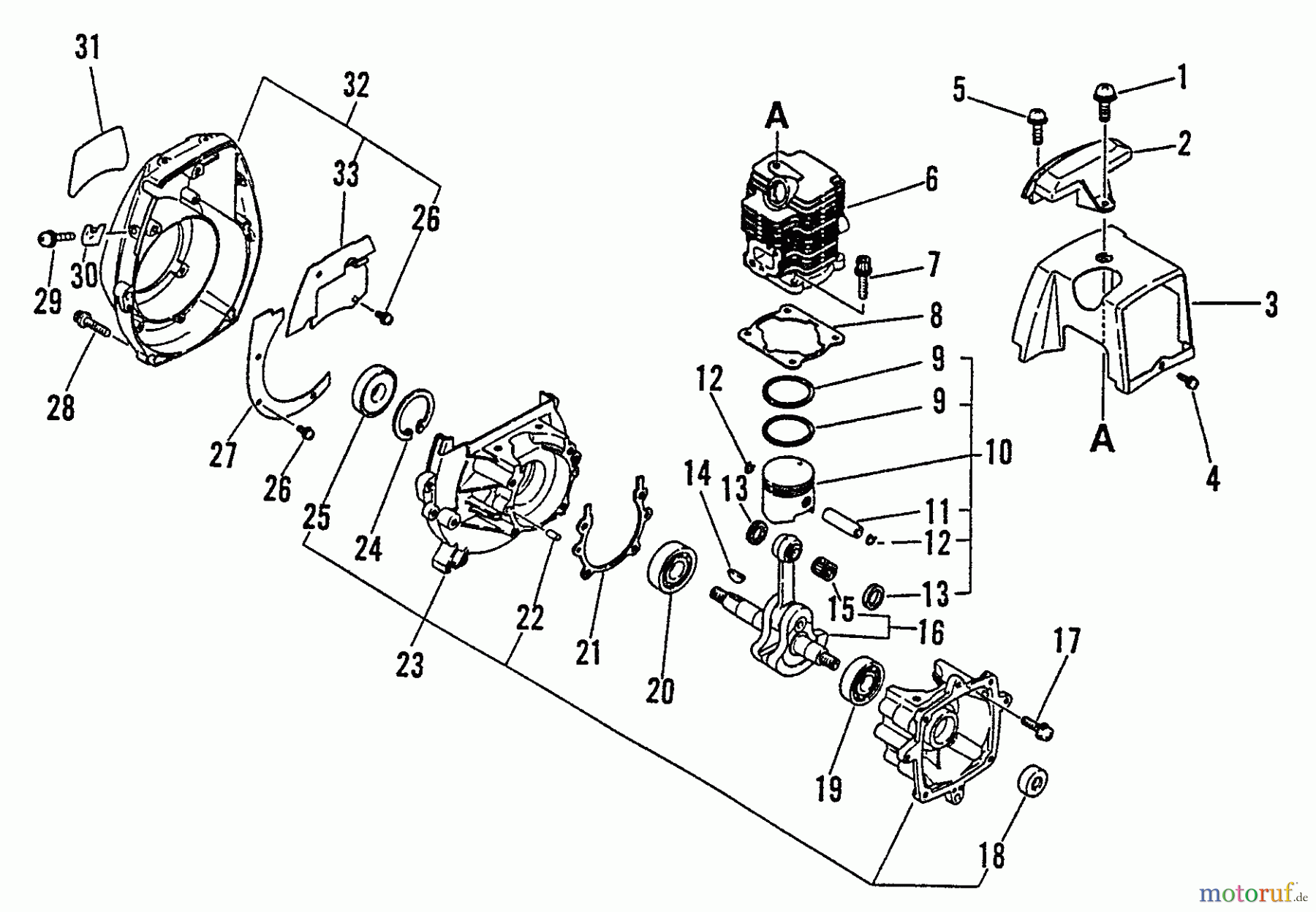

Echo SRM-2501 - String Trimmer, S/N:0043001 - 0061968 Engine, Crankcase, Fan Housing, Cover Ricambi

Engine, Crankcase, Fan Housing, Cover SRM-2501 - Echo String Trimmer, S/N:0043001 - 0061968

Echo Trimmer, Faden / Bürste SRM-2501 - Echo String Trimmer, S/N:0043001 - 0061968 Engine, Crankcase, Fan Housing, Cover
PosizioneArticolo numeroDescrizione
1 16-900238-05016Schraube 5*16
2 1615990540930
3 1610151449330
4 16-900238-04010Schraube M4 x 10 ES-2400,PB-
5 16-900238-04014Schraube 4x14
6 16-101011-22330Zylinder SRM-250
7 16-900162-05020Schraube M5x20 PB-6000/-46LN/-
8 16-101010-22331Dichtung, Papier Produktion
9 16-A101-000000Kolbenring GT-2150, EDR-2100
10 1699999999999
11 16-100013-11520Kolbenbolzen SHR-170SI/T-226
12 16-100015-04630Sicherungsring(Eisen) CS-2600/
13 16-100014-11520Distanzring(Eisen) SHR-170Si/
14 16-100142-00310Polradkeil
15 16-V553-000010Nadellager CS-2600
16 16-100104-51230Kurbelwelle Produktion
17 16-900238-05025Schraube 5x25
18 16-100213-05530Simmerring SRM-320/350/RM-
19 16-900800-36001Kugellager,NSK (Nipppon
20 16-94035-36201Kugellager EA-410/SHR-170SI
21 1616
22 16-V622-000020Stift
23 16-100204-22330Kurbelgehäuse kpl. RMA-2530
24 16-900702-00032Seegerring, innen, 32mm
25 16-100212-03930Simmerring 12x32x5.5 / PPT-
26 16-900238-04008Schraube
27 1610154140930
28 16-900238-05020Schraube 5x20
29 16-900238-04010Schraube M4 x 10 ES-2400,PB-
30 1617812151230
31 1689011249330
32 1610150351730
33 1610153440930
1688900051230
