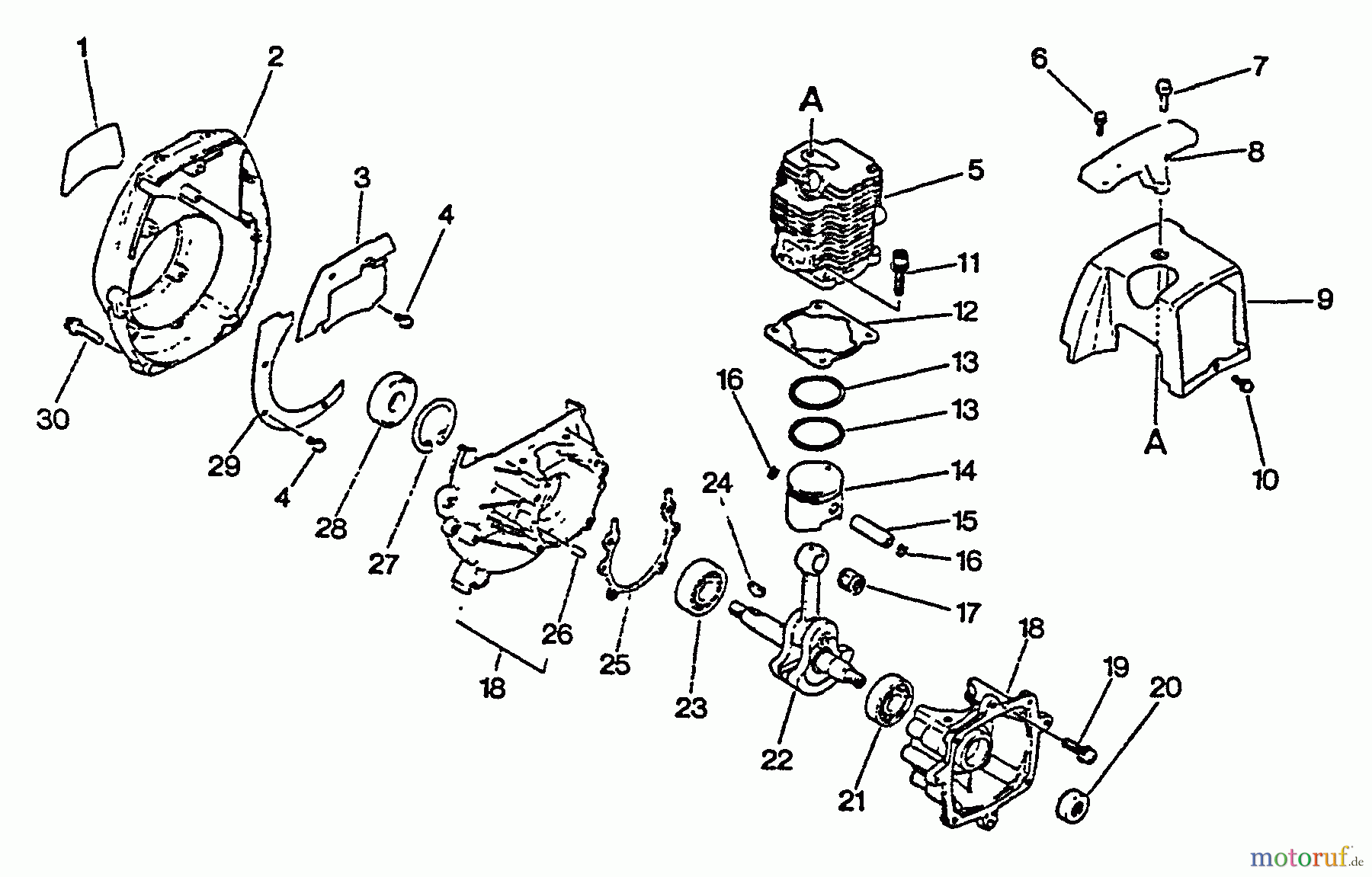

Echo SRM-2501 - String Trimmer, S/N:0025001 - 0043000 Engine, Crankcase, Fan Housing, Cover Ricambi

Engine, Crankcase, Fan Housing, Cover SRM-2501 - Echo String Trimmer, S/N:0025001 - 0043000

Echo Trimmer, Faden / Bürste SRM-2501 - Echo String Trimmer, S/N:0025001 - 0043000 Engine, Crankcase, Fan Housing, Cover
PosizioneArticolo numeroDescrizione
1 1689011249330
2 1610151149330
3 1610153440930
4 16-900238-04008Schraube
5 16-101011-22330Zylinder SRM-250
6 16-900238-04014Schraube 4x14
7 16-900238-05016Schraube 5*16
8 1615990540930
9 1610151449330
10 16-900238-04010Schraube M4 x 10 ES-2400,PB-
11 16-900162-05020Schraube M5x20 PB-6000/-46LN/-
12 1616
13 16-A101-000000Kolbenring GT-2150, EDR-2100
14 16-100000-22330Kolben kpl. SRM-250
15 16-100013-22330Kolbenbolzen CS-2600
16 16-100015-04630Sicherungsring(Eisen) CS-2600/
17 16-V553-000040Nadellager CS-350t/-3501/RMA-
18 16-100200-22331Kurbelgehäuse
19 16-900238-05025Schraube 5x25
20 16-100213-05530Simmerring SRM-320/350/RM-
21 16-900800-36001Kugellager,NSK (Nipppon
22 1610010027830
23 16-94035-36201Kugellager EA-410/SHR-170SI
24 16-100142-00310Polradkeil
25 1616
26 16-V622-000020Stift
27 16-900702-00032Seegerring, innen, 32mm
28 16-100212-03930Simmerring 12x32x5.5 / PPT-
29 1610154140930
30 16-900238-05020Schraube 5x20
