Echo SRM-2501 - String Trimmer, S/N:0025001 - 0043000 Driveshaft, Handles, Throttle, Stop Switch, Clutch Housing Ricambi

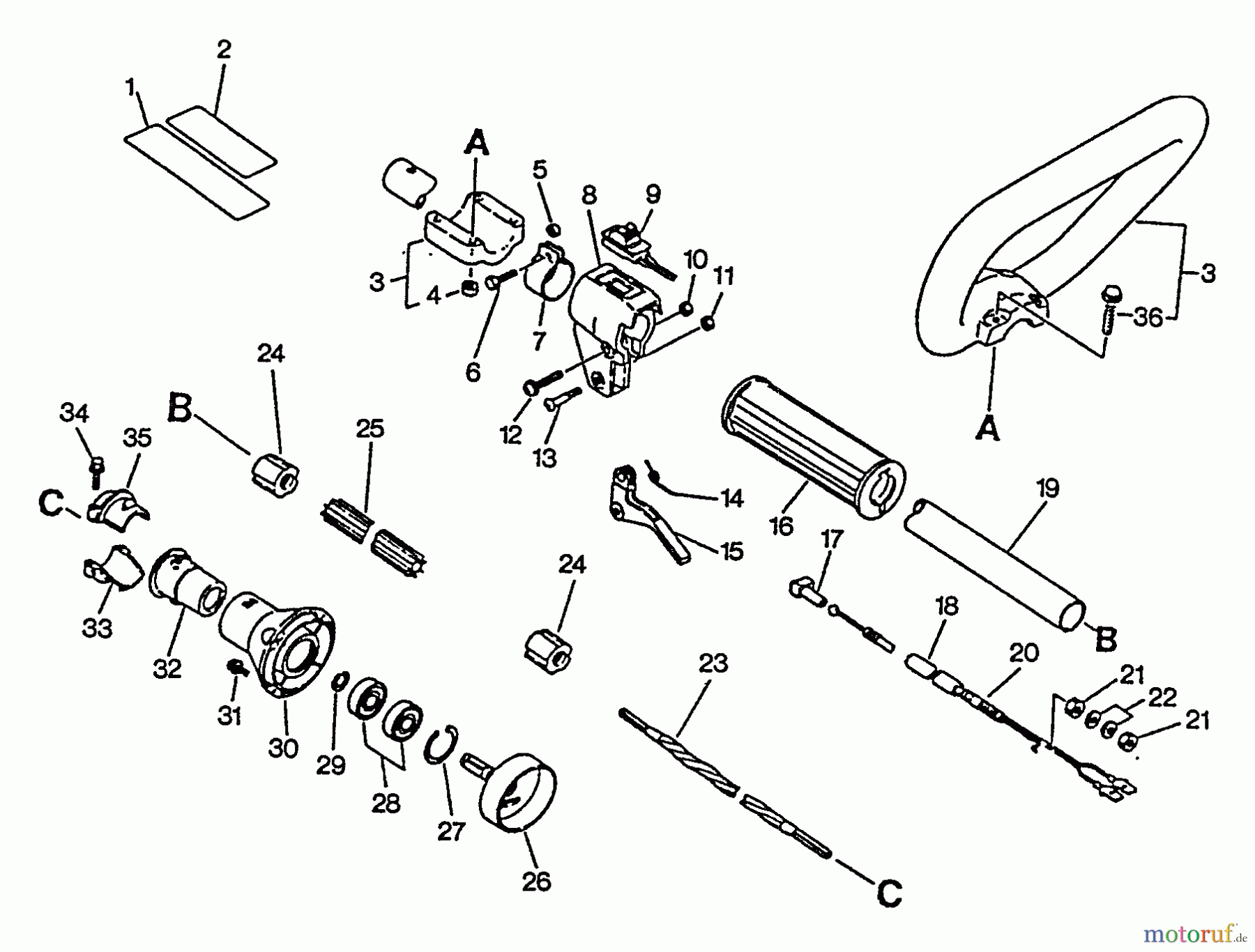

Driveshaft, Handles, Throttle, Stop Switch, Clutch Housing SRM-2501 - Echo String Trimmer, S/N:0025001 - 0043000

Echo Trimmer, Faden / Bürste SRM-2501 - Echo String Trimmer, S/N:0025001 - 0043000 Driveshaft, Handles, Throttle, Stop Switch, Clutch Housing
PosizioneArticolo numeroDescrizione
1 1689016044730
1 1699999999999
2 1689017709130
2 1689031744730
3 16-351201-51730Handgriff kpl. (Rund) SRM
4 16-900500-00005Mutter PPT-300ES/T-226 EDR-
5 16-699012-03330Distanzscheibe SRMF-3, HCA-
6 16-900100-05018Schraube
7 16-301207-08930Ring HCA-2500, SRM-2010/2450/
8 1617802449230
9 16A440000280
10 16-900500-00005Mutter PPT-300ES/T-226 EDR-
11 16-900560-00005Mutter M5, selbstsichernd (10)
12 16-900242-05030Schraube
13 16-178110-05330Schraube
14 16-178043-06930Feder RM-310, SRM-200AE, SRM-
15 16-C450-000070Feder, Gasgriff CS-2600
16 1635101244730
17 16-178048-05630Halterung RM-310, SRM-200AE,
18 1617812740930
19 16-610609-44730Gestänge
20 1617800140930
21 16-900502-00006Mutter SRMF-340 6 (3N)
22 16-900600-00006Scheibe
23 16-C506-000390Antreibswelle flexibel C-225S
24 16-610246-44730Führung HCA-2400
25 16C507000260
26 1617500551730
27 16-900702-00028Seegerring, innen, 28mm
28 169405106001
29 16-900701-00012Seegerring außen 12mm
30 1661022349230
31 16-900238-05016Schraube 5*16
32 16-610910-27832Gummilager SRM 2450
33 16-610923-27432Halter
34 16-900142-05025Schraube HCA-2400, PAS-2400,
35 16-610922-27432Halter HCA-2410
36 16-900242-05035Schraube SRM 4000 L/ 5000 L
