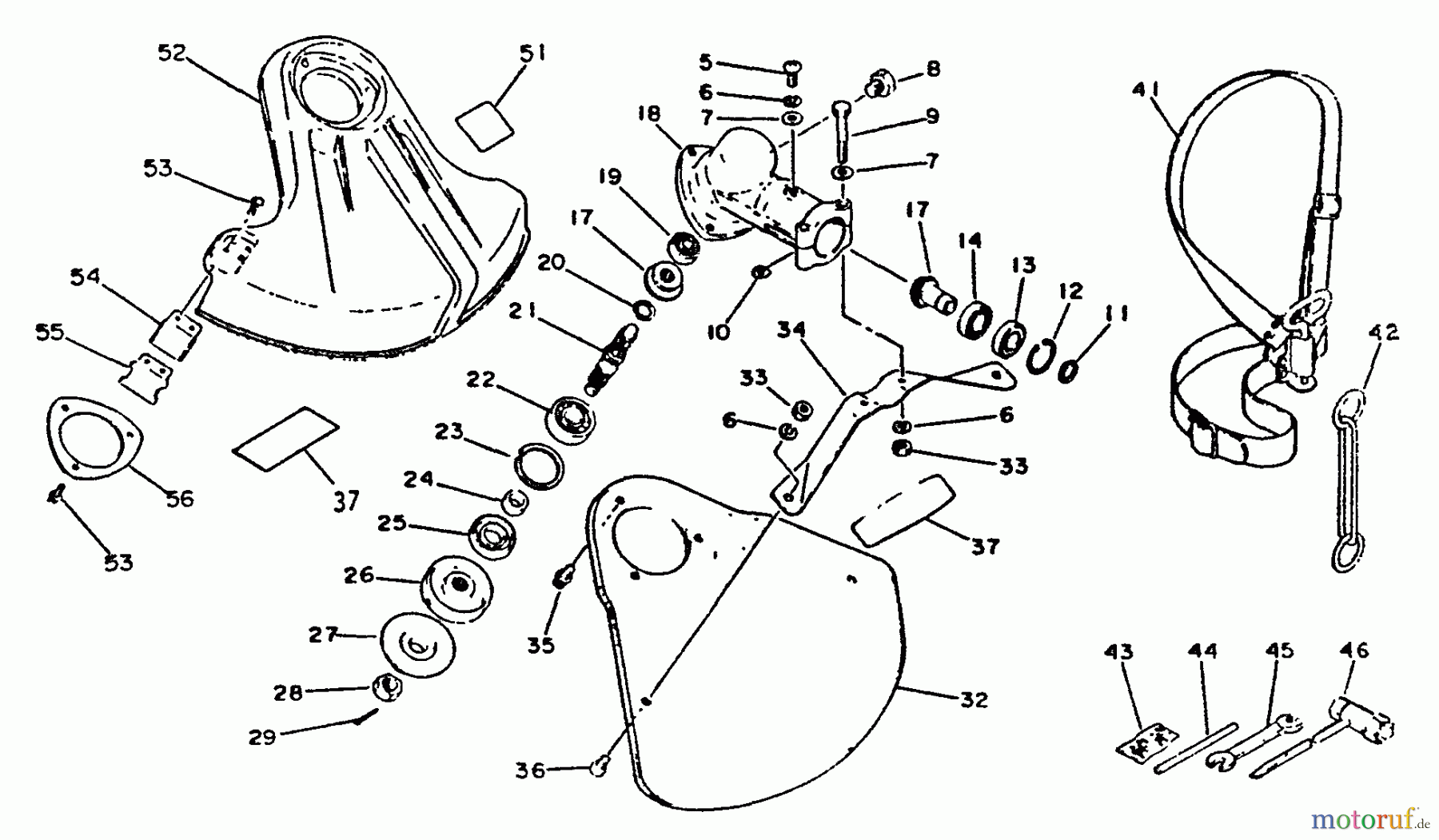

Echo SRM-2501 - String Trimmer, S/N:001001 - 0010200 Gear Case, Shield, Harness, Tools Ricambi

Gear Case, Shield, Harness, Tools SRM-2501 - Echo String Trimmer, S/N:001001 - 0010200

Posizione	Articolo numero	Descrizione
	1661040240932
5	16-900220-05010	Schraube
6	16-900605-00005	Scheibe PB-250/EC-7600
7	16-900600-00005	Scheibe PB-500/452GS/DH2200ST
8	16-900100-08008	Schraube(Eisen) (10)
9	16-900100-05035	Schraube
10	16-610239-04130	Scheibe
11	16-900706-00012	Haltering PPT-300ES
12	16-900702-00022	Seegerring, innen, 22mm HCA-
13	16-900858-06900	Kugellager,NSK (Nippon Seikkon
14	16-900855-06900	Kugellager, NSK (Nippon
17	16-610300-44830	Getriebesatz Anbau-
18	1661046027431
19	16-900800-00609	Kugellager PB-46LN
20	16-900706-00010	Haltering
21	16-610360-08931	Antriebsstück
22	16-94035-36201	Kugellager EA-410/SHR-170SI
23	16-900702-00032	Seegerring, innen, 32mm
24	16-610315-07130	Hülse RM-380, SRM-3150/-3800
25	16-610413-07130	Simmering
26	16C535000160
27	16C535000150
28	16-900511-00010	Linksgewindemutter f. Messer-
29	16-900300-20022	Splint PAS-2400, RMA-2530, RM-
33	16-900500-00005	Mutter PPT-300ES/T-226 EDR-
32	1699999999999
34	1669901523431
35	16-900242-05010	Schraube PPT-300ES
36	16-900220-05008	Schraube
37	1689011848730
41	16-301000-50330	Tragegurt SRSA-2190
42	16-301305-24330	Halterung SRMF-3, SRM-2010/
43	16-898502-01130	Splint Pack a 10 Stck
44	16-897518-01131	Blockierwerkzeug
45	16-895112-00330	Gabelschlüssel PPT-300ES
46	16-X602-000020	Kombischlüssel PAS-2400/EA-410
51	1689017740730
51	1689035240830
52	1669900040831
53	16-900242-05016	Schraube
54	16-P021-006080	Fadenabschneider kpl. GT-2150
55	16-699212-23230	Schutz GT-2010
56	16-C552-000110	Halterung Anbau-
54	16-699016-44330	Abschneider Anbau-
