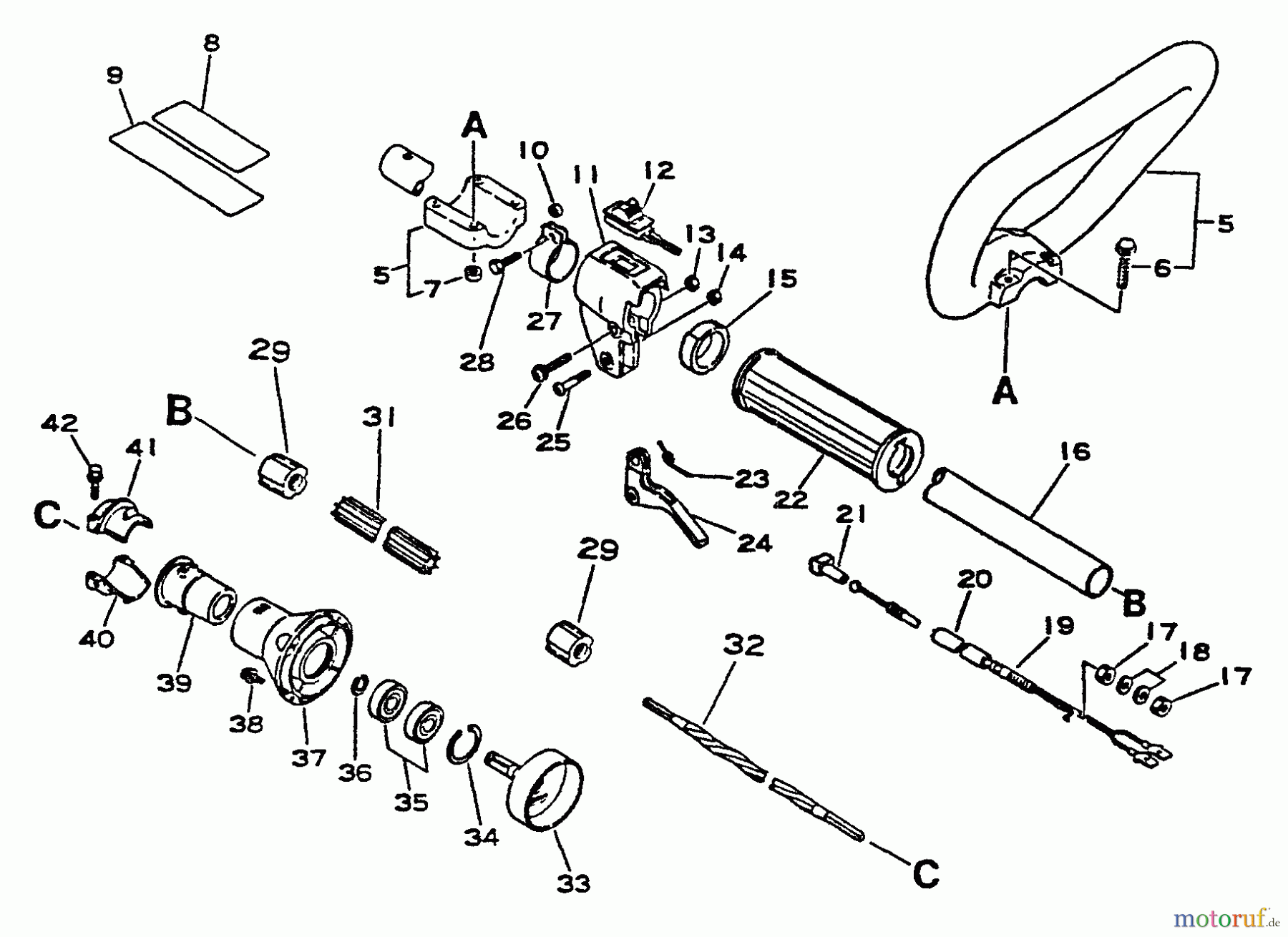

Echo SRM-2501 - String Trimmer, S/N:001001 - 0010200 Clutch Housing, Driveshaft, Handles, Ignition Switch, Throttle Ricambi

Clutch Housing, Driveshaft, Handles, Ignition Switch, Throttle SRM-2501 - Echo String Trimmer, S/N:001001 - 0010200

Echo Trimmer, Faden / Bürste SRM-2501 - Echo String Trimmer, S/N:001001 - 0010200 Clutch Housing, Driveshaft, Handles, Ignition Switch, Throttle
PosizioneArticolo numeroDescrizione
5 16-351201-51730Handgriff kpl. (Rund) SRM
6 16-900242-05035Schraube SRM 4000 L/ 5000 L
7 16-900500-00005Mutter PPT-300ES/T-226 EDR-
8 1689017709130
8 1699999999999
9 1689016044730
9 1689033124330
10 16-699012-03330Distanzscheibe SRMF-3, HCA-
11 1617802449230
12 16-163400-49330Stopschalter SRM-2655L
13 16-900500-00005Mutter PPT-300ES/T-226 EDR-
14 16-900560-00005Mutter M5, selbstsichernd (10)
15 1616
16 16-610609-44730Gestänge
29 16-610246-44730Führung HCA-2400
31 16C507000260
17 16-900502-00006Mutter SRMF-340 6 (3N)
18 16-900600-00006Scheibe
19 1617800140930
20 1617812740930
21 16-178048-05630Halterung RM-310, SRM-200AE,
22 1635101244730
23 16-178043-06930Feder RM-310, SRM-200AE, SRM-
24 16C450000060
25 16-178110-05330Schraube
26 16-900242-05030Schraube
27 16-301207-08930Ring HCA-2500, SRM-2010/2450/
28 16-900100-05018Schraube
32 16-C506-000390Antreibswelle flexibel C-225S
33 1617500551730
34 16-900702-00028Seegerring, innen, 28mm
35 16-900802-06001Kugellager
36 16-900701-00012Seegerring außen 12mm
37 16-610223-44730Kupplungsgehäuse SRM 2450
38 16-900238-05016Schraube 5*16
39 16-610910-27832Gummilager SRM 2450
40 16-610923-27432Halter
41 16-610922-27432Halter HCA-2410
42 16-900142-05025Schraube HCA-2400, PAS-2400,
