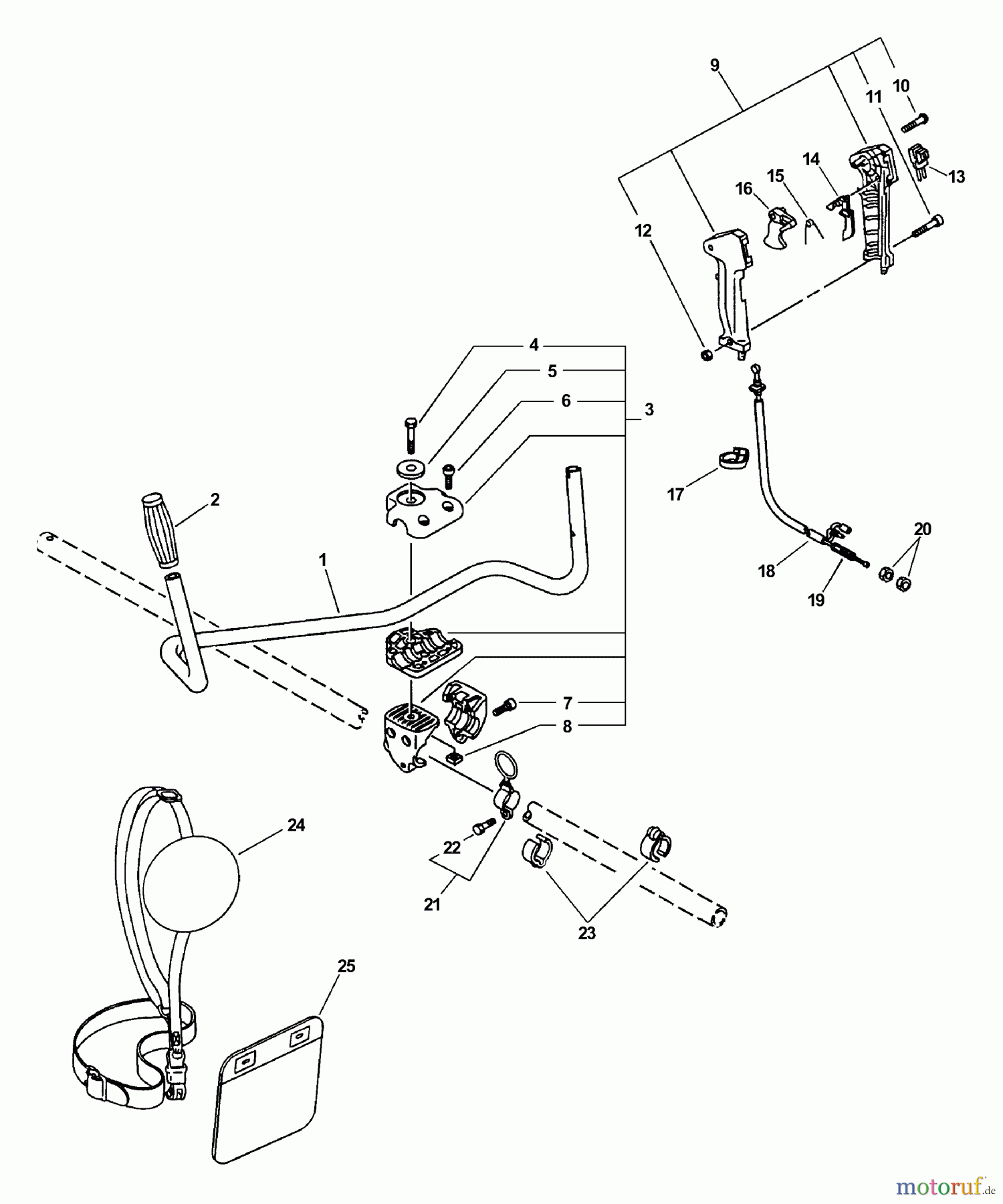

Echo SRM-2410 - String Trimmer (Type 1E) Driveshaft, Handles, Throttle, Stop Switch, Harness S/N: 503954 - 599999 Ricambi

Driveshaft, Handles, Throttle, Stop Switch, Harness S/N: 503954 - 599999 SRM-2410 - Echo String Trimmer (Type 1E)

Posizione	Articolo numero	Descrizione
1	16-C400-000000	U-Griff SRM-2455, SRM-2015
2	16-351311-02330	Griff SRM-2015,2305,2455,2655,
3	16P021012791
4	16-351421-52130	Schraube SRMF-3, SRM-2305/
5	16-605014-54230	Scheibe SRMF-3, SRM-2305/2455/
6	16-900162-05020	Schraube M5x20 PB-6000/-46LN/-
7	16-900162-05030	Schraube CS-3500,-3501, SRM-
8	16-900565-50008	Mutter SRM-2655
9	16-351102-47530	Hint. Griff SRMF-3, CLS-4610,
10	16-900246-03025	Schraube 3 x 25
11	16-900220-05030	Schraube SRMF-3, HC-2400, CLS-
12	16-900500-00005	Mutter PPT-300ES/T-226 EDR-
13	16A440000310
14	16-178012-05960	Gashebelsperre HC-2300 HCA-
15	16-178013-35631	Feder SRM-2655/2010, HC-2410/
16	16-178010-05960	Gashebel HC-2300 HCA/2410
17	16-159112-09961	Clip SRM-250/320/350/4000/
18	16-V475-000000	Tülle SRM-2655
19	16-178001-47530	Gaszug SRM-2010/2450/3150/3155
19	1617800156430
20	16-900503-00006	Mutter (3N 6x0,75)
21	16-C646-000060	Ring für Gurtbefestigung PAS-
22	16-900100-05012	Schraube(Eisen) M5x12 SRM-
23	16-224924-52130	Halteclip HCA-2410, SRM-250
24	16C062000070
25	16-C652-000000	Schutzpolster / SRM-2010
