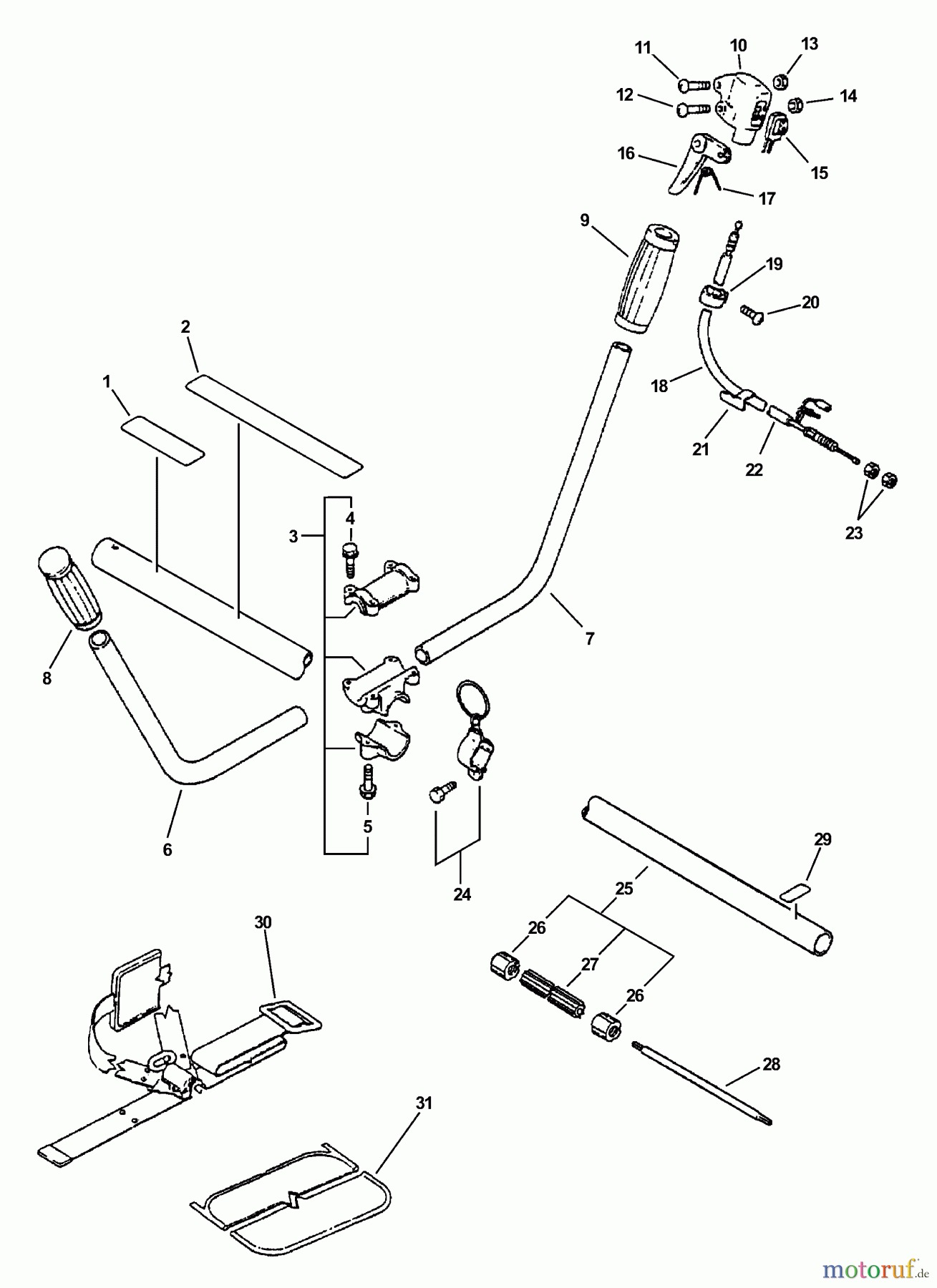

Driveshaft, Handles, Throttle, Stop Switch, Harness S/N: 001001-503953 SRM-2410 - Echo String Trimmer (Type 1E)

Echo Trimmer, Faden / Bürste SRM-2410 - Echo String Trimmer (Type 1E) Driveshaft, Handles, Throttle, Stop Switch, Harness S/N: 001001-503953
PosizioneArticolo numeroDescrizione
1 1689017740630
2 1689016054130
3 16-P021-000460Griffhalter kpl.
4 16-900142-05025Schraube HCA-2400, PAS-2400,
5 16-900142-06030Schraube
6 16-351210-05530Griffrohr links SRM-3800
7 16-351010-05530Griff
8 16-351311-02330Griff SRM-2015,2305,2455,2655,
9 16-351315-22130Handgriff
10 16-178024-51830Halterung
11 16-900220-05025Schraube
12 16-178110-05330Schraube
13 16-900560-00005Mutter M5, selbstsichernd (10)
14 16-900500-00005Mutter PPT-300ES/T-226 EDR-
15 16A440000340
16 1617801006460
17 16-178043-05230Feder
18 16-178001-41330Gaszug
19 16-178106-05330Band
20 16-900220-05010Schraube
21 16-178111-04930Clip
22 16V475002270
23 16-900503-00006Mutter (3N 6x0,75)
24 16-C646-000060Ring für Gurtbefestigung PAS-
25 16-610609-44730Gestänge
26 16-610246-44730Führung HCA-2400
27 16C507000260
28 16-C506-000390Antreibswelle flexibel C-225S
29 16-890152-04930Aufkleber
30 16C062000070
31 16-C652-000000Schutzpolster / SRM-2010
