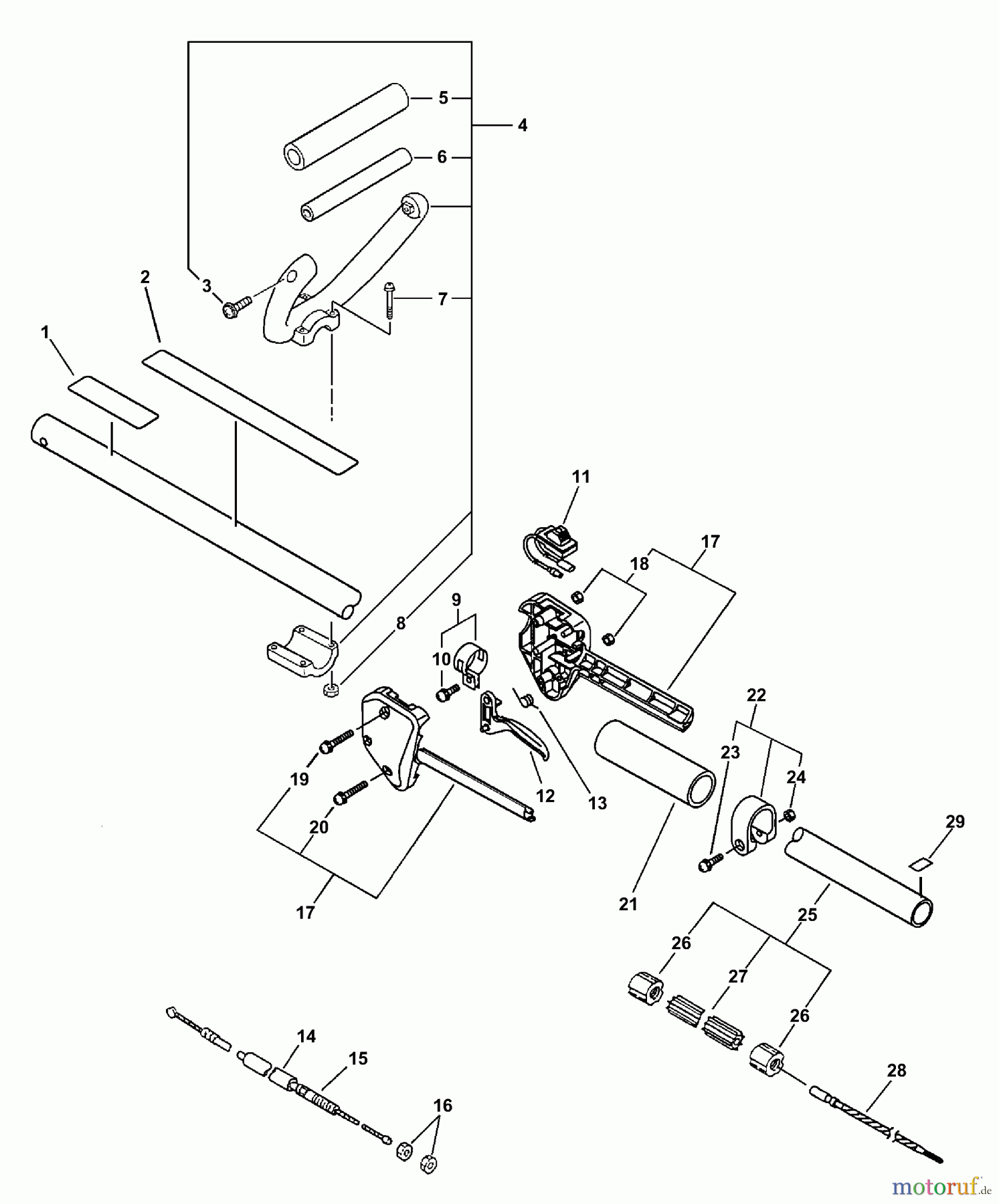

Echo SRM-2100 - String Trimmer, S/N:159491 - 999999 (Type 1) Handle, Ignition Switch, Throttle Cable, Driveshaft Ricambi

Handle, Ignition Switch, Throttle Cable, Driveshaft SRM-2100 - Echo String Trimmer, S/N:159491 - 999999 (Type 1)

Echo Trimmer, Faden / Bürste SRM-2100 - Echo String Trimmer, S/N:159491 - 999999 (Type 1) Handle, Ignition Switch, Throttle Cable, Driveshaft
PosizioneArticolo numeroDescrizione
1 1689016052730
2 1689016049630
3 16-900246-05030Schraube 5x30 (10), SRM-2100SB
4 1635120152130
5 16-351213-51730Griffpolster SRM-2100SB
6 16-351210-51730Griff SRM-2100SB
7 16-900242-05035Schraube SRM 4000 L/ 5000 L
8 16-900500-00005Mutter PPT-300ES/T-226 EDR-
9 16-301200-29431Aufhänger
10 16-900242-05014Schraube(Eisen) CS-3500, SRM
11 16-163401-55631Stop-Schalter PPT-2100,PPT-
12 16-178010-52130Gashebel SRM-5000 SRM-4000,
13 16-178043-42230Feder SRM-4000L/SRM-5000L
14 16-178127-06960Tülle
15 16-178001-44430Gaszug GT-2400/HCA-2400/SRM-
16 16-900502-00006Mutter SRMF-340 6 (3N)
17 16-178003-52130Plastikgehäuse, Gasgriff o.
18 16-900500-00005Mutter PPT-300ES/T-226 EDR-
19 16-900242-05035Schraube SRM 4000 L/ 5000 L
20 Echo Schraube CS-3500, HCA-2500,16-900242-05025Schraube CS-3500, HCA-2500,
21 16-351213-52130Handgriffgummi HCA-2400 HCA-
22 16-610272-52130Schelle HCA-2500, PAS-2400,
23 16-900242-05030Schraube
24 16-900500-00005Mutter PPT-300ES/T-226 EDR-
25 16-610609-44730Gestänge
26 16-610246-44730Führung HCA-2400
27 16C507000260
28 16-C506-000390Antreibswelle flexibel C-225S
29 16-890152-04930Aufkleber
