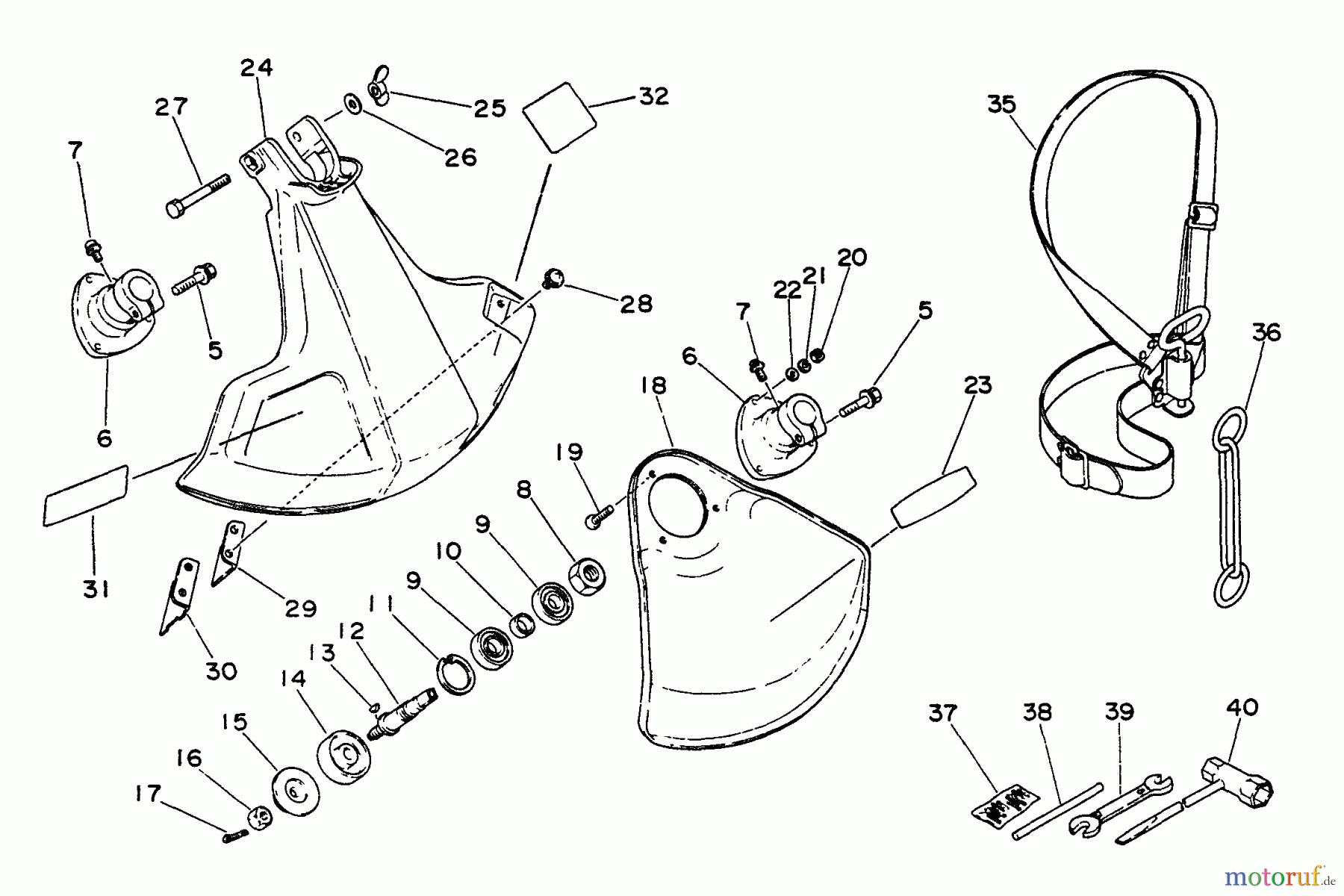

Shield, Gear Case, Harness, Tools SRM-2000 - Echo String Trimmer

Posizione		Articolo numero	Descrizione
6		1661040023330
5		16-900152-05025	Schraube 5x25 (10)
6		1699999999999
7		16-900242-04010	Schraube EA-410
8		16-900513-00012	Mutter
9		16-94042-06001	Kugellager PPT-2100/-2400/-
10		16-610315-06530	Hülse
11		16-900702-00028	Seegerring, innen, 28mm
12		1661031023330
13		16-610325-02730	Keil
14		16-610313-06530	Fixierplatte GT-2010
15		16-610314-06030	Druckplatte 20 mm SRM 2010
16		1661032023330
17		16-900300-20022	Splint PAS-2400, RMA-2530, RM-
18		1669901007330
19		16-900220-04018	Schraube
20		16-900500-00004	Mutter
21		16-900605-00004	Scheibe
22		16-900600-00004	Scheibe
23		1689013844330
24		1669900440630
25		16-900525-00006	Flügelmutter 6 (10)
26		16-900600-00006	Scheibe
27		1690010006050
28		16-900242-05016	Schraube
29		16-699016-23231	Messer
30		16-699212-23230	Schutz GT-2010
31		1689013840630
32		1689017740730
35		16-301000-24330	Tragegurt
36		16-301305-24330	Halterung SRMF-3, SRM-2010/
37		16-898502-01130	Splint Pack a 10 Stck
38		16-897518-01131	Blockierwerkzeug
39		16-895112-00330	Gabelschlüssel PPT-300ES
40		16-X602-000020	Kombischlüssel PAS-2400/EA-410
