Echo SRM-1501 - String Trimmer, S/N:0039001 - 0083386 Starter, Ignition, Stop Switch, Clutch Ricambi

Starter, Ignition, Stop Switch, Clutch SRM-1501 - Echo String Trimmer, S/N:0039001 - 0083386

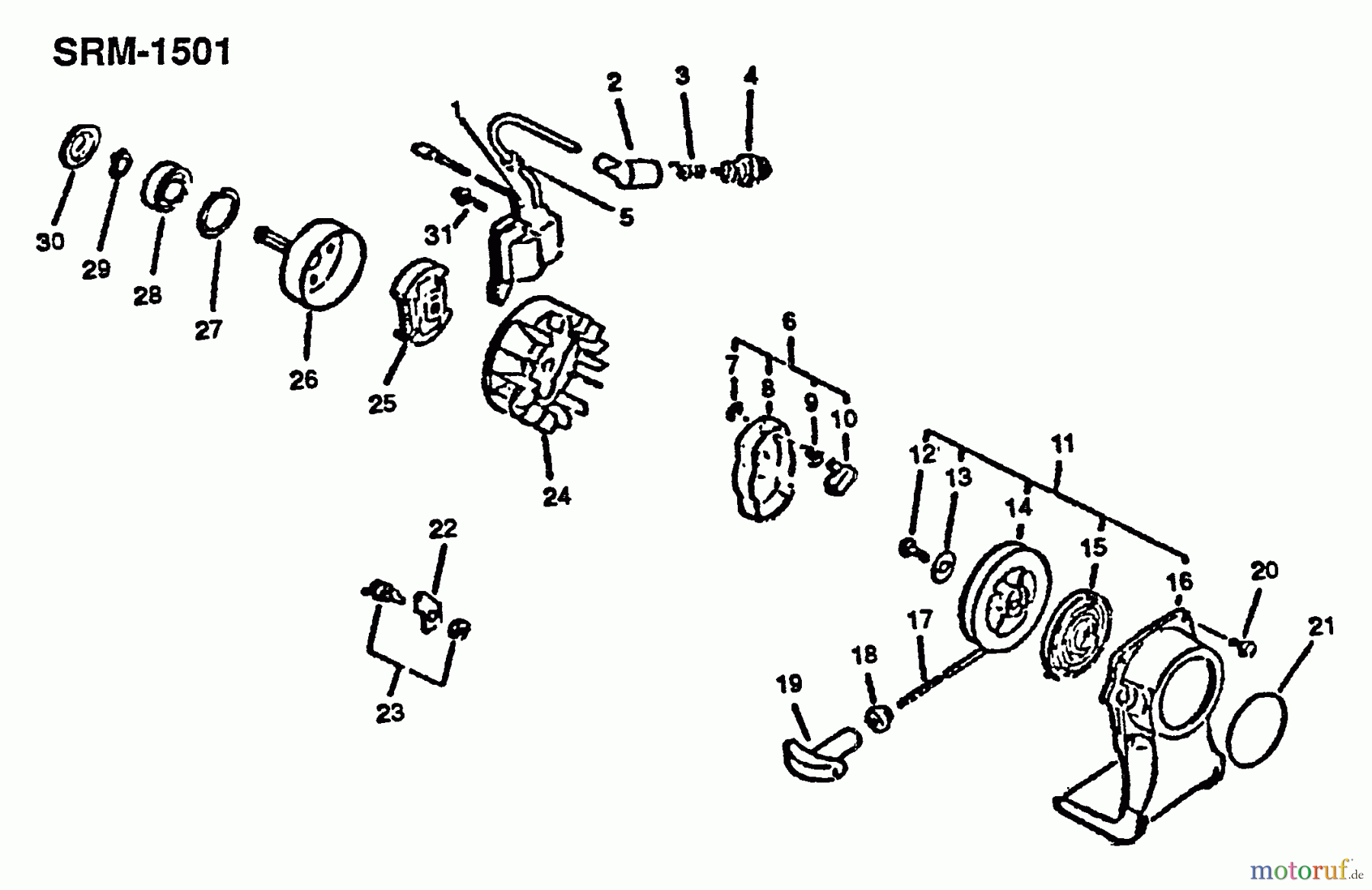

Echo Trimmer, Faden / Bürste SRM-1501 - Echo String Trimmer, S/N:0039001 - 0083386 Starter, Ignition, Stop Switch, Clutch
PosizioneArticolo numeroDescrizione
1 16-156601-44731Zündmodul SRM-2450/2010/_HC-
2 16-159012-01620Zündkerzenkappe SRM-2010, CS-
3 16-159011-03432Kontaktfeder CS-2600/4200/PB-
4 16-159010-10630Zündkerze
5 16-150112-44330Gummidichtung PPT-2100,PPT-
6 16-177202-44330Starterklinke ES-1000 ab Ser.-
7 16-900700-00004E-Ring, PB-6000 bis S.-Nr.:
8 16-177210-42030Halter
9 16-177234-12220Feder, Starterklinke RM-4000/
10 16-177218-42030Starterklinke
11 1617720044333
12 16-177236-40630Schraube PB-6000 bis S.-Nr.:
13 16-177214-42030Scheibe
14 16-177215-44430Seilscheibe SRM-2305/ES-2100/
15 Echo Starterfeder ES-2100/2400/HC-16-177220-42030Starterfeder ES-2100/2400/HC-
16 1617723244332
17 16-177226-05530Starterseil
18 16-177227-42030Seilführung ES-2100/2400/HC-
19 16-177228-06530Startergriff ES-2100/2400/HC-
20 16-900238-04016Schraube 4x16
21 16X502000190
22 16-163810-44330Schalterhalterung WP-1000
23 16-163400-03460Stop-Schalter ES-2000, HC-
24 16-156801-44731Polrad, Schwungmagetzünd. ES-
25 16-175000-42031Kupplung
26 16-175005-42030Kupplungstrommel PPT-2100/-
27 16-900702-00028Seegerring, innen, 28mm
28 16-94054-06201Kugellager
29 16-900701-00012Seegerring außen 12mm
30 16-175053-04920Ring
31 16-900238-04022Schraube
